Prime Line

Brake disc UV painted 09.A819.11

Save vehicle in the list

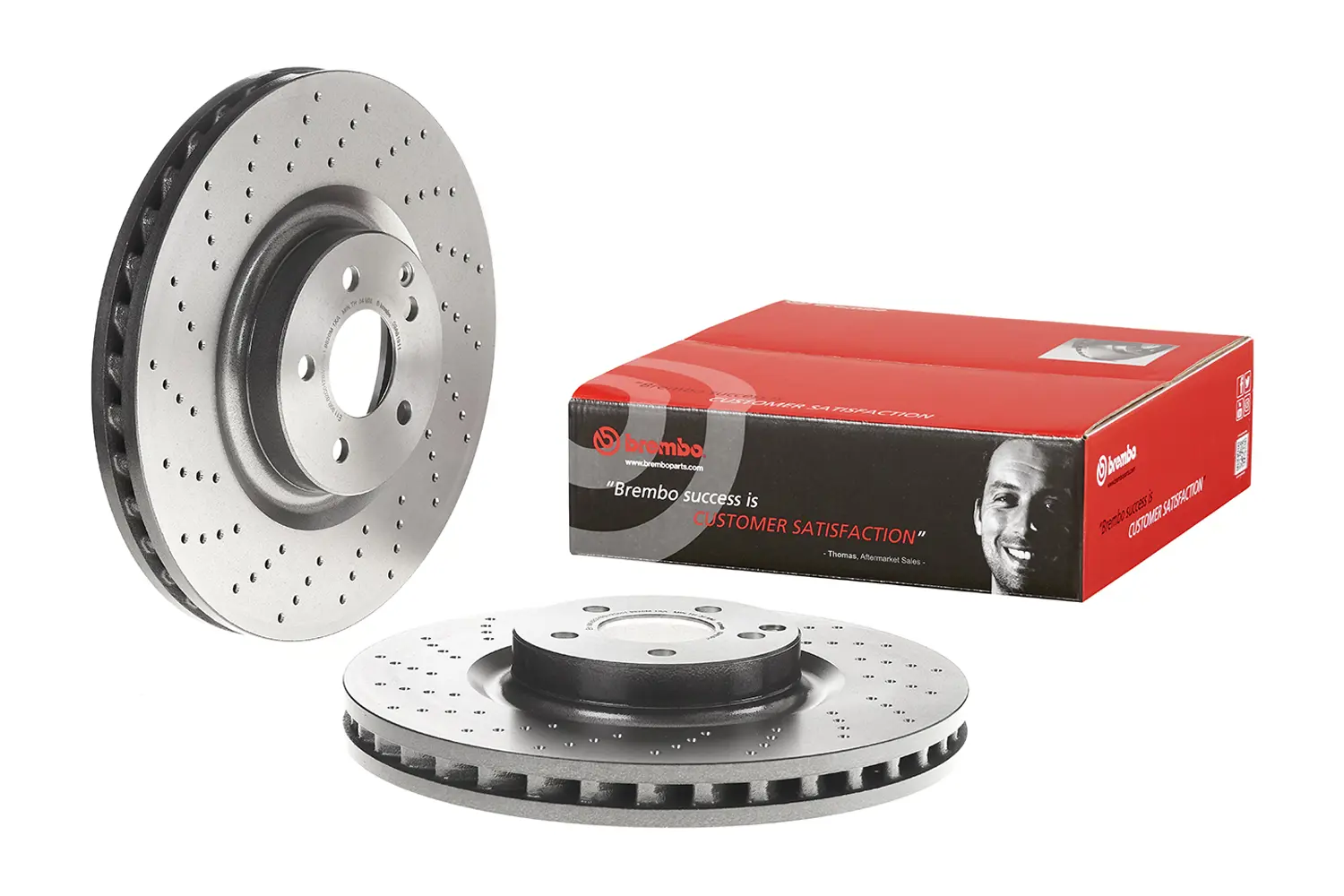

The 09.A819.11 UV painted brake disc is synonymous with reliability

The Brembo brake disc with special UV paint treatment guarantees superior corrosion resistance for the product, thanks to the protective coating on the outer edges and on the disc hub. The UV paint not only gives the disc a clean, shiny appearance but is also beneficial for the environment as the water-based UV paint treatment does not require the use of chemical solvents and is a low energy consumption process.
OE-equivalent
Brembo quality
ECE-R90 certificate
Safety
High carbon
Anti-corrosion
Fastening screws
Find a retailer or mechanic
Use the map to find Brembo products near you.
Go to the map

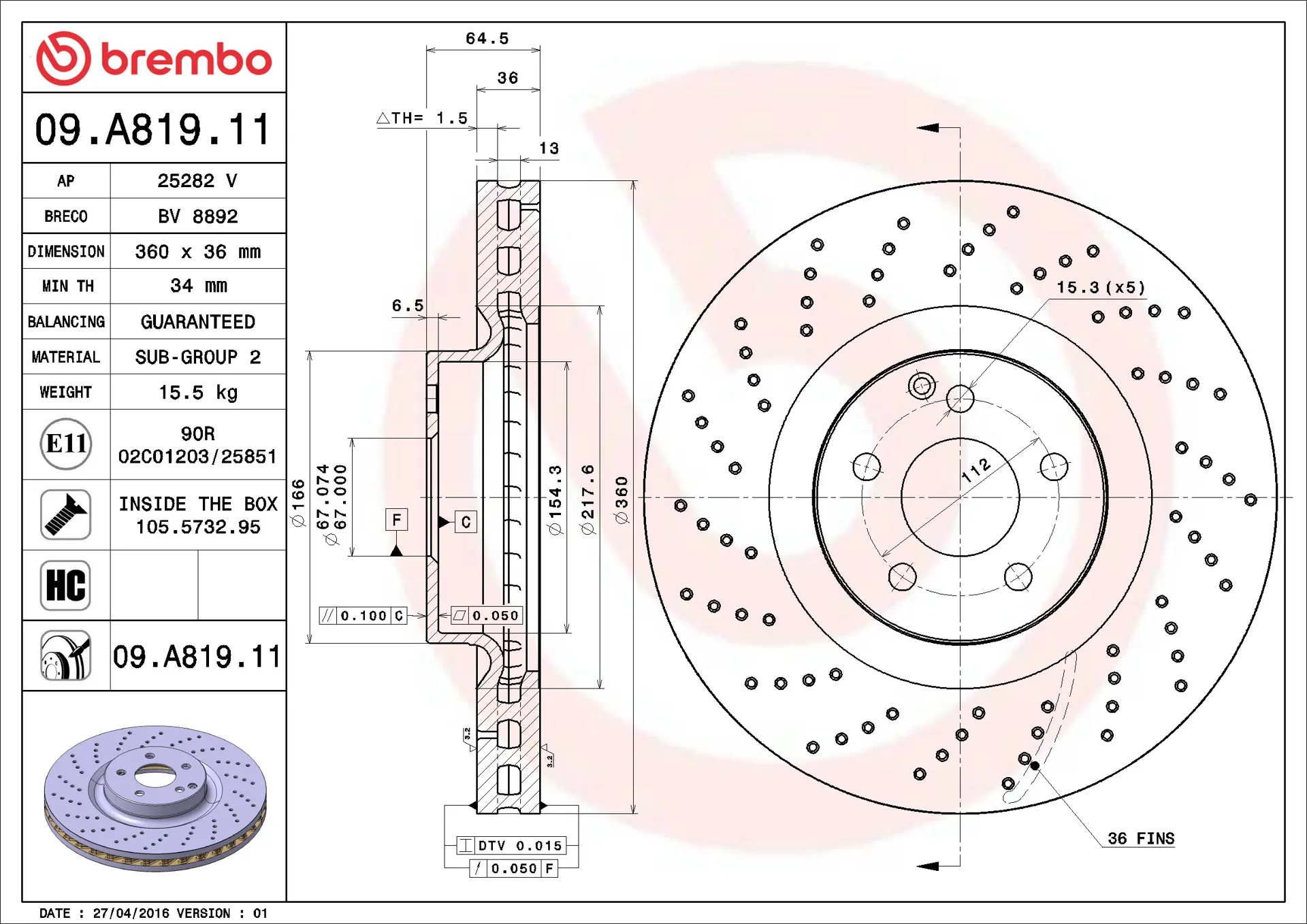

Technical specifications
Brake discs
Diameter Ø
360mm
Thickness (TH)
36mm
Height (A)
65mm
Number of holes (C)
5
Brake disc type
Ventilated
Centering (B)
67mm
Min. thickness
34mm
Tightening torque
130Nm
Axle
Front
Units per box
1
EAN code
8020584038161
Product images, packaging, labels, product design and other visual representations displayed on this website are intended to provide a general indication of the products. Product appearance, packaging configuration, markings, colours, finishes and included components may vary from those shown as a result of manufacturing, sourcing, regulatory, technical or commercial requirements. The quantity of items included as well as the applicable technical characteristics and specifications are those set out in the relevant technical specifications table.
Discs in comparison
Prime
Prime
Max
Max
Xtra
Xtra
Sport
Sport
GT Kit
GT Kit
Type of use Road use Road use and sports driving Road use and sports driving Road use and sports driving Track use
Installation No modifications required for installation No modifications required for installation No modifications required for installation No modifications required for installation Must be verified
Feature OE equivalent design Grooved brake disc Drilled brake disc TY3 grooved brake disc Oversized braking system
Performance OE equivalent Exceeds OE Exceeds OE Exceeds OE Exceeds OE
Corrosion treatment UV coated or Zinc coated UV coated UV coated UV coated Zinc coated
Technical content Exceeds OE Exceeds OE Exceeds OE Exceeds OE Exceeds OE
Quality Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo certified quality
ECE R 90 type-approved		 Brembo
certified quality
Download comparison table
