Prime Line

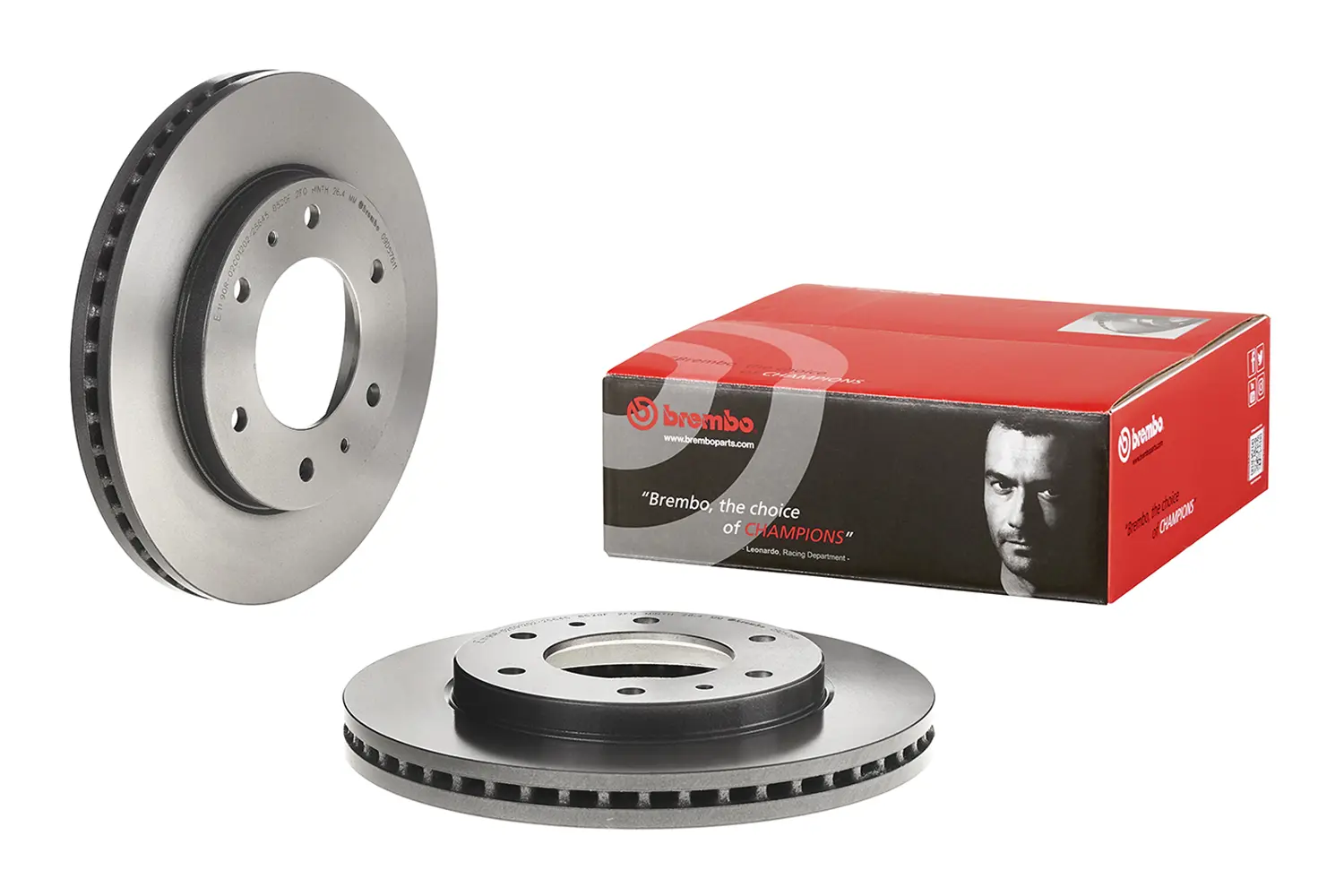

Brake disc UV painted 09.D576.11

Name: Brake disc 09.D576.11
Brand: Brembo
SKU: 09.D576.11

The 09.D576.11 UV painted brake disc is synonymous with reliability

The Brembo brake disc with special UV paint treatment guarantees superior corrosion resistance for the product, thanks to the protective coating on the outer edges and on the disc hub. The UV paint not only gives the disc a clean, shiny appearance but is also beneficial for the environment as the water-based UV paint treatment does not require the use of chemical solvents and is a low energy consumption process.

OE-equivalent

Brembo quality

ECE-R90 certificate

Safety

Anti-corrosion

Find a retailer or mechanic

Use the map to find Brembo products near you.

Go to the map

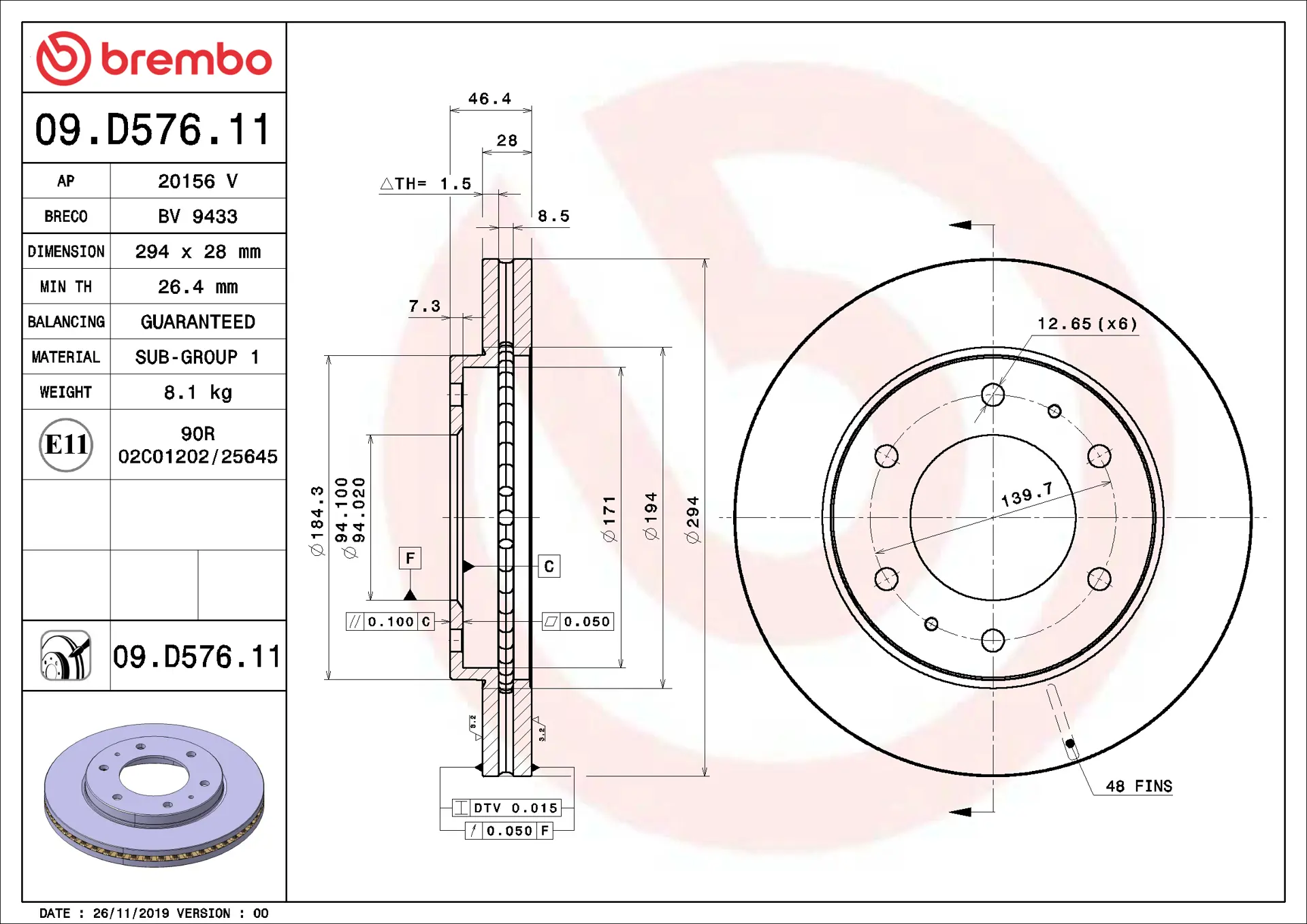

Technical specifications

Diameter Ø

294mm

Thickness (TH)

28mm

Height (A)

46mm

Number of holes (C)

Brake disc type

Ventilated

Centering (B)

94mm

Min. thickness

26,4mm

Axle

Front

Units per box

EAN code

8020584311714

Assembly instructions

Product images, packaging, labels, product design and other visual representations displayed on this website are intended to provide a general indication of the products. Product appearance, packaging configuration, markings, colours, finishes and included components may vary from those shown as a result of manufacturing, sourcing, regulatory, technical or commercial requirements. The quantity of items included as well as the applicable technical characteristics and specifications are those set out in the relevant technical specifications table.

Discs in comparison

	Prime	Max	Xtra	Sport	GT Kit
Type of use	Road use	Road use and sports driving	Road use and sports driving	Road use and sports driving	Track use
Installation	No modifications required for installation	No modifications required for installation	No modifications required for installation	No modifications required for installation	Must be verified
Feature	OE equivalent design	Grooved brake disc	Drilled brake disc	TY3 grooved brake disc	Oversized braking system
Performance	OE equivalent	Exceeds OE	Exceeds OE	Exceeds OE	Exceeds OE
Corrosion treatment	UV coated or Zinc coated	UV coated	UV coated	UV coated	Zinc coated
Technical content	Exceeds OE	Exceeds OE	Exceeds OE	Exceeds OE	Exceeds OE
Quality	Brembo certified quality ECE R 90 type-approved	Brembo certified quality ECE R 90 type-approved	Brembo certified quality ECE R 90 type-approved	Brembo certified quality ECE R 90 type-approved	Brembo certified quality

Download comparison table
