Prime Line

Brake disc Composite 09.D895.23

Name: Brake disc 09.D895.23
Brand: Brembo
SKU: 09.D895.23

Composite brake disc 09.D895.23 belongs to Brembo Premium Line

The Composite brake disc is dedicated to the highest-performance BMW applications and is perfectly interchangeable with the original disc. It has an aluminium hat connected to the special cast iron braking surface by steel pins. This solution makes the disc lighter for improved handling of the car.

OE-equivalent

Brembo quality

ECE-R90 certificate

Weight reduction

High carbon

Bi-Material Brake Disc

Anti-corrosion

Fastening screws

Fading resistance

Find a retailer or mechanic

Use the map to find Brembo products near you.

Go to the map

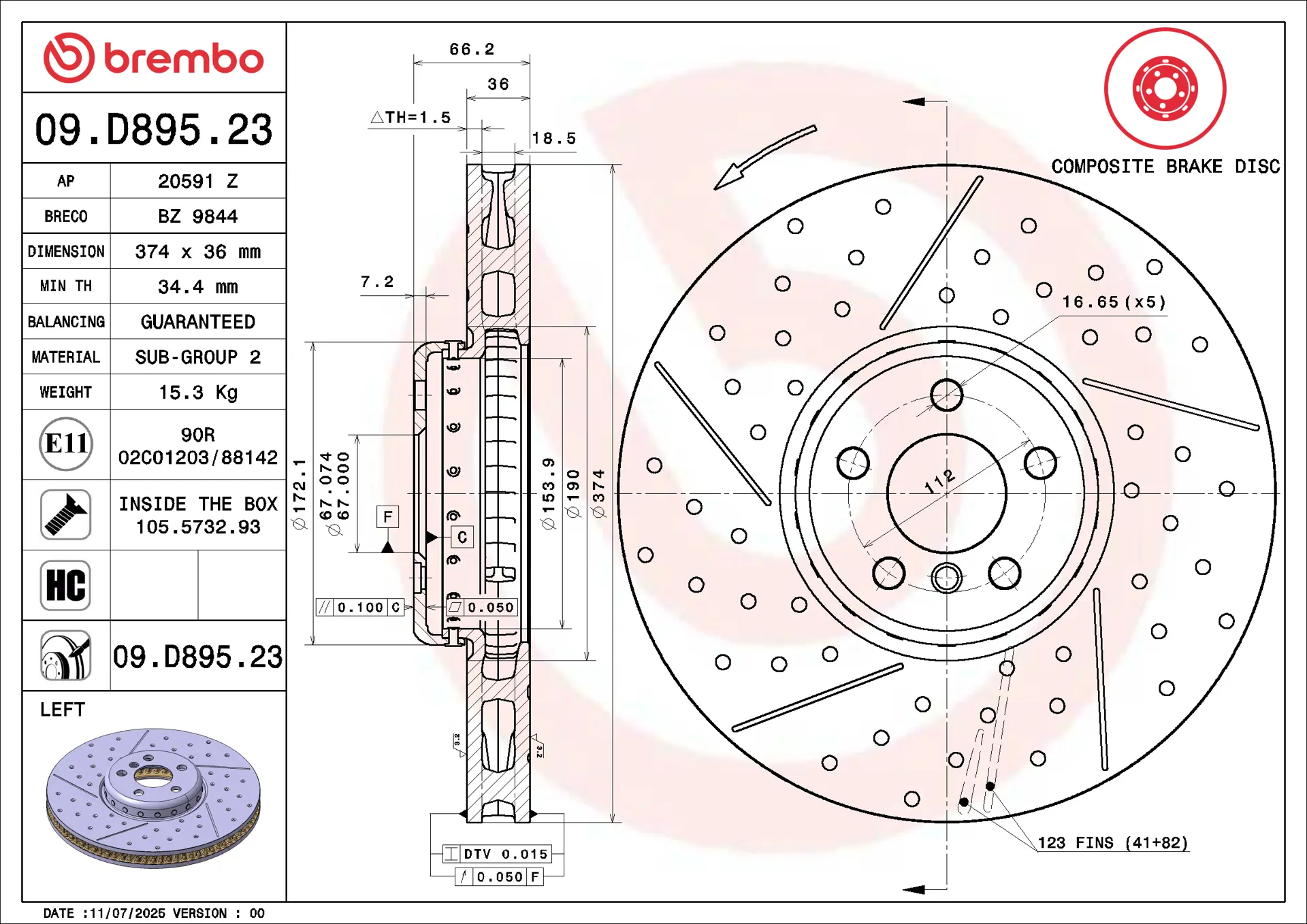

Technical specifications

Diameter Ø

374mm

Thickness (TH)

36mm

Height (A)

66,2mm

Number of holes (C)

Brake disc type

Ventilated

Centering (B)

67mm

Min. thickness

34,4mm

Assembly side

Left

Axle

Front left

Units per box

EAN code

8020584344187

Assembly instructions

Product images, packaging, labels, product design and other visual representations displayed on this website are intended to provide a general indication of the products. Product appearance, packaging configuration, markings, colours, finishes and included components may vary from those shown as a result of manufacturing, sourcing, regulatory, technical or commercial requirements. The quantity of items included as well as the applicable technical characteristics and specifications are those set out in the relevant technical specifications table.

Discs in comparison

	Prime	Max	Xtra	Sport	GT Kit
Type of use	Road use	Road use and sports driving	Road use and sports driving	Road use and sports driving	Track use
Installation	No modifications required for installation	No modifications required for installation	No modifications required for installation	No modifications required for installation	Must be verified
Feature	OE equivalent design	Grooved brake disc	Drilled brake disc	TY3 grooved brake disc	Oversized braking system
Performance	OE equivalent	Exceeds OE	Exceeds OE	Exceeds OE	Exceeds OE
Corrosion treatment	UV coated or Zinc coated	UV coated	UV coated	UV coated	Zinc coated
Technical content	Exceeds OE	Exceeds OE	Exceeds OE	Exceeds OE	Exceeds OE
Quality	Brembo certified quality ECE R 90 type-approved	Brembo certified quality ECE R 90 type-approved	Brembo certified quality ECE R 90 type-approved	Brembo certified quality ECE R 90 type-approved	Brembo certified quality

Download comparison table
