Catalogue Discs 08.2938.24

08.2938.24

Disc
Compare
In the comparator
Add to favourites
My Favourites
Products compared
Replaces: 08.2938.10

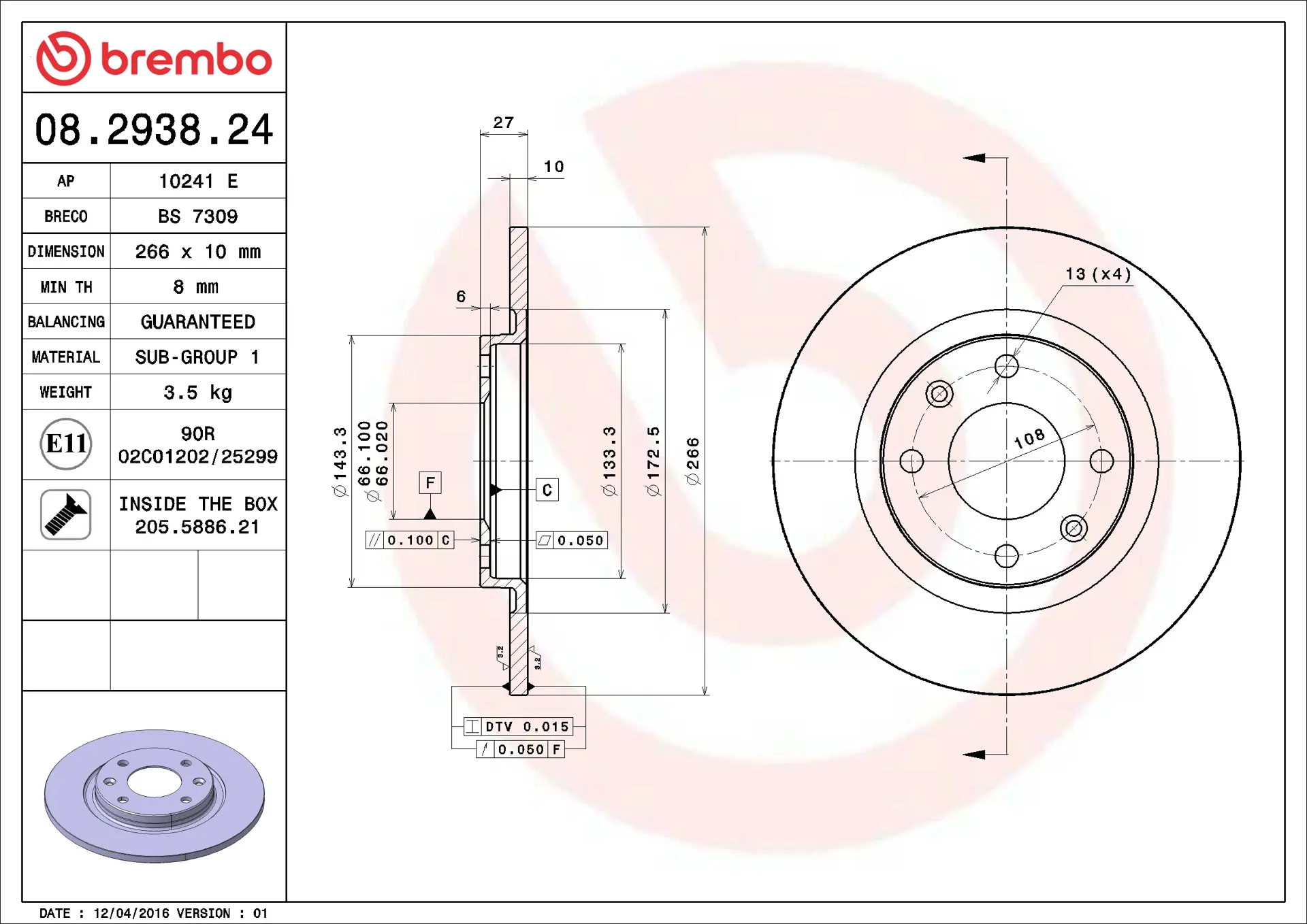

Disc technical data
Axle
Front
Diameter
266 mm
Overall height (A)
27 mm
Centring diameter (B)
66 mm
Number of holes (C)
4
Thickness (TH)
10 mm
Minimum thickness
8 mm
Tightening torque
85 Nm
Unit per box
2
EANCode
8020584012253
Discs
Brand part numbers
Brembo 08.2938.24
AP 10241 E
Breco BS 7309
Where to buy
Download data sheet
08.2938.24
08.2938.24
08.2938.24
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
Compatible vehicles

PEUGEOT

Model Type kW CV Year
Model305 II (581M) Type1.3 kW44 CV60 Year10/82 - 08/85
Model305 II (581M) Type1.5 kW54 CV73 Year10/82 - 08/85
Model305 II (581M) Type1.5 kW50 CV68 Year09/85 - 07/90
Model305 II (581M) Type1.6 kW71 CV97 Year10/82 - 06/84
Model305 II (581M) Type1.6 kW69 CV94 Year10/82 - 06/88
Model305 II (581M) Type1.6 kW55 CV75 Year10/82 - 07/88
Model305 II (581M) Type1.6 kW66 CV90 Year07/84 - 08/87
Model305 II (581M) Type1.6 kW54 CV73 Year11/86 - 12/88
Model305 II (581M) Type1.8 kW59 CV80 Year11/82 - 12/88
Model305 II (581M) Type1.8 D kW44 CV60 Year11/82 - 12/88
Model305 II (581M) Type1.9 D kW47 CV64 Year10/82 - 07/88
Model305 II (581M) Type1.9 D kW48 CV65 Year10/82 - 07/88
Model305 II Break (581E) Type1.3 kW44 CV60 Year10/82 - 08/86
Model305 II Break (581E) Type1.5 kW54 CV73 Year10/82 - 08/86
Model305 II Break (581E) Type1.5 kW50 CV68 Year09/85 - 10/86
Model305 II Break (581E) Type1.6 kW71 CV97 Year09/83 - 06/84
Model305 II Break (581E) Type1.6 kW66 CV90 Year07/84 - 12/87
Model305 II Break (581E) Type1.6 kW55 CV75 Year02/86 - 12/88
Model305 II Break (581E) Type1.6 kW54 CV73 Year11/86 - 12/88
Model305 II Break (581E) Type1.8 D kW44 CV60 Year11/82 - 12/88
Model305 II Break (581E) Type1.9 Diesel kW47 CV64 Year10/82 - 12/88
Model305 II Break (581E) Type1.9 Diesel kW48 CV65 Year10/82 - 12/88
Model405 I (15B) Type1.4 kW47 CV64 Year01/87 - 07/92
Model405 I (15B) Type1.6 kW69 CV94 Year01/87 - 12/92
Model405 I (15B) Type1.6 kW55 CV75 Year07/87 - 06/88
Model405 I (15B) Type1.6 kW53 CV72 Year07/87 - 12/92
Model405 I (15B) Type1.6 kW65 CV88 Year07/87 - 12/92
Model405 I (15B) Type1.6 kW66 CV90 Year10/89 - 12/92
Model405 I (15B) Type1.8 Turbo Diesel kW66 CV90 Year03/88 - 12/92
Model405 I (15B) Type1.9 kW70 CV95 Year07/87 - 12/92
Model405 I (15B) Type1.9 Diesel kW51 CV69 Year03/88 - 12/92
Model405 I (15B) Type1.9 Diesel kW47 CV64 Year07/88 - 09/92
Model405 I (15B) Type1.9 Injection kW77 CV105 Year07/87 - 12/92
Model405 I Break (15E) Type1.4 kW47 CV64 Year05/88 - 07/92
Model405 I Break (15E) Type1.6 kW68 CV92 Year05/88 - 07/92
Model405 I Break (15E) Type1.6 kW53 CV72 Year10/88 - 08/92
Model405 I Break (15E) Type1.6 kW55 CV75 Year10/88 - 08/92
Model405 I Break (15E) Type1.6 kW65 CV88 Year10/88 - 08/92
Model405 I Break (15E) Type1.6 kW66 CV90 Year10/88 - 08/92
Model405 I Break (15E) Type1.6 kW69 CV94 Year10/88 - 08/92
Model405 I Break (15E) Type1.8 TD kW66 CV90 Year10/88 - 08/92
Model405 I Break (15E) Type1.9 kW70 CV95 Year10/88 - 08/92
Model405 I Break (15E) Type1.9 D kW47 CV64 Year10/88 - 08/92
Model405 I Break (15E) Type1.9 D kW51 CV69 Year10/88 - 08/92
Model405 II (4B) Type1.4 kW55 CV75 Year08/92 - 10/95
Model405 II (4B) Type1.6 kW68 CV92 Year08/92 - 08/94
Model405 II (4B) Type1.6 kW65 CV88 Year08/92 - 10/95
Model405 II (4B) Type1.6 kW66 CV90 Year08/92 - 05/97
Model405 II (4B) Type1.9 D kW47 CV64 Year08/92 - 10/95
Model405 II (4B) Type1.9 D kW50 CV68 Year06/94 - 10/95
Model405 II Break (4E) Type1.4 kW55 CV75 Year08/92 - 10/96
Model405 II Break (4E) Type1.6 kW65 CV88 Year08/92 - 10/96
Model405 II Break (4E) Type1.6 kW66 CV90 Year08/92 - 05/97
Model405 II Break (4E) Type1.9 D kW47 CV64 Year08/92 - 10/96
Model405 II Break (4E) Type1.9 D kW51 CV69 Year09/93 - 12/95
Model405 II Break (4E) Type1.9 D kW50 CV68 Year06/94 - 10/96
OE Part number
Compatible OE codes
PEUGEOT 424688
PEUGEOT 4246A9
