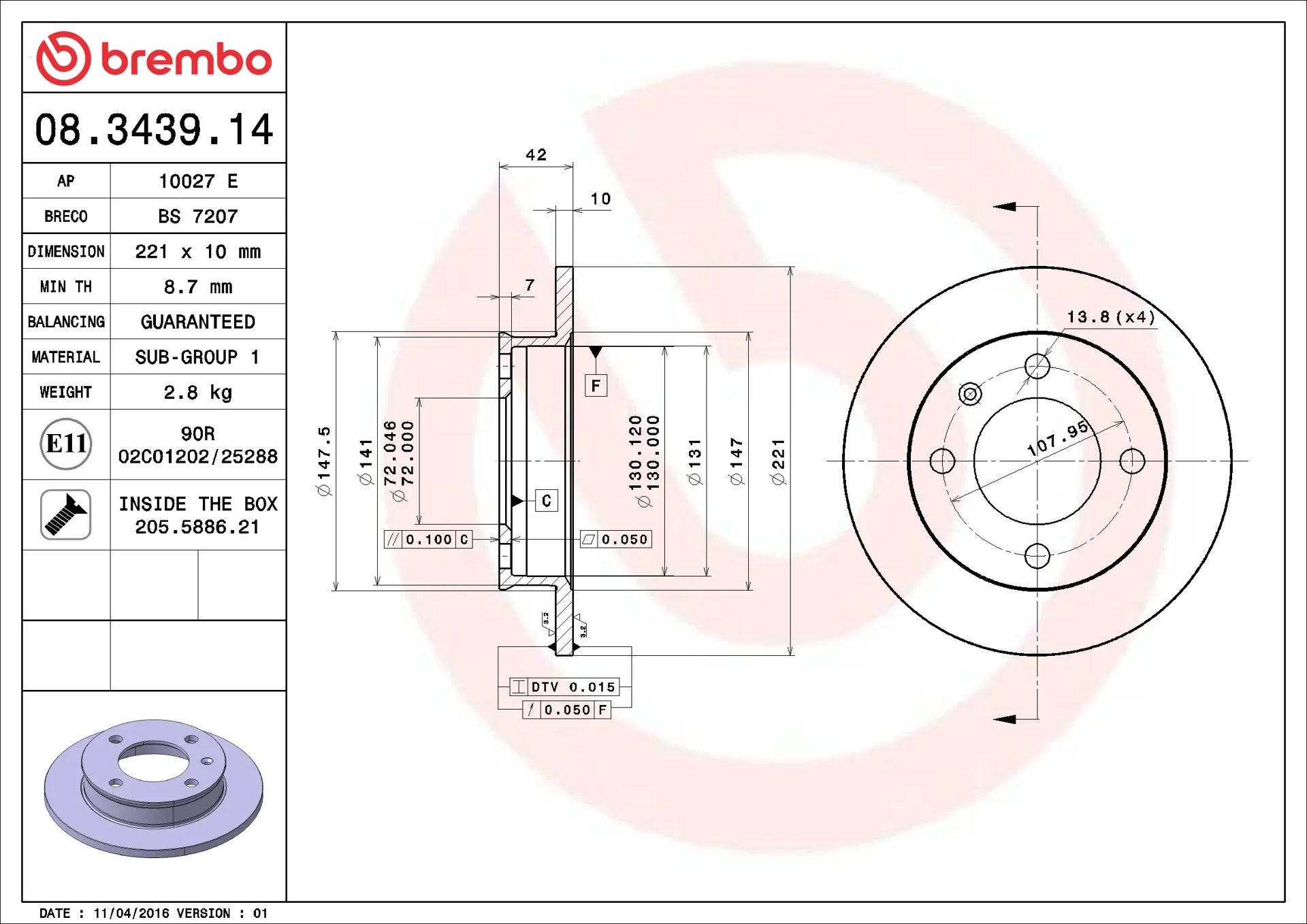

08.3439.14

Disc
Disc technical data
Axle
Front
Diameter (Diameter)
221 mm
Overall height (A)
42 mm
Centring diameter (B)
72 mm
Number of holes (C)
4
Thickness (TH)
10 mm
Minimum thickness
8,7 mm
Tightening torque
85 Nm
Unit per box
2
EANCode
8020584013465
Discs
Brand part numbers
Brembo 08.3439.14
AP 10027 E
Breco BS 7207
Technical specifications

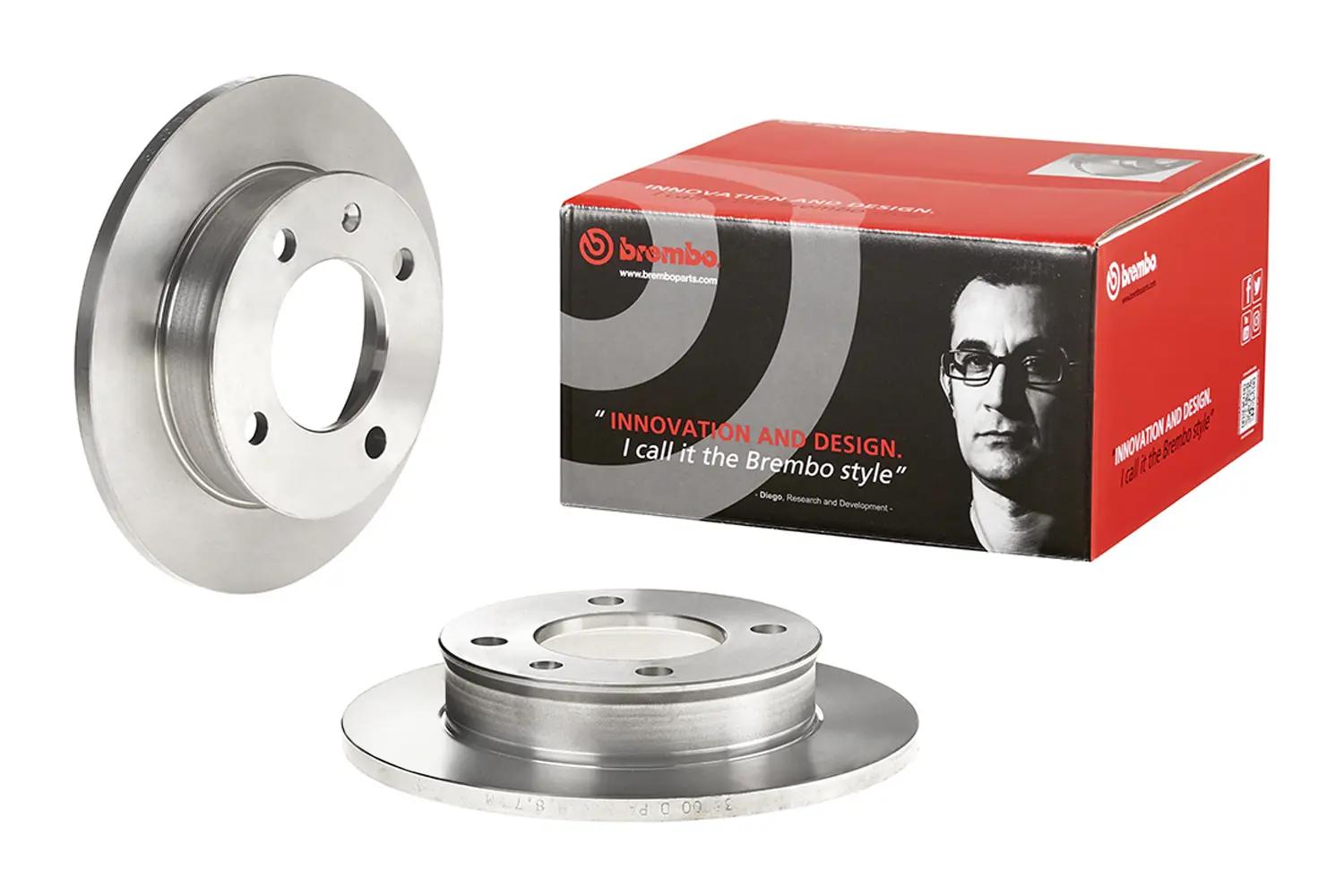

Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
FORD 1102559
FORD 1571346
FORD 1571347
FORD 1571348
FORD 1575877
FORD 1591990
FORD 1591991
FORD 1629450
FORD 1629451
FORD 5022650
FORD 5022651
FORD 6089874
FORD 6089875
FORD 6089876
FORD 6119634
FORD 6156352
FORD 6158212
FORD 6158213
