08.5086.75

Disc

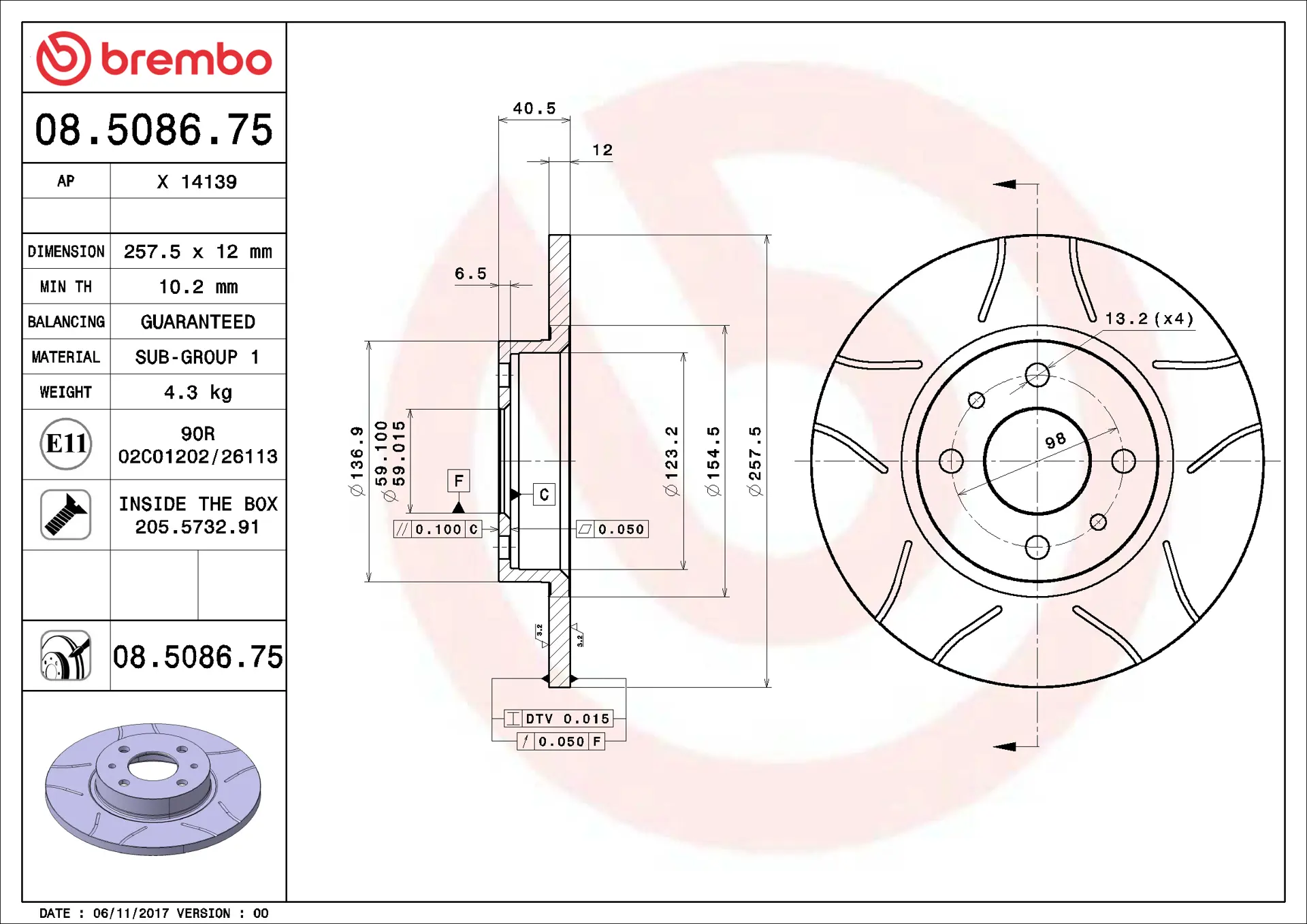

Disc technical data
Axle
Front
Diameter (Diameter)
257 mm
Overall height (A)
40,5 mm
Centring diameter (B)
59 mm
Number of holes (C)
4
Thickness (TH)
12 mm
Minimum thickness
10,2 mm
Tightening torque
86 Nm
Unit per box
2
EANCode
8020584011874
Discs
Brand part numbers
Brembo 08.5086.75
AP X 14139
Certification
UNECE R 90 homologation
The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications
Brembo Max
Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

CHRYSLER

FIAT

LANCIA

OE Part number
Compatible OE codes
ALFA ROMEO 60808872
FIAT 51859075
FIAT 51866265
FIAT 7545556
FIAT 7645055
FIAT 7663466
FIAT 92498609
LANCIA 46554302
LANCIA 46820655
LANCIA 51859075
LANCIA 51866265
LANCIA 7663466
