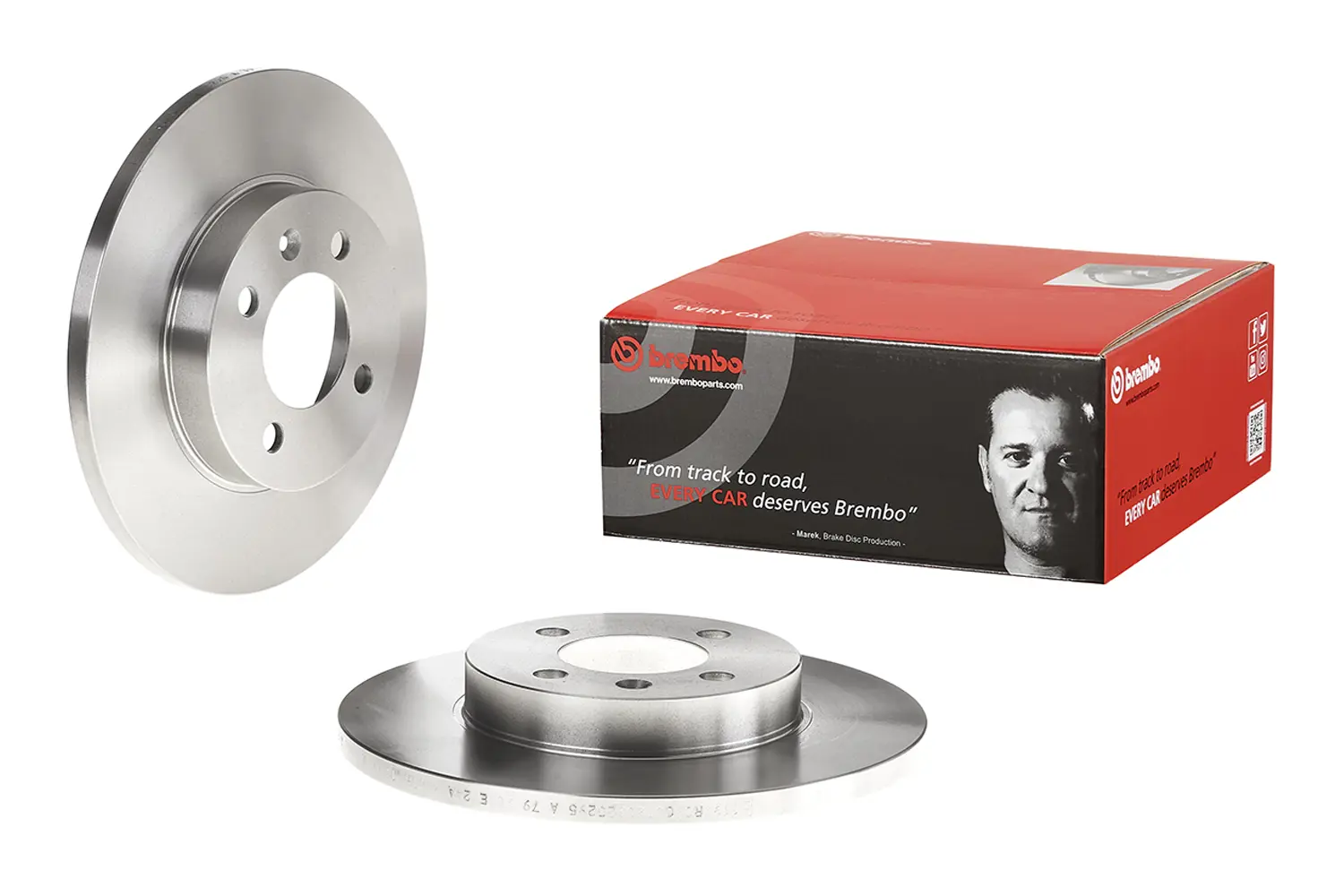

Catalogue Discs 08.5149.14

08.5149.14

Disc
Compare
In the comparator
Add to favourites
My Favourites
Products compared

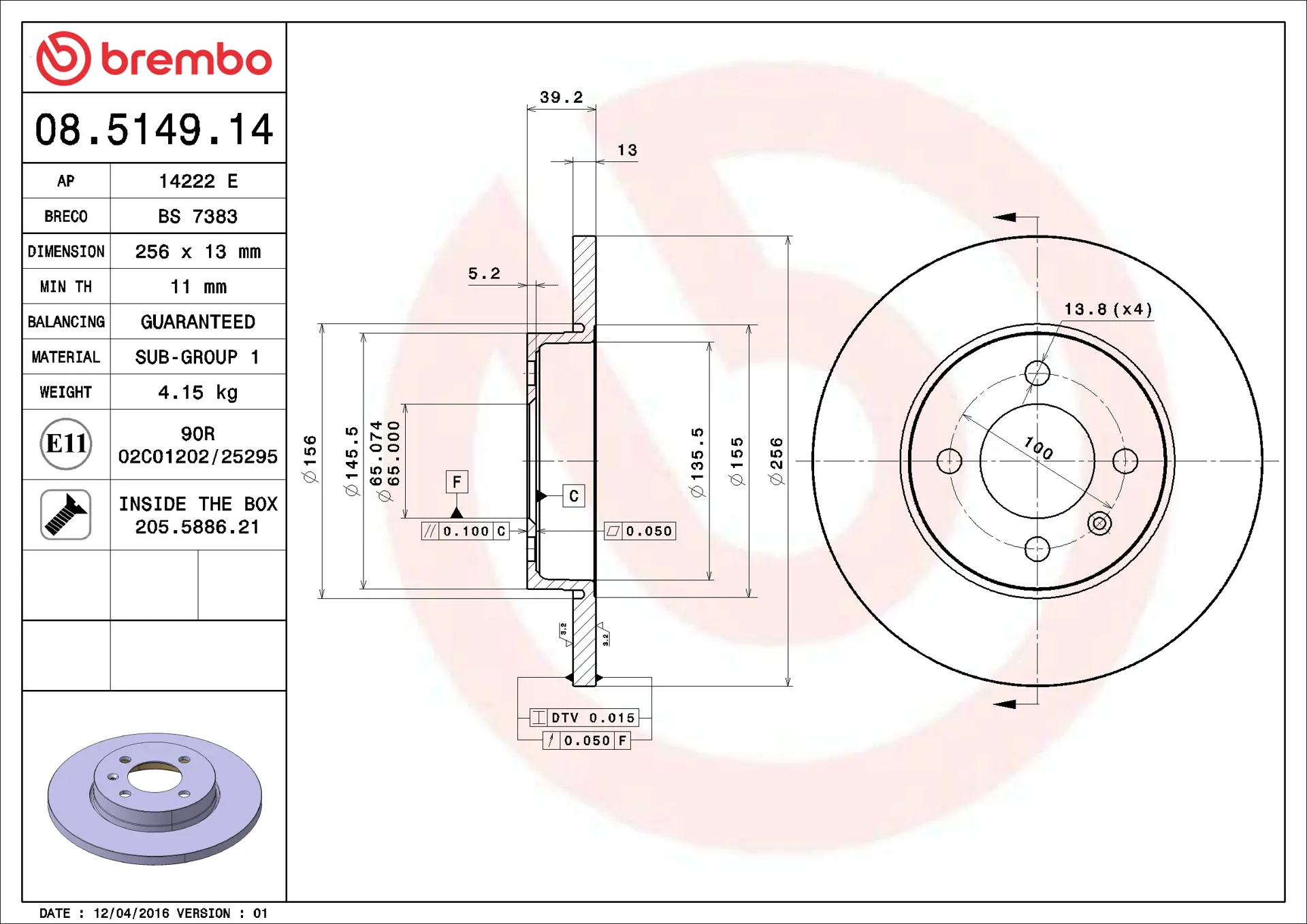

Disc technical data
Axle
Front
Diameter
256 mm
Overall height (A)
39,2 mm
Centring diameter (B)
65 mm
Number of holes (C)
4
Thickness (TH)
13 mm
Minimum thickness
11 mm
Tightening torque
110 Nm
Unit per box
2
EANCode
8020584013212
Discs
Brand part numbers
Brembo 08.5149.14
AP 14222 E
Breco BS 7383
Where to buy
Download data sheet
08.5149.14
08.5149.14
08.5149.14
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
Compatible vehicles

SEAT

Model Type kW CV Year
ModelINCA (6K9) Type1.4 16V kW55 CV75 Year04/00 - 06/03
ModelINCA (6K9) Type1.4 i kW44 CV60 Year11/95 - 06/03
ModelINCA (6K9) Type1.6 i kW55 CV75 Year11/95 - 05/98
ModelINCA (6K9) Type1.9 D kW47 CV64 Year11/95 - 06/03
ModelINCA (6K9) Type1.9 SDI kW47 CV64 Year11/95 - 06/03
ModelTOLEDO I (1L) Type1.9 TDI kW66 CV90 Year08/95 - 03/99

VW

Model Type kW CV Year
ModelCADDY II Box Body/MPV (9K9A) Type1.9 D kW47 CV64 Year11/95 - 01/04
ModelCADDY II Box Body/MPV (9K9A) Type1.9 SDI kW47 CV64 Year11/95 - 01/04
ModelCADDY II Box Body/MPV (9K9A) Type60 1.4 kW44 CV60 Year11/95 - 01/04
ModelCADDY II Box Body/MPV (9K9A) Type75 1.6 kW55 CV75 Year11/95 - 05/97
ModelCADDY II Box Body/MPV (9K9A) Type75 1.6 kW55 CV75 Year11/95 - 09/00
ModelCADDY II MPV (9K9B) Type1.4 kW44 CV60 Year11/95 - 06/03
ModelCADDY II MPV (9K9B) Type1.6 kW55 CV75 Year11/95 - 05/97
ModelCADDY II MPV (9K9B) Type1.9 D kW47 CV64 Year11/95 - 01/04
ModelCADDY II MPV (9K9B) Type1.9 SDI kW47 CV64 Year11/95 - 01/04
ModelGOLF III (1H1) Type1.6 kW74 CV101 Year07/95 - 08/97
ModelGOLF III (1H1) Type1.6 kW55 CV75 Year09/92 - 08/97
ModelGOLF III (1H1) Type1.8 kW55 CV75 Year11/91 - 08/97
ModelGOLF III (1H1) Type1.8 kW66 CV90 Year11/91 - 08/97
ModelGOLF III (1H1) Type1.8 Syncro (1HX1) kW66 CV90 Year01/93 - 08/97
ModelGOLF III (1H1) Type1.9 TDI kW66 CV90 Year08/93 - 08/97
ModelGOLF III (1H1) Type1.9 TDI Syncro (1HX1) kW66 CV90 Year08/95 - 08/97
ModelGOLF III Cabriolet (1E7) Type1.6 kW74 CV101 Year10/94 - 02/98
ModelGOLF III Cabriolet (1E7) Type1.8 kW55 CV75 Year07/93 - 05/98
ModelGOLF III Cabriolet (1E7) Type1.8 kW66 CV90 Year07/93 - 05/98
ModelGOLF III Cabriolet (1E7) Type1.9 TDI kW81 CV110 Year07/96 - 05/98
ModelGOLF III Cabriolet (1E7) Type1.9 TDI kW66 CV90 Year08/95 - 05/98
ModelGOLF III Cabriolet (1E7) Type2.0 kW85 CV115 Year07/93 - 05/98
ModelGOLF III Van (1H1) Type1.8 kW66 CV90 Year08/91 - 12/97
ModelGOLF III Variant (1H5) Type1.8 kW55 CV75 Year07/93 - 04/99
ModelGOLF III Variant (1H5) Type1.8 kW66 CV90 Year07/93 - 04/99
ModelGOLF III Variant (1H5) Type1.8 Syncro kW66 CV90 Year10/94 - 04/99
ModelGOLF III Variant (1H5) Type1.9 D kW47 CV64 Year07/93 - 04/99
ModelGOLF III Variant (1H5) Type1.9 SDI kW47 CV64 Year07/95 - 04/99
ModelGOLF III Variant (1H5) Type1.9 TD kW55 CV75 Year07/93 - 04/99
ModelGOLF III Variant (1H5) Type1.9 TDI kW66 CV90 Year03/94 - 04/99
ModelGOLF III Variant (1H5) Type1.9 TDI Syncro kW66 CV90 Year07/95 - 04/99
ModelGOLF IV Cabriolet (1E7) Type1.6 kW74 CV100 Year06/98 - 06/02
ModelGOLF IV Cabriolet (1E7) Type1.8 kW55 CV75 Year06/98 - 06/02
ModelGOLF IV Cabriolet (1E7) Type1.8 kW66 CV90 Year06/98 - 06/02
ModelGOLF IV Cabriolet (1E7) Type1.9 TDI kW66 CV90 Year06/98 - 06/02
ModelGOLF IV Cabriolet (1E7) Type1.9 TDI kW81 CV110 Year06/98 - 06/02
ModelGOLF IV Cabriolet (1E7) Type2.0 kW85 CV115 Year06/98 - 06/02
ModelPASSAT (3A2, 35I) Type1.6 kW53 CV72 Year04/88 - 07/89
ModelPASSAT (3A2, 35I) Type1.6 kW55 CV75 Year04/88 - 07/92
ModelPASSAT (3A2, 35I) Type1.6 kW74 CV101 Year10/94 - 08/96
ModelPASSAT (3A2, 35I) Type1.6 TD kW59 CV80 Year08/88 - 09/93
ModelPASSAT (3A2, 35I) Type1.8 kW66 CV90 Year02/88 - 08/96
ModelPASSAT (3A2, 35I) Type1.8 kW55 CV75 Year08/90 - 08/96
ModelPASSAT (3A2, 35I) Type1.9 D kW50 CV68 Year05/89 - 10/93
ModelPASSAT (3A2, 35I) Type1.9 TD kW55 CV75 Year03/91 - 08/96
ModelPASSAT (3A2, 35I) Type1.9 TDI kW66 CV90 Year10/93 - 08/96
ModelPASSAT Variant (3A5, 35I) Type1.6 kW53 CV72 Year04/88 - 07/89
ModelPASSAT Variant (3A5, 35I) Type1.6 kW55 CV75 Year04/88 - 07/91
ModelPASSAT Variant (3A5, 35I) Type1.6 kW74 CV101 Year07/94 - 12/95
ModelPASSAT Variant (3A5, 35I) Type1.6 TD kW59 CV80 Year08/88 - 10/93
ModelPASSAT Variant (3A5, 35I) Type1.8 kW66 CV90 Year02/88 - 05/97
ModelPASSAT Variant (3A5, 35I) Type1.8 kW55 CV75 Year08/90 - 05/97
ModelPASSAT Variant (3A5, 35I) Type1.9 D kW50 CV68 Year05/89 - 10/93
ModelPASSAT Variant (3A5, 35I) Type1.9 TD kW55 CV75 Year03/91 - 05/97
ModelPASSAT Variant (3A5, 35I) Type1.9 TDI kW66 CV90 Year10/93 - 05/97
ModelVENTO (1H2) Type1.6 kW55 CV75 Year09/92 - 09/98
ModelVENTO (1H2) Type1.6 kW74 CV101 Year10/94 - 09/98
ModelVENTO (1H2) Type1.8 kW55 CV75 Year11/91 - 09/98
ModelVENTO (1H2) Type1.8 kW66 CV90 Year11/91 - 09/98
ModelVENTO (1H2) Type1.9 TD kW55 CV75 Year11/91 - 09/98
ModelVENTO (1H2) Type1.9 TDI kW66 CV90 Year09/93 - 09/98
OE Part number
Compatible OE codes
SEAT 357615301
VW 357615301
