08.5803.41

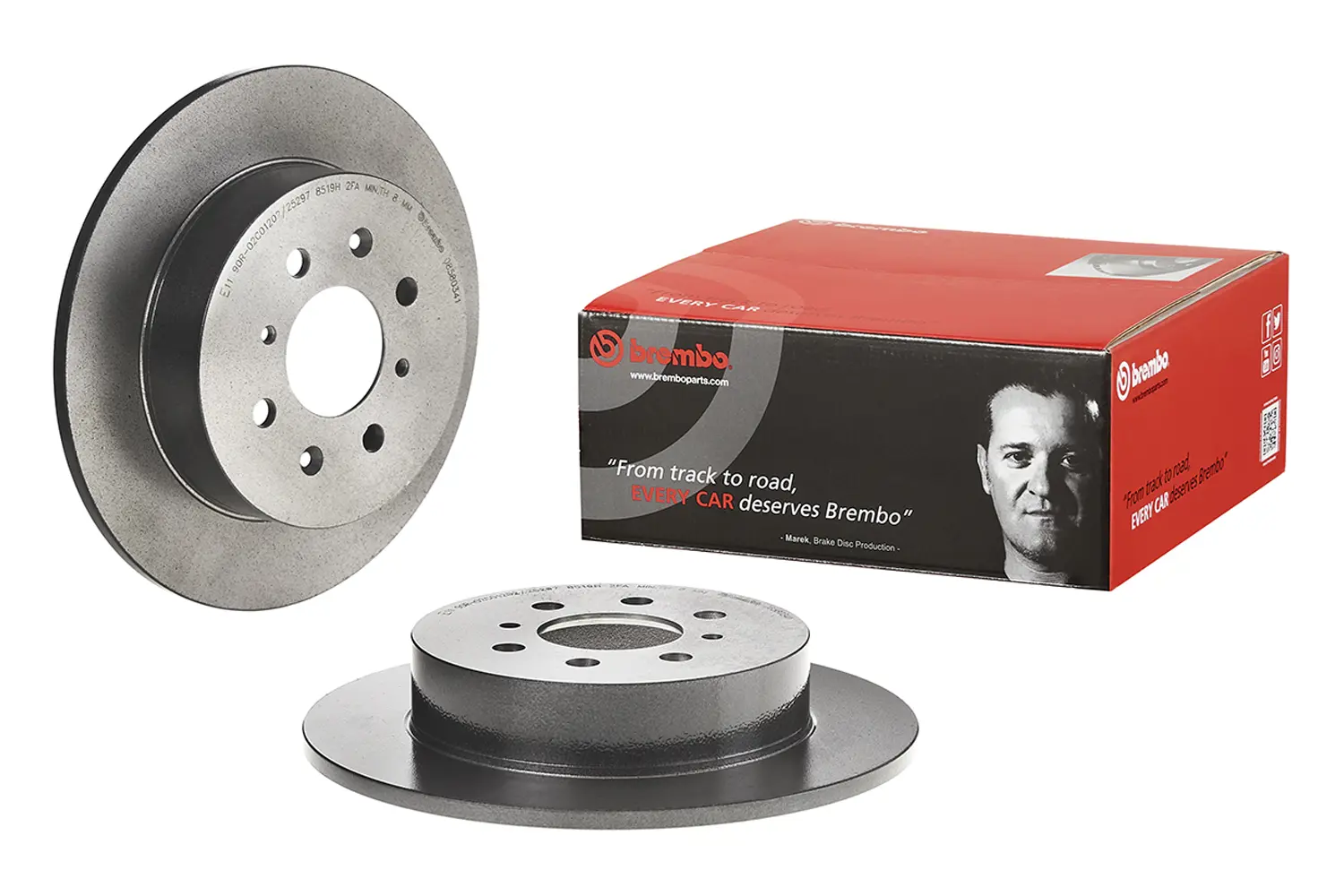

Disc

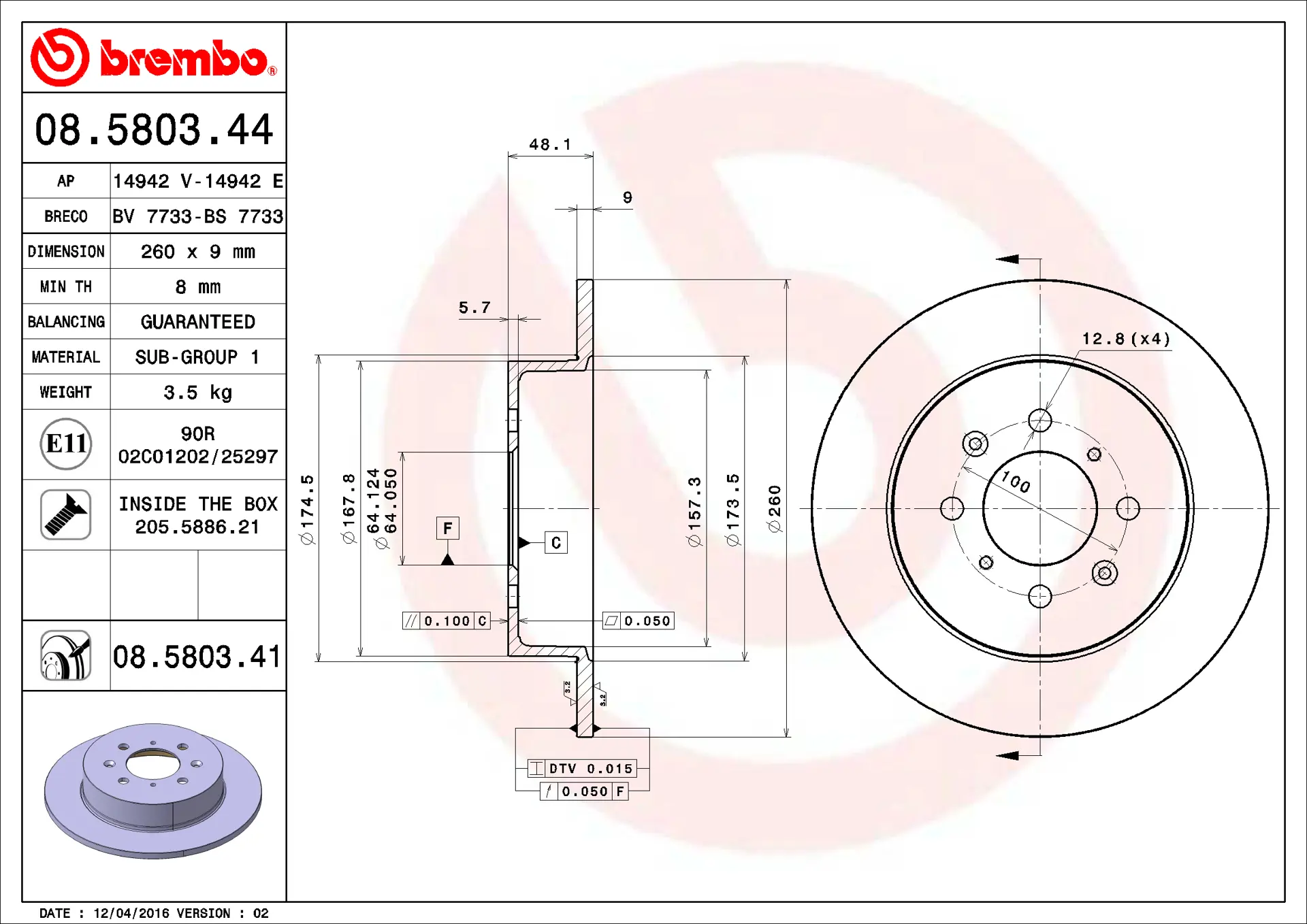

Disc technical data
Axle
Rear
Diameter (Diameter)
260 mm
Overall height (A)
48 mm
Centring diameter (B)
61 mm
Number of holes (C)
4
Thickness (TH)
9 mm
Minimum thickness
8 mm
Tightening torque
108 Nm
Unit per box
2
EANCode
8020584210468
Discs
Brand part numbers
Brembo 08.5803.41
AP 14942 V
Breco BV 7733
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
HONDA 42510S5A000
HONDA 42510S5AA00
HONDA 42510S6DE00
HONDA 42510ST3E00
