08.7724.20

Disc

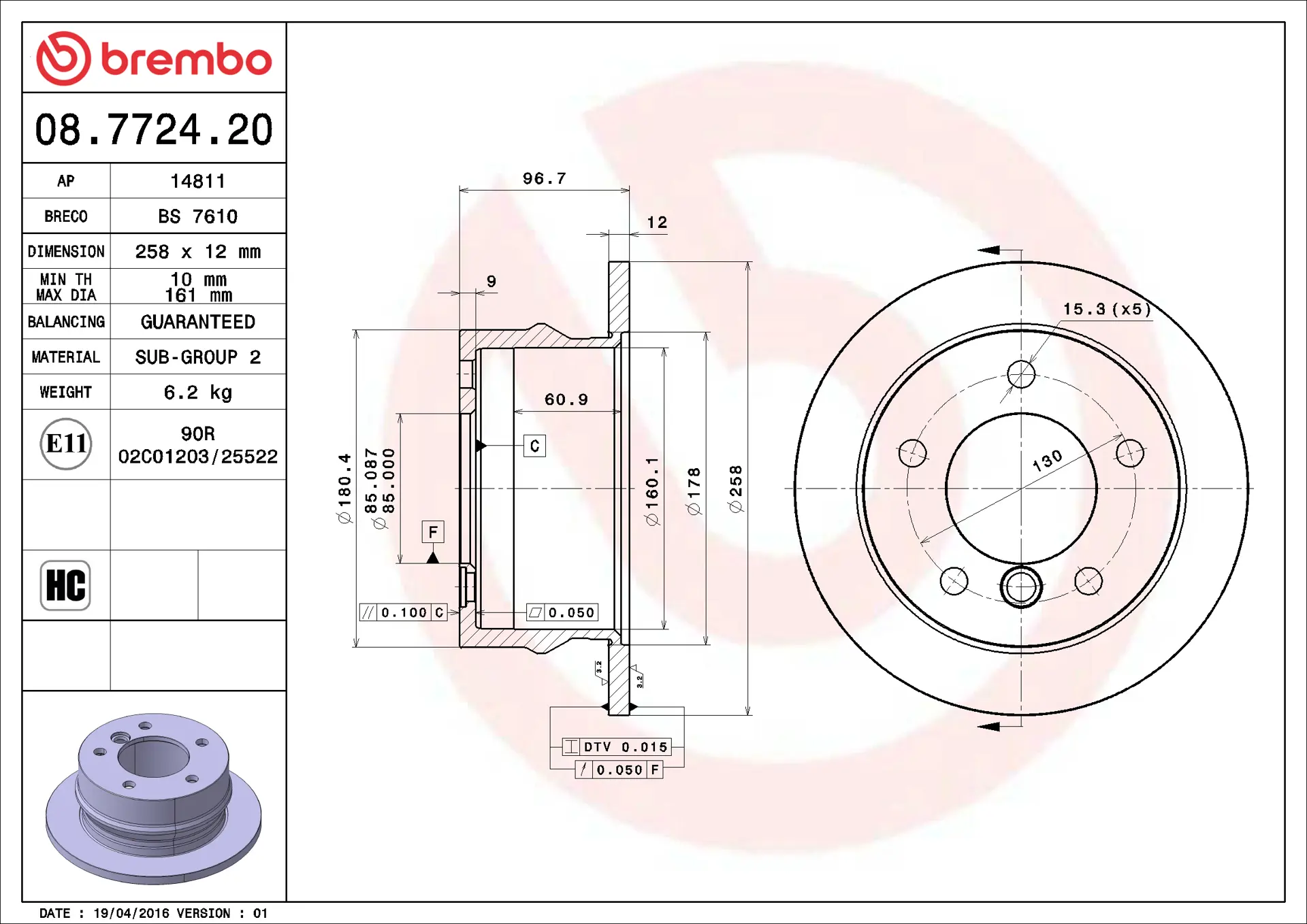

Disc technical data
Axle
Rear
Diameter
258 mm
Overall height (A)
96,5 mm
Centring diameter (B)
85 mm
Number of holes (C)
5
Thickness (TH)
12 mm
Minimum thickness
10 mm
Tightening torque
130 Nm
Unit per box
1
EANCode
8020584772423
Discs
Brand part numbers
Brembo 08.7724.20
AP 14811
Breco BS 7610
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
Compatible vehicles

MERCEDES-BENZ

VW

OE Part number
Compatible OE codes
MERCEDES-BENZ 9014230812
MERCEDES-BENZ 9014231012
MERCEDES-BENZ A9014230812
MERCEDES-BENZ A9014231012
VW 2D0615601C
