08.8868.20

Disc

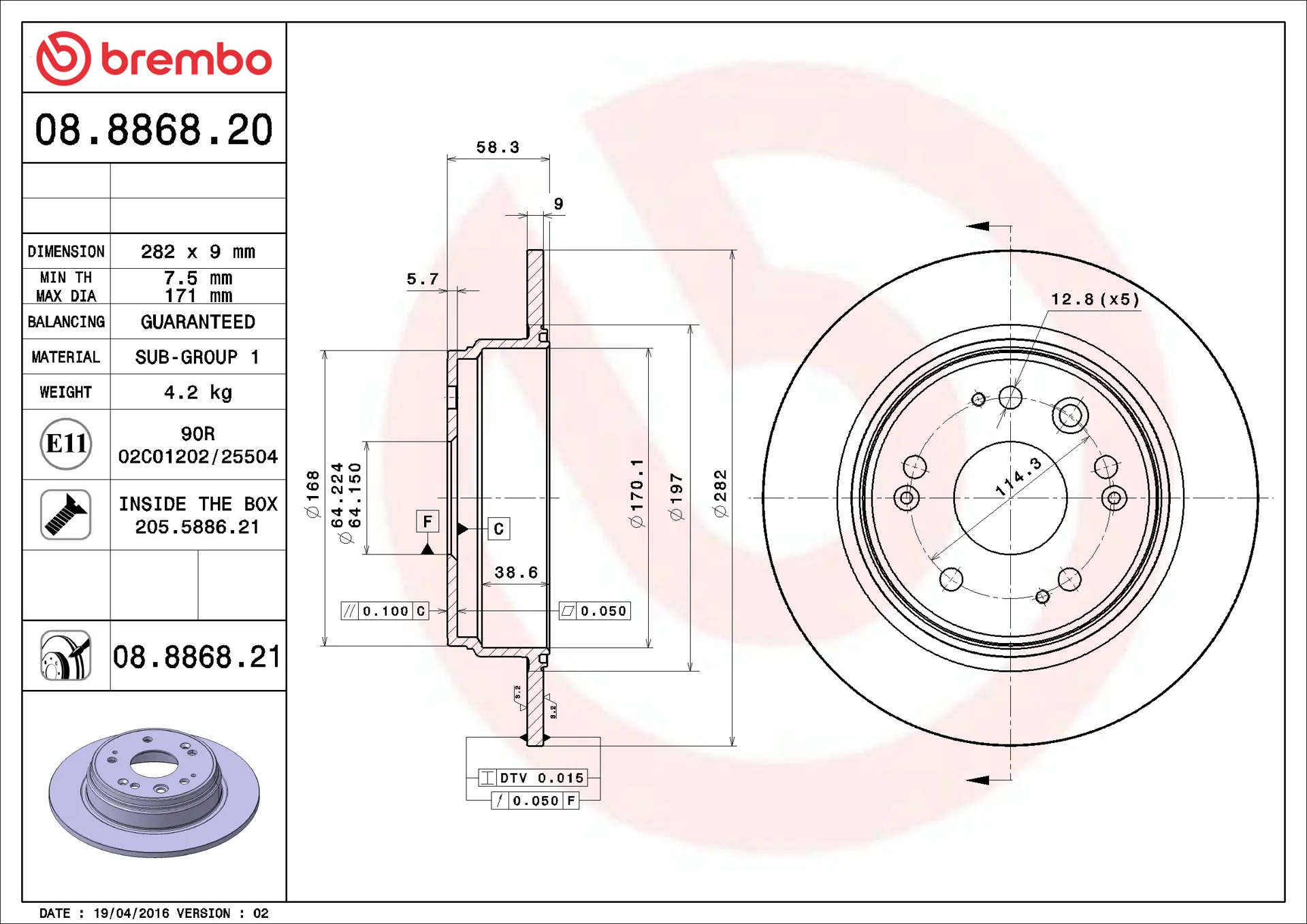

Disc technical data
Axle
Front, Rear
Diameter (Diameter)
282 mm
Overall height (A)
58,2 mm
Centring diameter (B)
64 mm
Number of holes (C)
5
Thickness (TH)
9 mm
Minimum thickness
7,5 mm
Tightening torque
108 Nm
Unit per box
2
EANCode
8020584886823
Discs
Brand part numbers
Brembo 08.8868.20
AP 15055
Breco BS 6047
Technical specifications

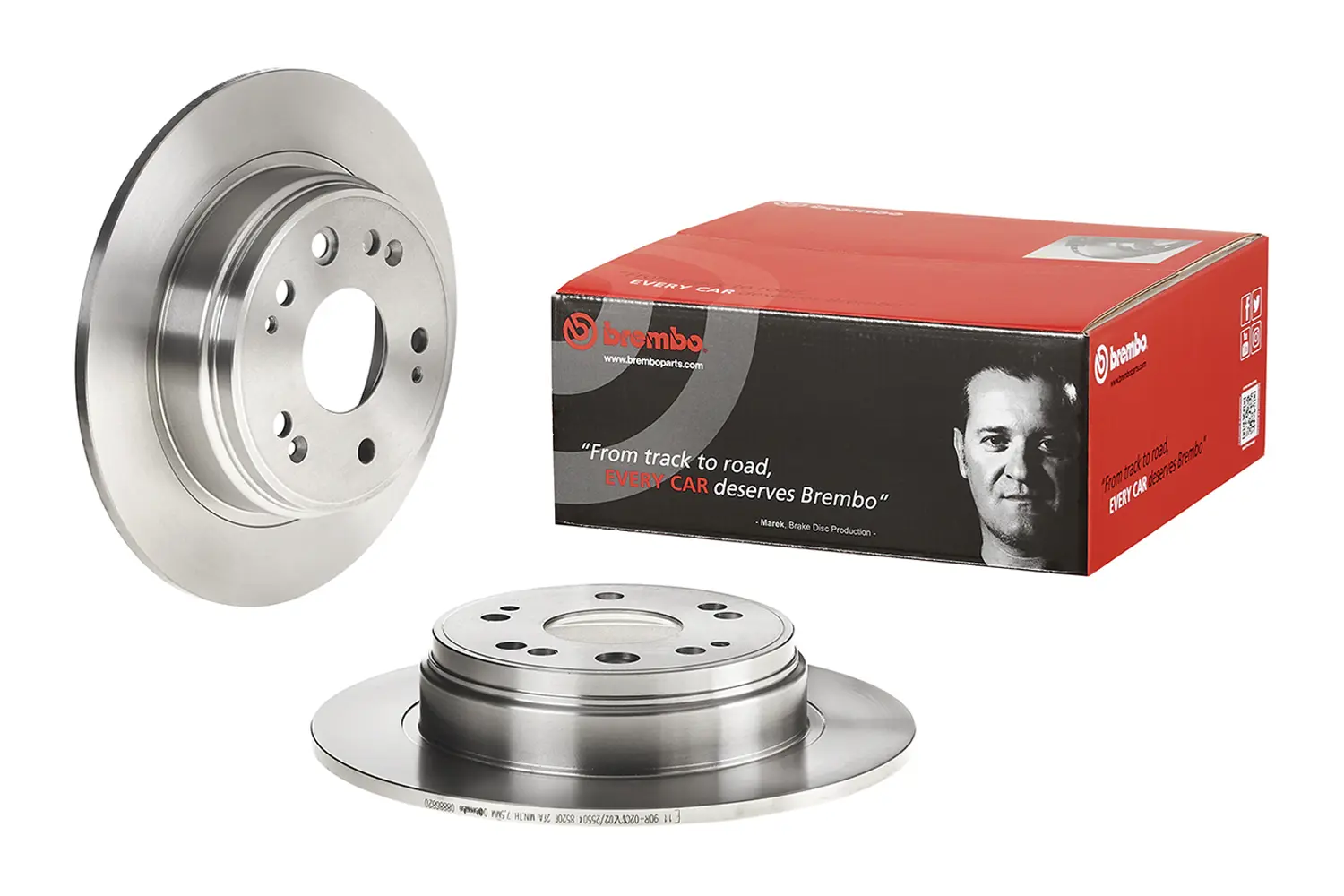

Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
HONDA 42510S9AN00
HONDA 42510SCAE00
HONDA 42510SMCN01
