08.9729.10

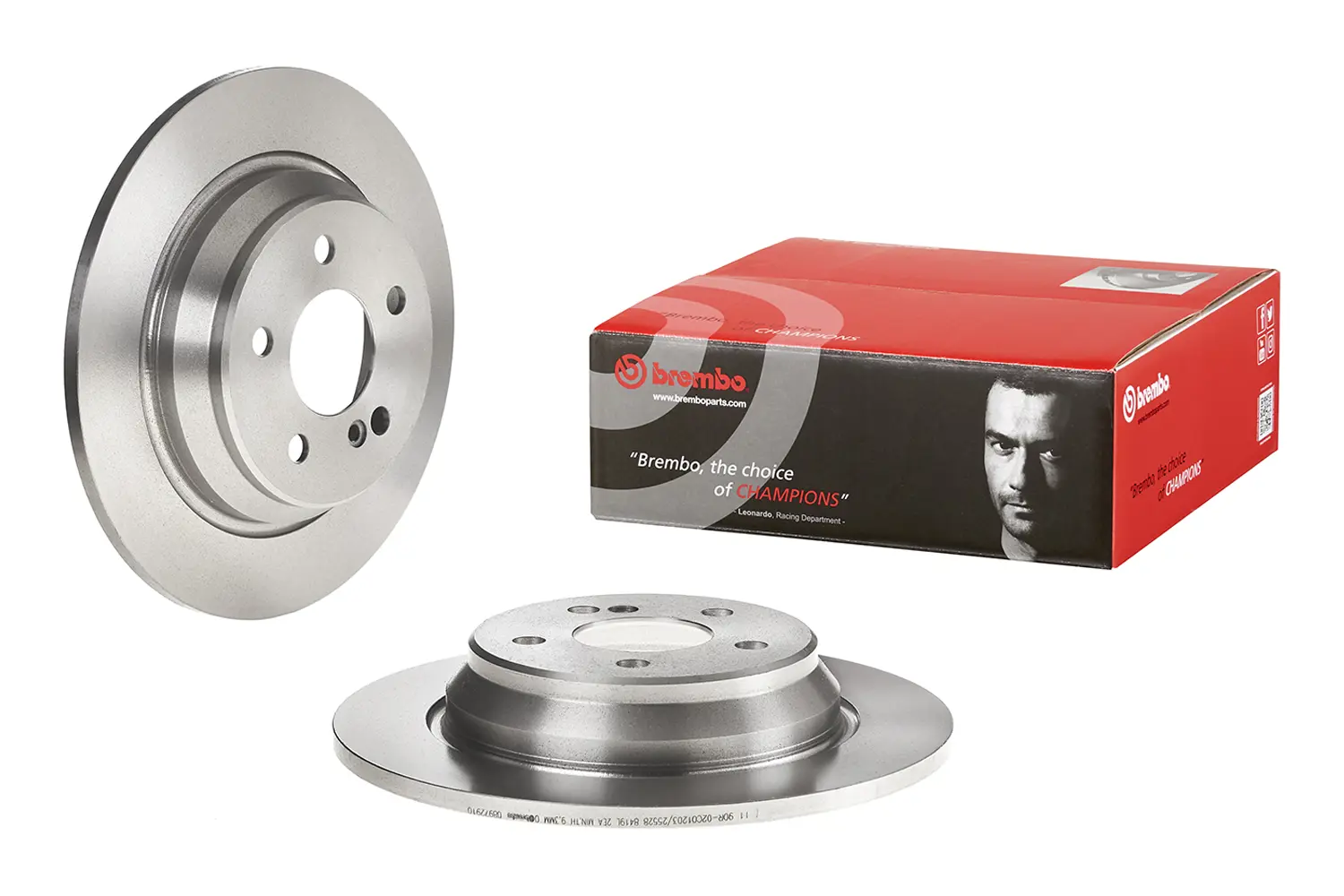

Disc

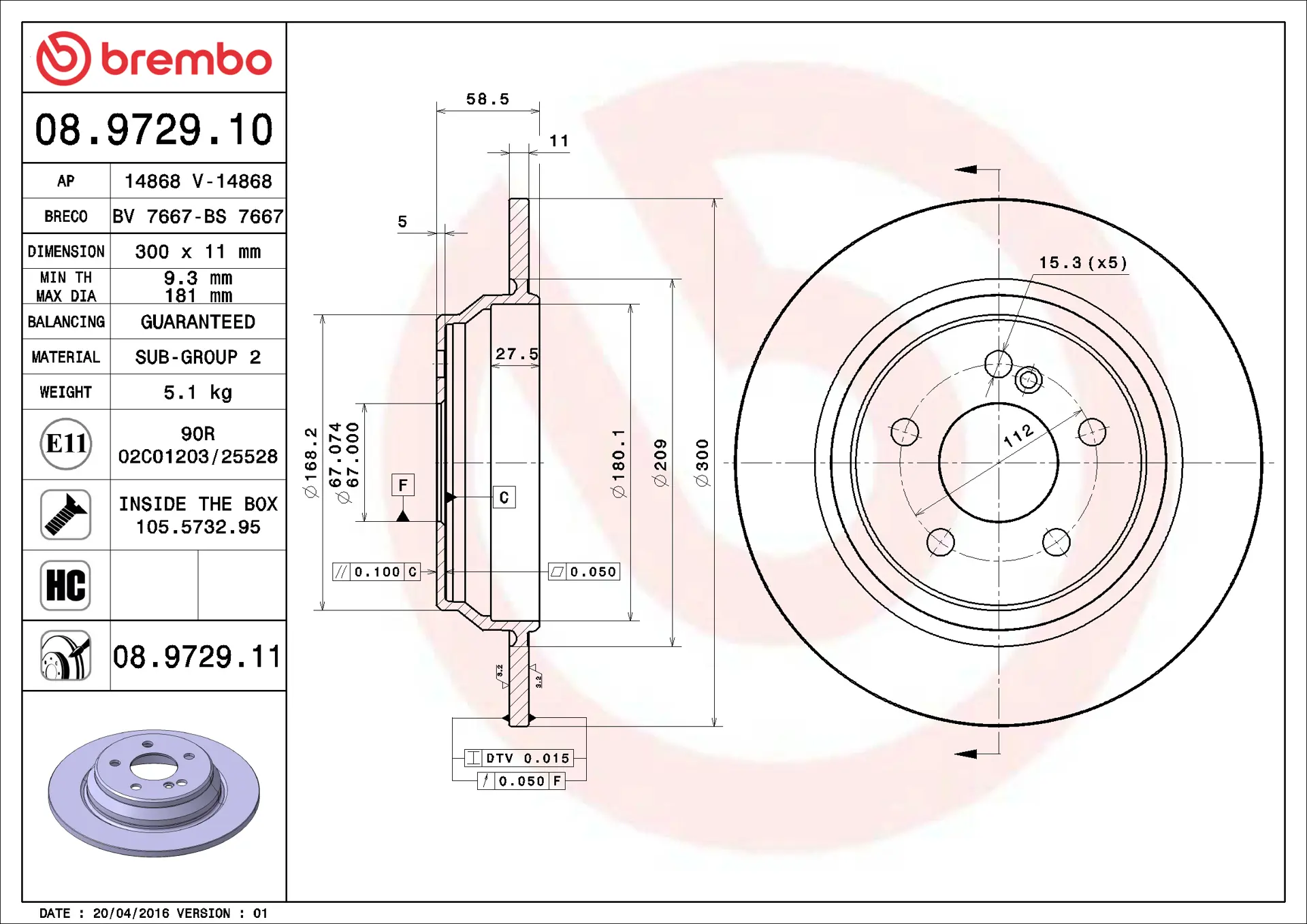

Disc technical data

Axle

Rear

Diameter

300 mm

Overall height (A)

58,5 mm

Centring diameter (B)

67 mm

Number of holes (C)

Thickness (TH)

11 mm

Minimum thickness

9,3 mm

Tightening torque

150 Nm

Unit per box

EANCode

8020584972915

Brand part numbers

Brembo 08.9729.10

AP 14868

Breco BS 7667

Where to buy

Download data sheet

Technical specifications

High Carbon disc (HC)

Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.

Find out more

Disc with fixing screw

By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.

Compatible vehicles

MERCEDES-BENZ

ModelS-CLASS (W220) TypeS 280 (220.063, 220.163) kW150 CV204 Year10/98 - 08/05

ModelS-CLASS (W220) TypeS 320 (220.065, 220.165) kW165 CV224 Year10/98 - 08/05

ModelS-CLASS (W220) TypeS 320 CDI (220.025, 220.125) kW150 CV204 Year09/02 - 08/05

ModelS-CLASS (W220) TypeS 320 CDI (220.026, 220.126) kW145 CV197 Year08/99 - 09/02

ModelS-CLASS (W220) TypeS 350 (220.067, 220.167) kW180 CV245 Year09/02 - 08/05

OE Part number

Compatible OE codes

MERCEDES-BENZ 2204230112

MERCEDES-BENZ A2204230112
