08.A920.10

Disc

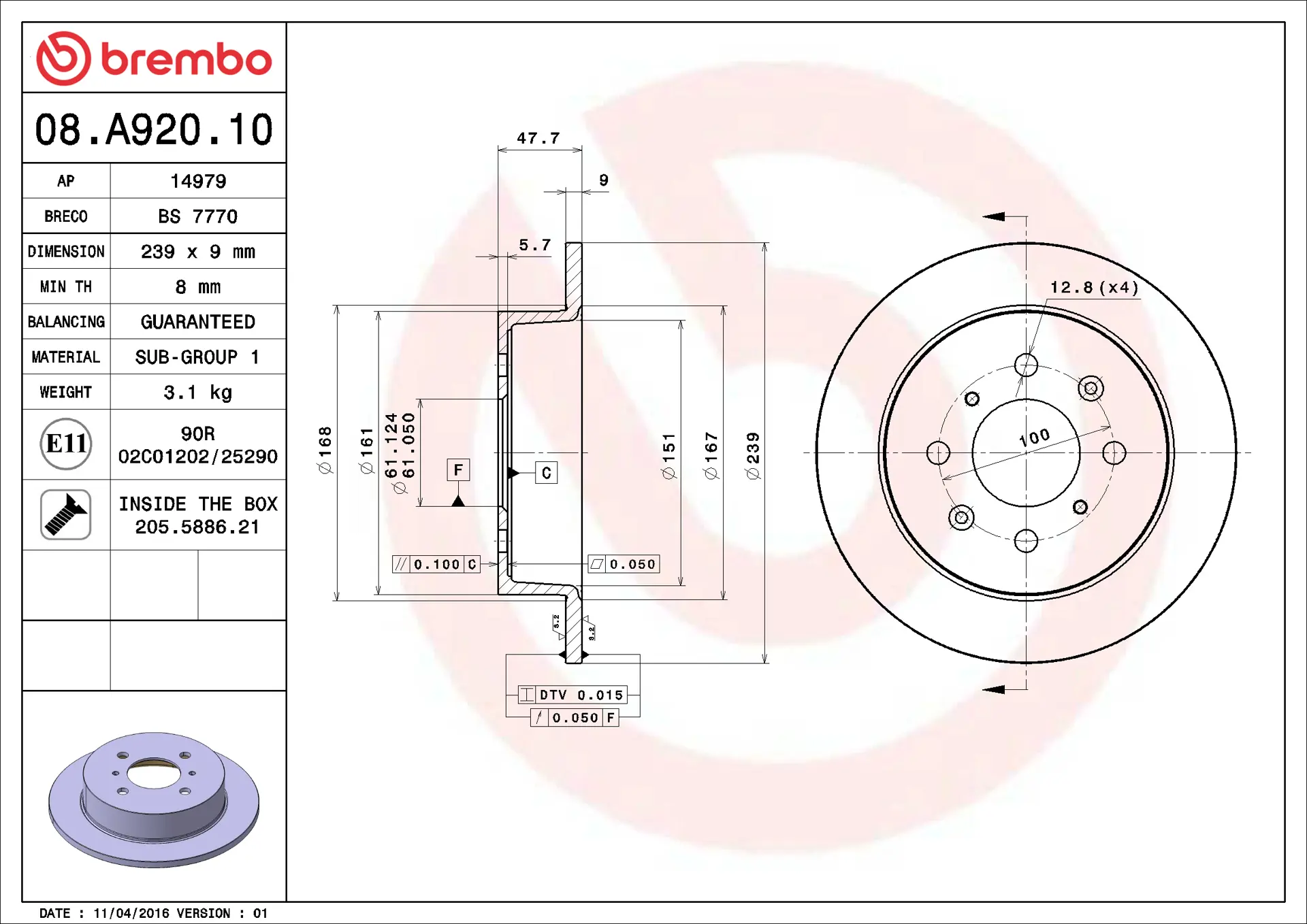

Disc technical data
Axle
Rear
Diameter (Diameter)
239 mm
Overall height (A)
47,6 mm
Centring diameter (B)
61 mm
Number of holes (C)
4
Thickness (TH)
9 mm
Minimum thickness
8 mm
Tightening torque
108 Nm
Unit per box
2
EANCode
8020584023198
Discs
Brand part numbers
Brembo 08.A920.10
AP 14979
Breco BS 7770
Technical specifications

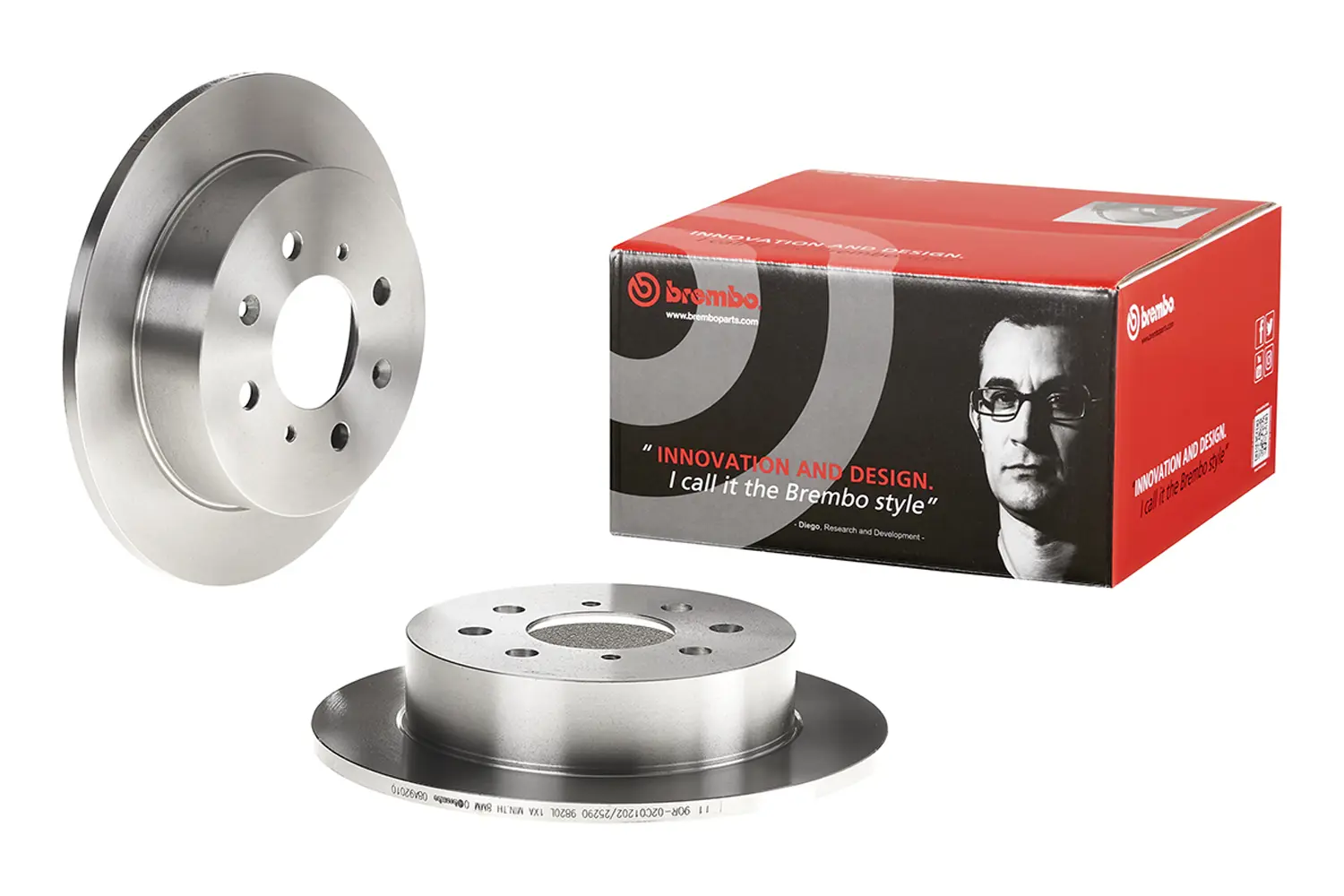

Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
HONDA 42510SR3A10
HONDA 42510SR3A11
HONDA 42510SR3J01
