08.C290.10

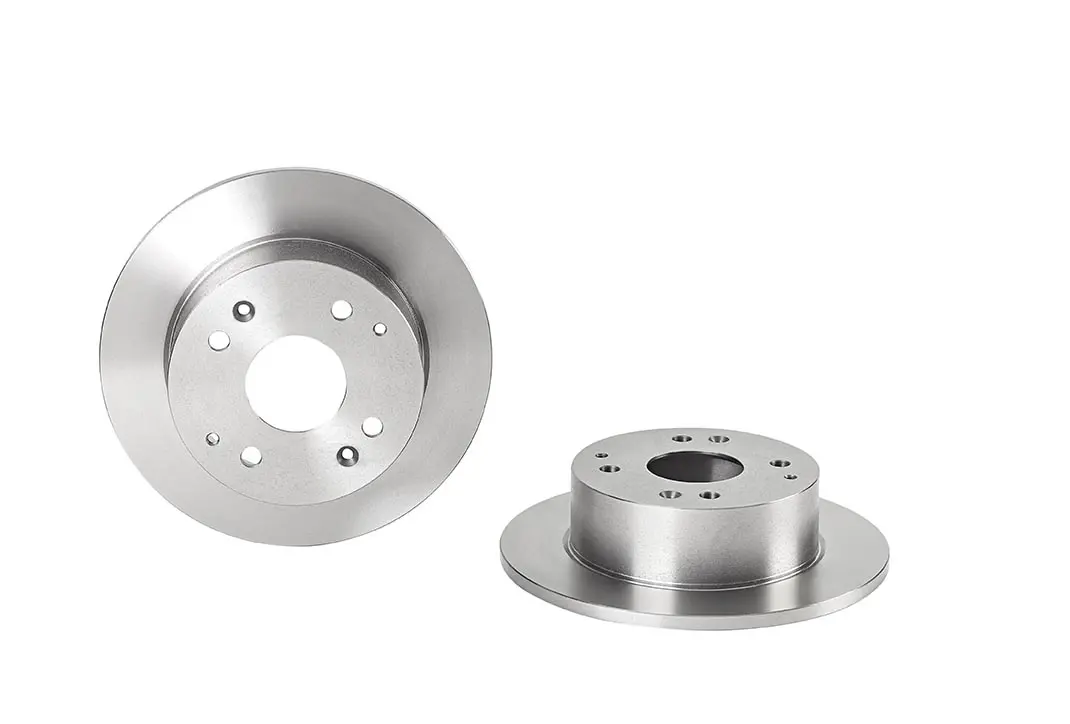

Disc

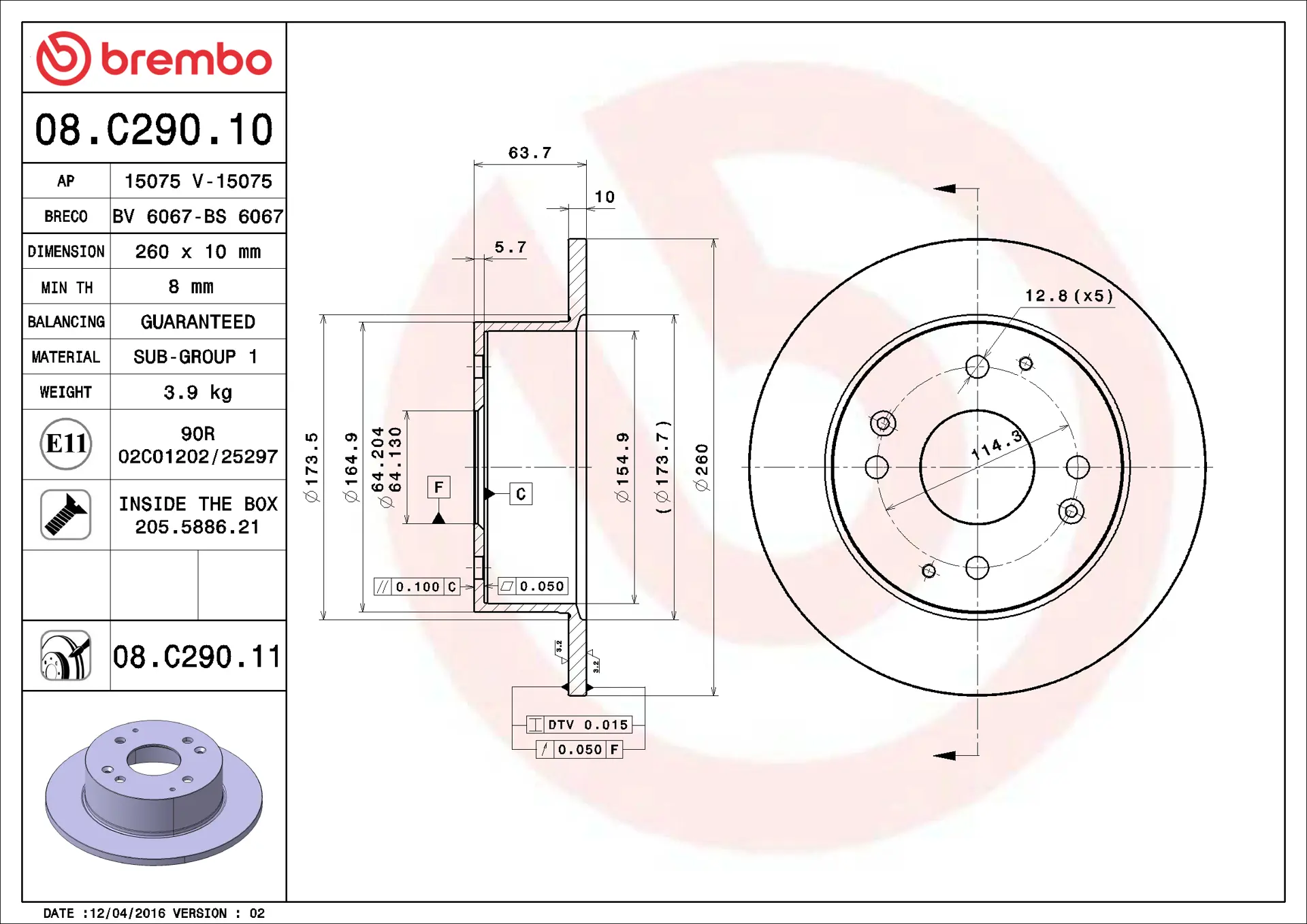

Disc technical data
Axle
Rear
Diameter (Diameter)
260 mm
Overall height (A)
63,7 mm
Centring diameter (B)
64,1 mm
Number of holes (C)
4
Thickness (TH)
10 mm
Minimum thickness
8 mm
Unit per box
2
EANCode
8020584213582
Discs
Brand part numbers
Brembo 08.C290.10
AP 15075
Breco BS 6067
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
HONDA 42510S1AE00
HONDA 42510S1AE10
HONDA 42510SL5950
