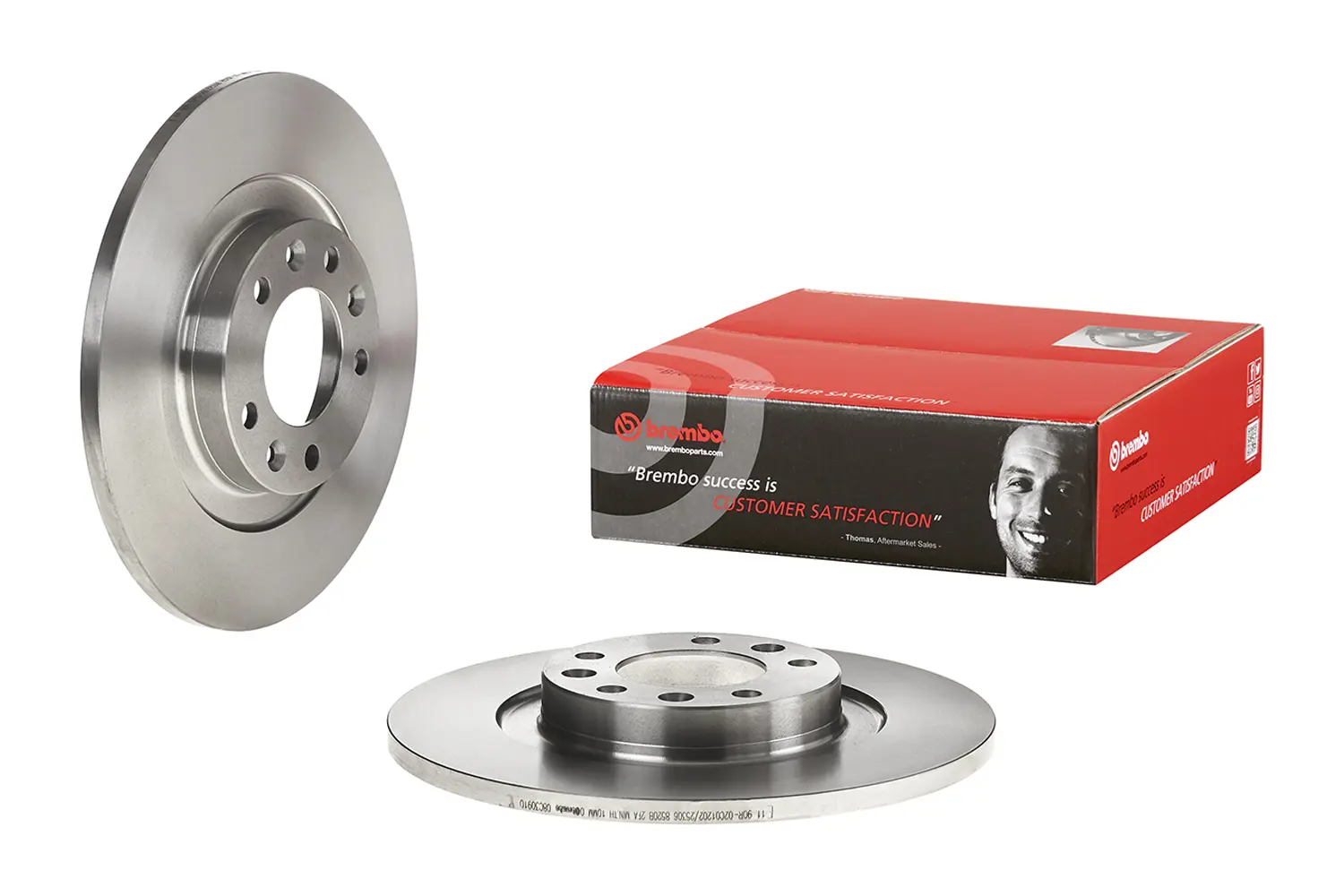

08.C309.10

Disc

Disc technical data

Axle

Rear

Diameter

290 mm

Overall height (A)

35 mm

Centring diameter (B)

71 mm

Number of holes (C)

Thickness (TH)

12 mm

Minimum thickness

10 mm

Unit per box

EANCode

8020584218990

Brand part numbers

Brembo 08.C309.10

AP 15083

Breco BS 6075

Where to buy

Download data sheet

Technical specifications

Disc with fixing screw

By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.

Compatible vehicles

CITROËN

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.2 THP 130 kW96 CV130 Year04/14

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 BlueHDi 100 kW73 CV99 Year01/15

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 BlueHDi 120 kW88 CV120 Year07/14

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 HDi / BlueHDi 115 kW85 CV115 Year09/13

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 HDi 90 kW68 CV92 Year09/13

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 THP 155 kW115 CV156 Year09/13

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 THP 165 kW121 CV165 Year07/14

ModelC4 GRAND PICASSO II (DA_, DE_) Type1.6 VTi 120 kW88 CV120 Year09/13

ModelC4 GRAND PICASSO II (DA_, DE_) Type2.0 BlueHDi 150 kW110 CV150 Year06/13

ModelC4 PICASSO II Type1.2 THP 110 kW81 CV110 Year04/16

ModelC4 PICASSO II Type1.2 THP 130 kW96 CV130 Year04/14

ModelC4 PICASSO II Type1.6 BlueHDi 100 kW73 CV99 Year12/14

ModelC4 PICASSO II Type1.6 BlueHDi 120 kW88 CV120 Year07/14

ModelC4 PICASSO II Type1.6 HDi / BlueHDi 115 kW85 CV115 Year02/13

ModelC4 PICASSO II Type1.6 HDi 90 kW68 CV92 Year02/13

ModelC4 PICASSO II Type1.6 THP 155 kW115 CV156 Year02/13

ModelC4 PICASSO II Type1.6 THP 165 kW121 CV165 Year07/14

ModelC4 PICASSO II Type1.6 VTi 120 kW88 CV120 Year02/13

ModelC4 PICASSO II Type2.0 BlueHDi 135 kW100 CV136 Year09/13

ModelC4 PICASSO II Type2.0 BlueHDi 150 kW110 CV150 Year09/13

ModelC4 SPACETOURER (3D_) Type1.2 PureTech 110 kW81 CV110 Year04/18

ModelC4 SPACETOURER (3D_) Type1.2 PureTech 130 kW96 CV131 Year04/18

ModelC4 SPACETOURER (3D_) Type1.5 BlueHDi 130 kW96 CV131 Year05/18

ModelC4 SPACETOURER (3D_) Type1.6 BlueHDi 100 kW73 CV99 Year04/18

ModelC4 SPACETOURER (3D_) Type1.6 BlueHDi 120 kW88 CV120 Year04/18

ModelC4 SPACETOURER (3D_) Type1.6 THP 165 kW121 CV165 Year04/18

ModelC4 SPACETOURER (3D_) Type2.0 BlueHDi 150 kW110 CV150 Year04/18

ModelC4 SPACETOURER (3D_) Type2.0 BlueHDi 160 kW120 CV163 Year04/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type1.2 PureTech 130 kW96 CV131 Year04/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type1.5 BlueHDi 130 kW96 CV131 Year05/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type1.6 BlueHDi 100 kW73 CV99 Year04/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type1.6 BlueHDi 120 kW88 CV120 Year04/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type1.6 THP 165 kW121 CV165 Year04/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type2.0 BlueHDi 150 kW110 CV150 Year04/18

ModelGRAND C4 SPACETOURER (3A_, 3E_) Type2.0 BlueHDi 160 kW120 CV163 Year04/18

ModelJUMPY Bus (V_) Type1.6 BlueHDi 115 kW85 CV115 Year04/16

ModelJUMPY Bus (V_) Type1.6 BlueHDi 95 kW70 CV95 Year04/16

ModelJUMPY Bus (V_) Type2.0 BlueHDi 150 kW110 CV150 Year04/16

ModelJUMPY Van (V_) Type1.6 BlueHDi 115 kW85 CV115 Year04/16

ModelJUMPY Van (V_) Type1.6 BlueHDi 95 kW70 CV95 Year04/16

ModelJUMPY Van (V_) Type2.0 BlueHDi 120 kW90 CV122 Year04/16

ModelJUMPY Van (V_) Type2.0 BlueHDi 150 kW110 CV150 Year04/16

ModelJUMPY Van (V_) Type2.0 BlueHDi 180 kW130 CV177 Year04/16

ModelSPACETOURER Bus (V_) Type2.0 BlueHDi 120 kW90 CV122 Year12/19

DS

ModelDS 7 Crossback (J_) Type1.5 BlueHDi 130 kW96 CV130 Year09/17

ModelDS 7 Crossback (J_) Type1.6 PureTech 225 kW165 CV225 Year09/17

ModelDS 7 Crossback (J_) Type2.0 BlueHDi 180 kW130 CV177 Year09/17

OPEL

ModelGRANDLAND X (A18) Type1.2 (75) kW96 CV131 Year06/17

ModelGRANDLAND X (A18) Type1.6 Turbo D (75) kW88 CV120 Year06/17

PEUGEOT

Model3008 SUV (M_) Type1.2 THP/ PureTech 130 kW96 CV131 Year05/16

Model3008 SUV (M_) Type1.6 BlueHDi 100 kW73 CV100 Year11/16

Model3008 SUV (M_) Type1.6 BlueHDi 115 kW85 CV116 Year11/16

Model3008 SUV (M_) Type1.6 BlueHDi 120 kW88 CV120 Year05/16

Model3008 SUV (M_) Type1.6 THP 165 kW121 CV165 Year05/16

Model3008 SUV (M_) Type2.0 BlueHDi 136 kW100 CV136 Year11/16

Model3008 SUV (M_) Type2.0 BlueHDi 150 kW110 CV150 Year05/16

Model3008 SUV (M_) Type2.0 BlueHDi 180 kW133 CV181 Year05/16

Model308 II (LB_, LP_, LW_, LH_, L3_) Type1.6 GT 205 kW151 CV205 Year06/14

Model308 II (LB_, LP_, LW_, LH_, L3_) Type1.6 GTi kW184 CV250 Year08/15

Model308 II (LB_, LP_, LW_, LH_, L3_) Type1.6 GTi (L35GNH) kW200 CV272 Year06/15

Model308 II (LB_, LP_, LW_, LH_, L3_) Type1.6 THP 150 kW110 CV150 Year03/14

Model308 II (LB_, LP_, LW_, LH_, L3_) Type1.6 THP 163 kW120 CV163 Year06/14

Model308 II (LB_, LP_, LW_, LH_, L3_) Type2.0 BlueHDi 150 kW110 CV150 Year11/13

Model308 II (LB_, LP_, LW_, LH_, L3_) Type2.0 GT BlueHDi 180 kW133 CV181 Year06/14

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type1.6 GT 205 kW151 CV205 Year02/15

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type1.6 THP 125 kW92 CV125 Year03/14

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type1.6 THP 150 (L45GXA) kW110 CV150 Year03/14

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type1.6 THP 155 kW115 CV156 Year03/14

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type1.6 VTi (LWNFPA) kW85 CV115 Year03/14

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type2.0 BlueHDi 150 kW110 CV150 Year03/14

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type2.0 GT BlueHDi 180 kW132 CV179 Year06/17

Model308 SW II (LC_, LJ_, LR_, LX_, L4_) Type2.0 GT HDi 180 / BlueHDi 180 kW133 CV181 Year06/14

Model5008 II (MC_, MJ_, MR_, M4_) Type1.2 (MRHNYH, MRHNYW, MRHNSJ) kW96 CV131 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type1.6 BlueHDi 100 kW73 CV99 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type1.6 BlueHDi 115 kW85 CV116 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type1.6 BlueHDi 120 kW88 CV120 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type1.6 THP 165 kW121 CV165 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type2.0 BlueHDi 136 kW100 CV136 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type2.0 BlueHDi 150 kW110 CV150 Year12/16

Model5008 II (MC_, MJ_, MR_, M4_) Type2.0 BlueHDi 180 kW133 CV181 Year12/16

ModelEXPERT Van (V_) Type1.6 BlueHDi 115 kW85 CV115 Year04/16

ModelEXPERT Van (V_) Type1.6 BlueHDi 95 kW70 CV95 Year04/16

ModelEXPERT Van (V_) Type2.0 BlueHDi 120 kW90 CV122 Year04/16

ModelEXPERT Van (V_) Type2.0 BlueHDi 150 kW110 CV150 Year04/16

ModelEXPERT Van (V_) Type2.0 BlueHDi 180 kW130 CV178 Year04/16

ModelTRAVELLER Bus (V_) Type1.6 BlueHDi 115 kW85 CV115 Year04/16

ModelTRAVELLER Bus (V_) Type1.6 BlueHDi 95 kW70 CV95 Year04/16

ModelTRAVELLER Bus (V_) Type2.0 BlueHDi 150 kW110 CV150 Year04/16

ModelTRAVELLER Bus (V_) Type2.0 BlueHDi 180 kW130 CV178 Year04/16

TOYOTA

ModelPROACE Bus (MDZ_) Type1.6 D4d (MDZ2) kW85 CV116 Year02/16

ModelPROACE Bus (MDZ_) Type1.6 D4d (MDZ9) kW70 CV95 Year02/16

ModelPROACE Bus (MDZ_) Type2.0 D4d (MDZ4) kW110 CV150 Year02/16

ModelPROACE Van (MDZ_) Type1.6 D4d (MDZ2) kW85 CV116 Year02/16

ModelPROACE Van (MDZ_) Type1.6 D4d (MDZ9) kW70 CV95 Year02/16

ModelPROACE Van (MDZ_) Type2.0 D4d (MDZ3) kW90 CV122 Year02/16

ModelPROACE Van (MDZ_) Type2.0 D4d (MDZ4) kW110 CV150 Year02/16

ModelPROACE Van (MDZ_) Type2.0 D4d (MDZ6, MDZ5) kW130 CV177 Year02/16

VAUXHALL

ModelGRANDLAND X (A18) Type1.2 Turbo (75) kW96 CV131 Year06/17

ModelGRANDLAND X (A18) Type1.6 Turbo D (75) kW88 CV120 Year06/17

ModelGRANDLAND X (A18) Type2.0 D (75) kW130 CV177 Year10/17

OE Part number

Compatible OE codes

CITROËN 1609583080

OPEL 3637360

PEUGEOT 1609583080

TOYOTA SU001A6145
