09.4486.20

Disc

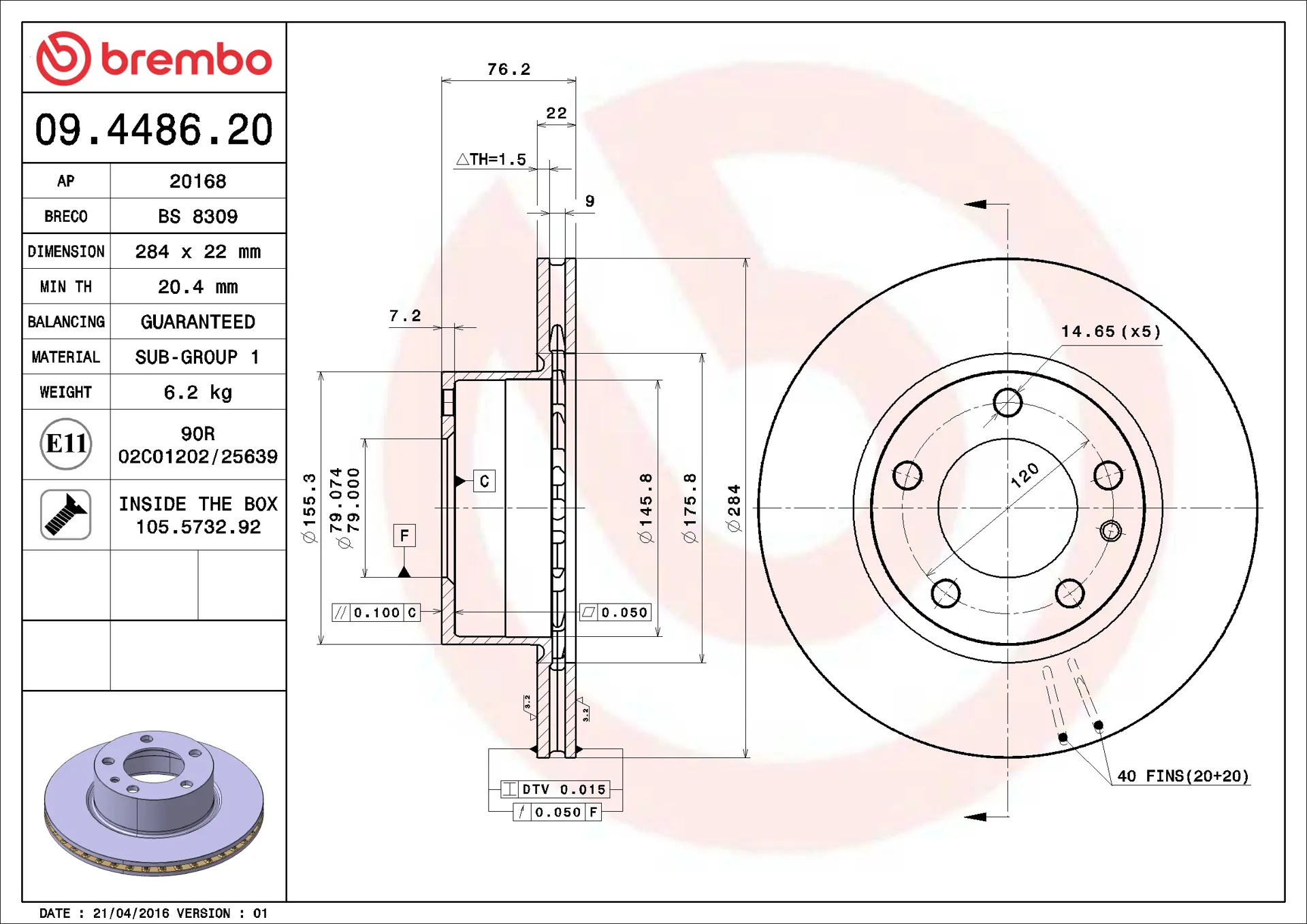

Disc technical data
Axle
Front
Diameter (Diameter)
284 mm
Overall height (A)
76,1 mm
Centring diameter (B)
79 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20,4 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584448625
Discs
Brand part numbers
Brembo 09.4486.20
AP 20168
Breco BS 8309
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
BMW 34111151655
BMW 34111151656
BMW 34111163135
BMW 34111163136
