Catalogue Discs 09.4869.41

09.4869.41

Disc
Compare
In the comparator
Add to favourites
My Favourites
Products compared

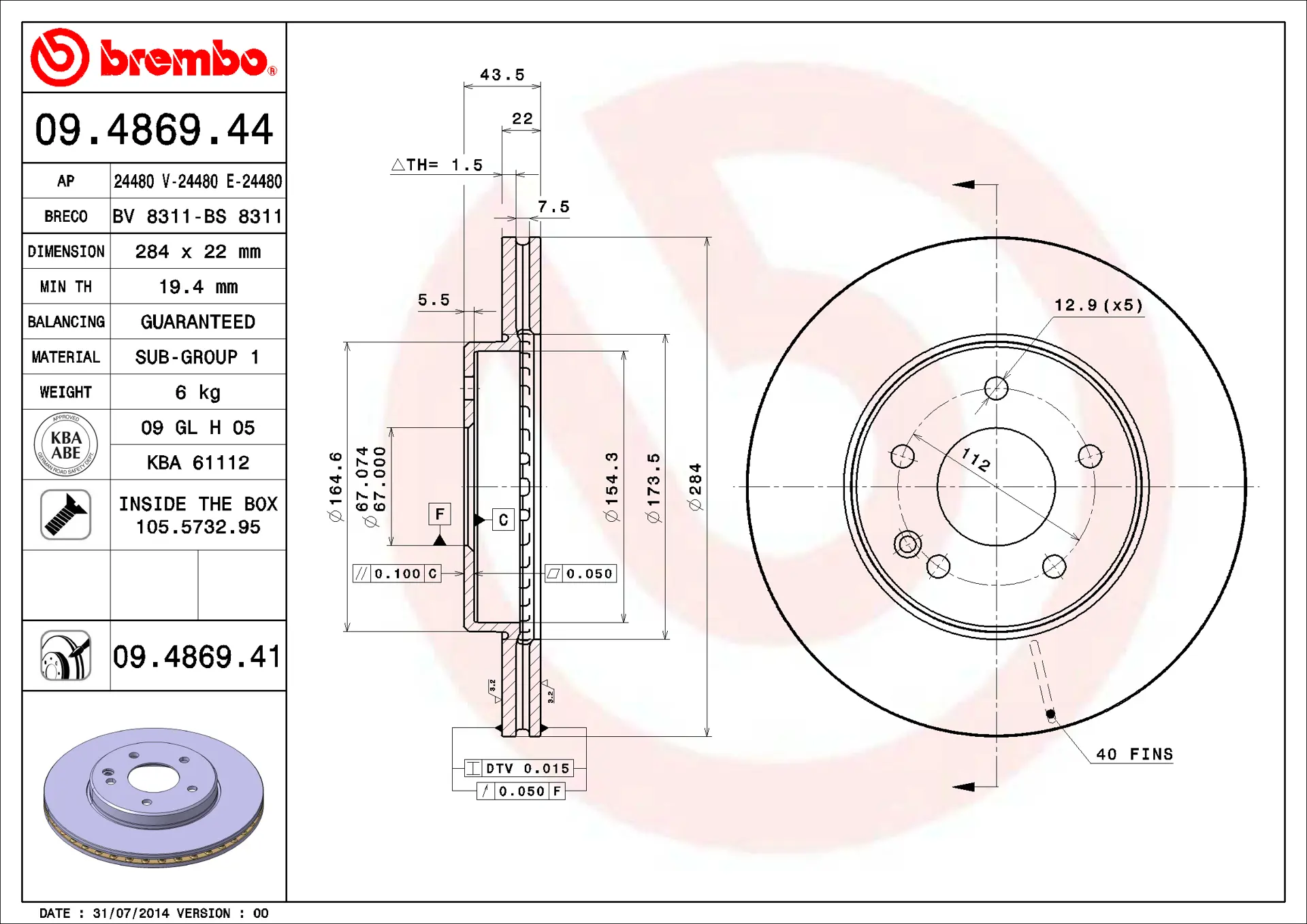

Disc technical data
Axle
Front
Diameter
284 mm
Overall height (A)
43,5 mm
Centring diameter (B)
67 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
19,4 mm
Tightening torque
110 Nm
Unit per box
2
EANCode
8020584030912
Discs
Brand part numbers
Brembo 09.4869.41
AP 24480 V
Breco BV 8311
Where to buy
Download data sheet
09.4869.41
09.4869.41
09.4869.41
Technical specifications

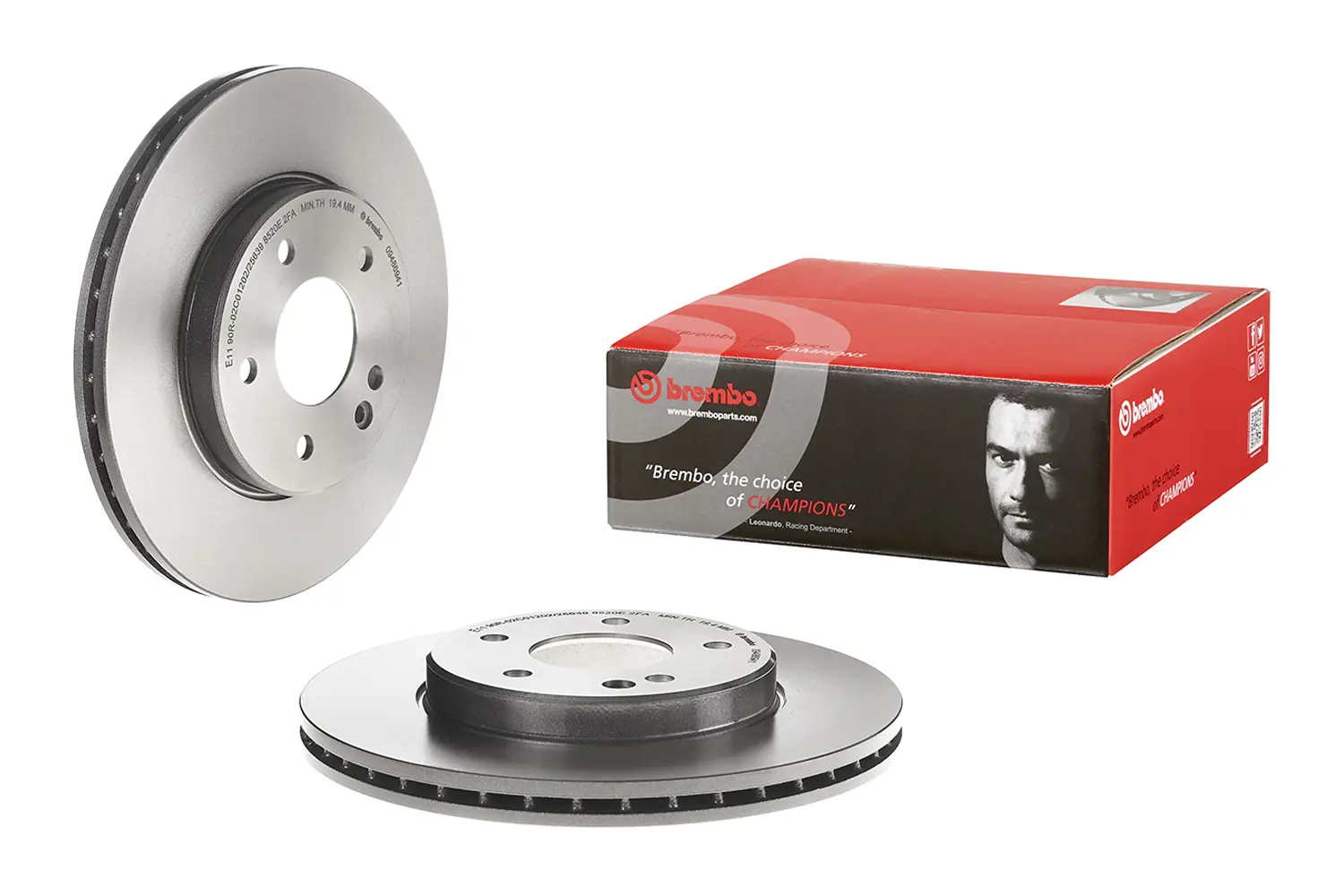

Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

MERCEDES-BENZ

Model Type kW CV Year
ModelC-CLASS (W202) TypeC 200 (202.020) kW100 CV136 Year01/94 - 05/00
ModelC-CLASS (W202) TypeC 200 CDI (202.134) kW75 CV102 Year03/98 - 05/00
ModelC-CLASS (W202) TypeC 220 (202.022) kW110 CV150 Year03/93 - 05/00
ModelC-CLASS (W202) TypeC 220 CDI (202.133) kW92 CV125 Year09/97 - 05/00
ModelC-CLASS (W202) TypeC 230 (202.023) kW110 CV150 Year06/96 - 06/97
ModelC-CLASS (W202) TypeC 280 (202.028) kW142 CV193 Year05/93 - 05/00
ModelC-CLASS T-Model (S202) TypeC 180 T (202.078) kW90 CV122 Year06/96 - 09/00
ModelC-CLASS T-Model (S202) TypeC 180 T (202.081) kW95 CV129 Year09/00 - 03/01
ModelC-CLASS T-Model (S202) TypeC 200 T (202.080) kW100 CV136 Year06/96 - 03/01
ModelC-CLASS T-Model (S202) TypeC 200 T CDI (202.194) kW75 CV102 Year03/98 - 03/01
ModelC-CLASS T-Model (S202) TypeC 200 T D (202.180) kW65 CV88 Year10/96 - 03/01
ModelC-CLASS T-Model (S202) TypeC 220 T CDI (202.193) kW92 CV125 Year09/97 - 03/01
ModelC-CLASS T-Model (S202) TypeC 220 T D (202.182) kW55 CV75 Year06/96 - 03/01
ModelC-CLASS T-Model (S202) TypeC 220 T D (202.182) kW70 CV95 Year06/96 - 09/98
ModelC-CLASS T-Model (S202) TypeC 230 T (202.083) kW110 CV150 Year06/96 - 06/98
OE Part number
Compatible OE codes
MERCEDES-BENZ 2024210712
MERCEDES-BENZ 2024210912
MERCEDES-BENZ A2024210712
MERCEDES-BENZ A2024210912
