09.4869.44

Disc
Replaces: 09.4869.20

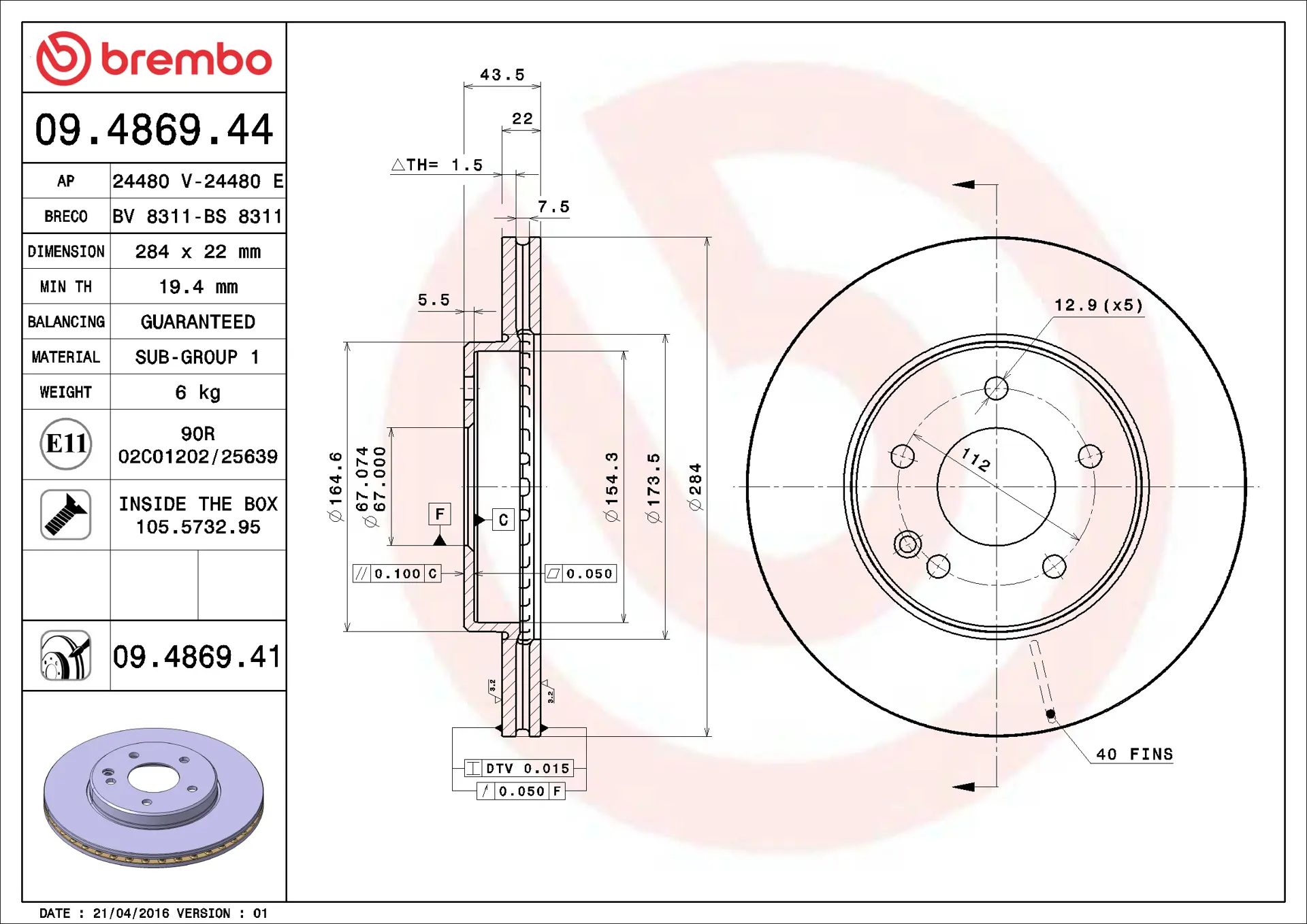

Disc technical data
Axle
Front
Diameter
284 mm
Overall height (A)
43,5 mm
Centring diameter (B)
67 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
19,4 mm
Tightening torque
110 Nm
Unit per box
2
EANCode
8020584013052
Discs
Brand part numbers
Brembo 09.4869.44
AP 24480 E
Breco BS 8311
Technical specifications

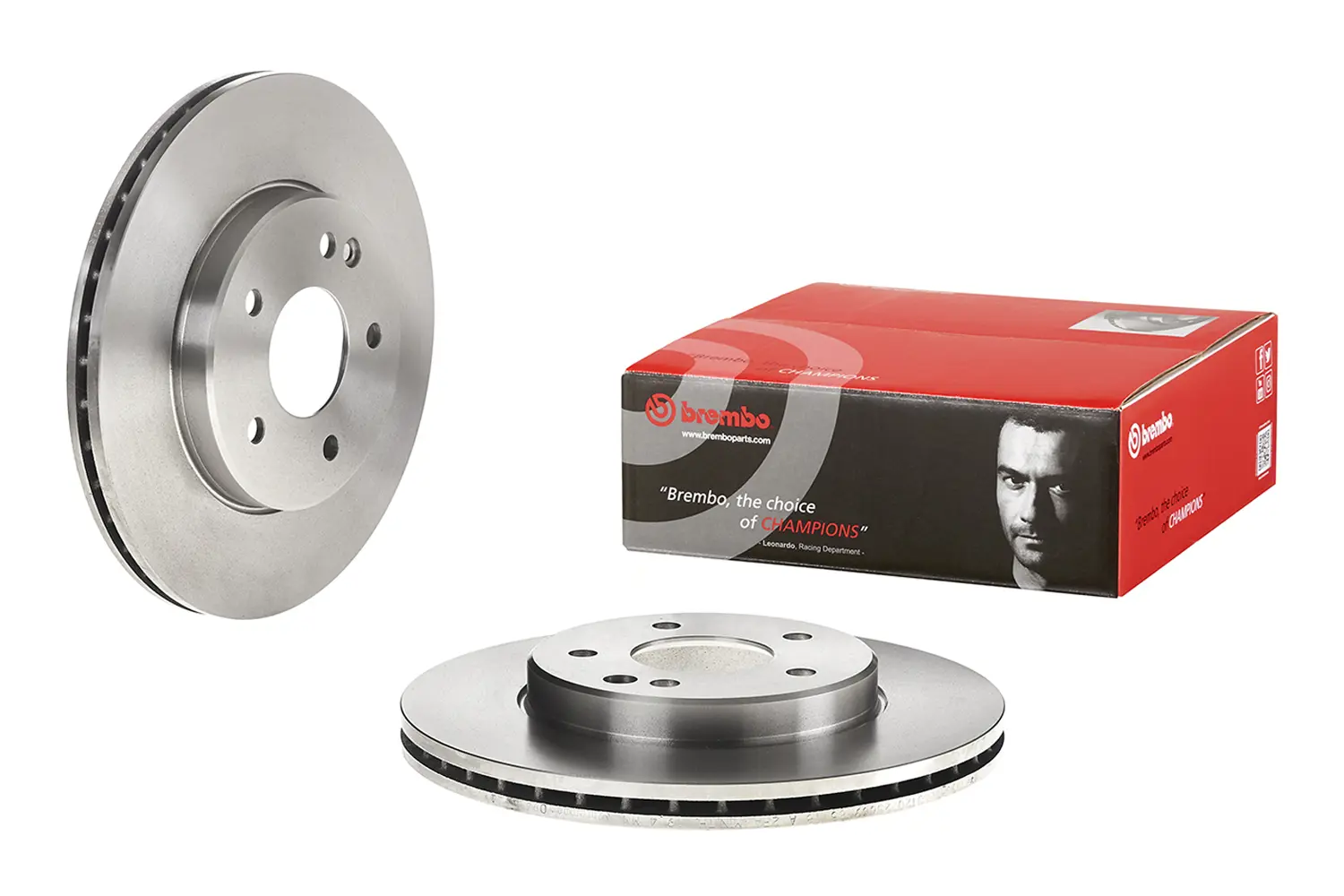

Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
MERCEDES-BENZ 2024210712
MERCEDES-BENZ 2024210912
MERCEDES-BENZ A2024210712
MERCEDES-BENZ A2024210912
