09.5166.14

Disc

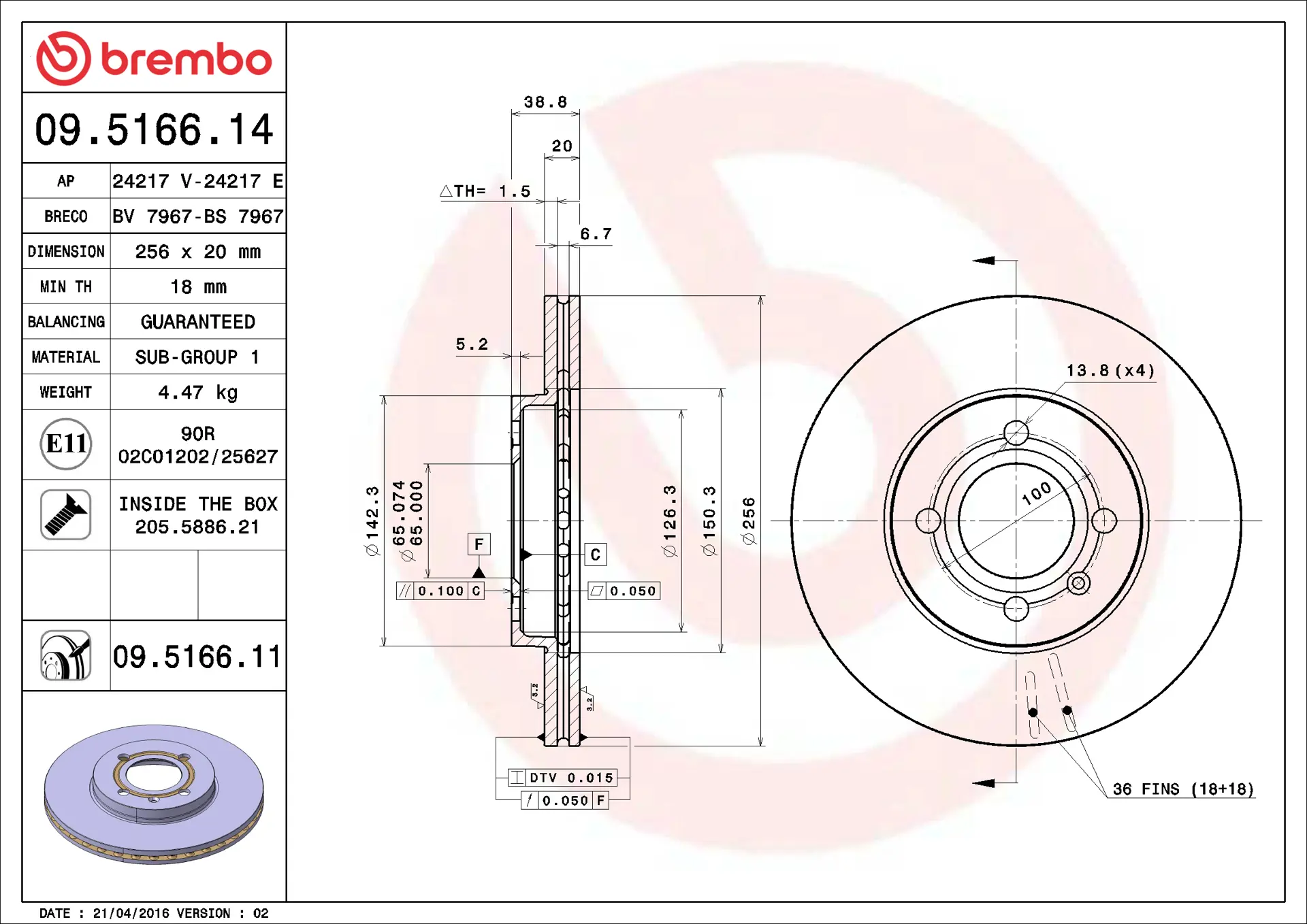

Disc technical data
Axle
Front
Diameter
256 mm
Overall height (A)
38,7 mm
Centring diameter (B)
65 mm
Number of holes (C)
4
Thickness (TH)
20 mm
Minimum thickness
18 mm
Tightening torque
110 Nm
Unit per box
2
EANCode
8020584012543
Discs
Brand part numbers
Brembo 09.5166.14
AP 24217 E
Breco BS 7967
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
Compatible vehicles

SEAT

VW

OE Part number
Compatible OE codes
SEAT 321615301D
VW 321615301D
VW 6N0615301D
VW 6NO615301D
VW (FAW) 321615301D
VW (FAW) 3256152893
