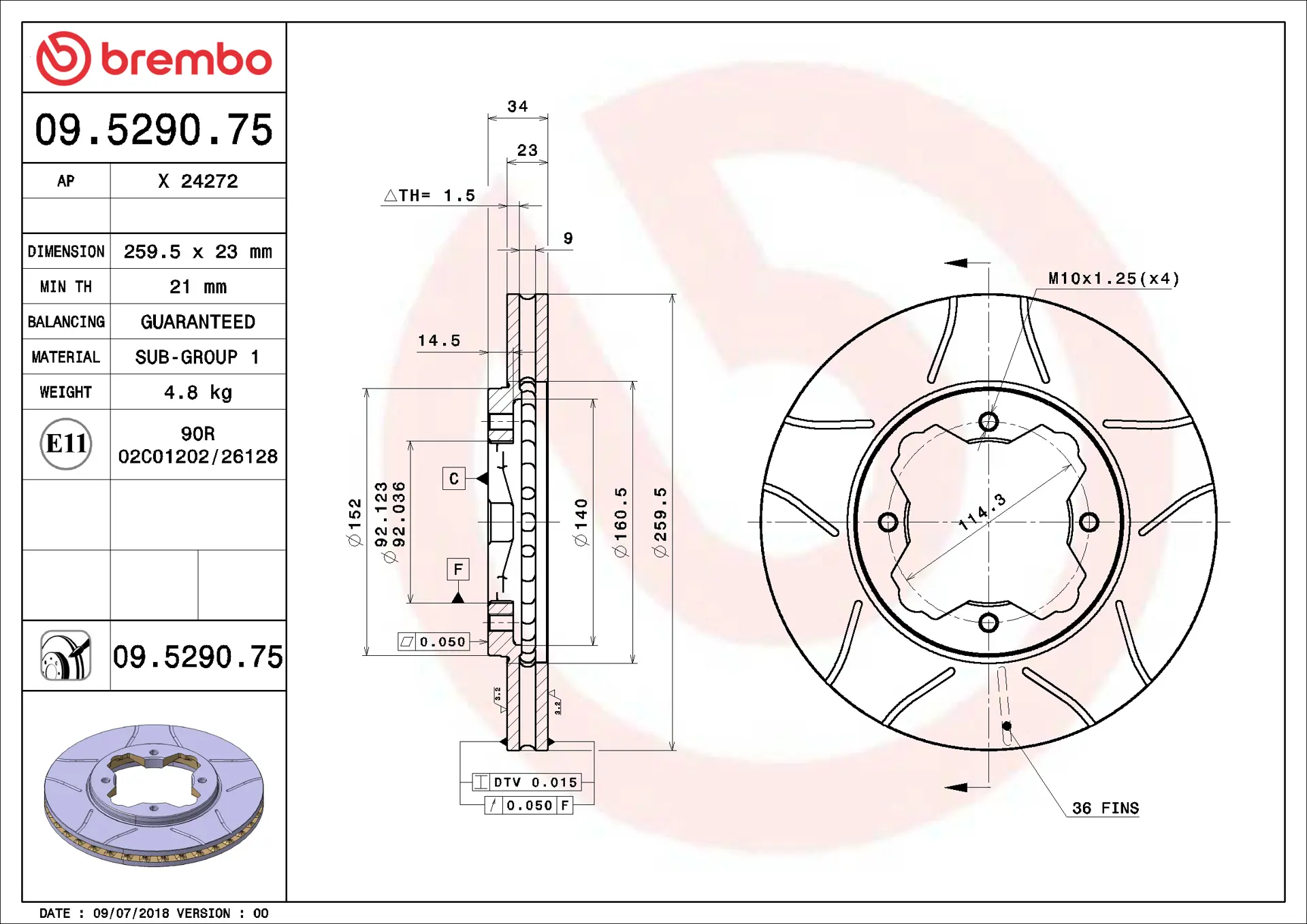

Disc technical data
259 mm
Overall height (A)
34 mm
Centring diameter (B)
92 mm
Number of holes (C)
Thickness (TH)
23 mm
Minimum thickness
21 mm
Tightening torque
108 Nm
Unit per box
Brand part numbers
Brembo 09.5290.75
AP X 24272
UNECE R 90 homologation
The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications

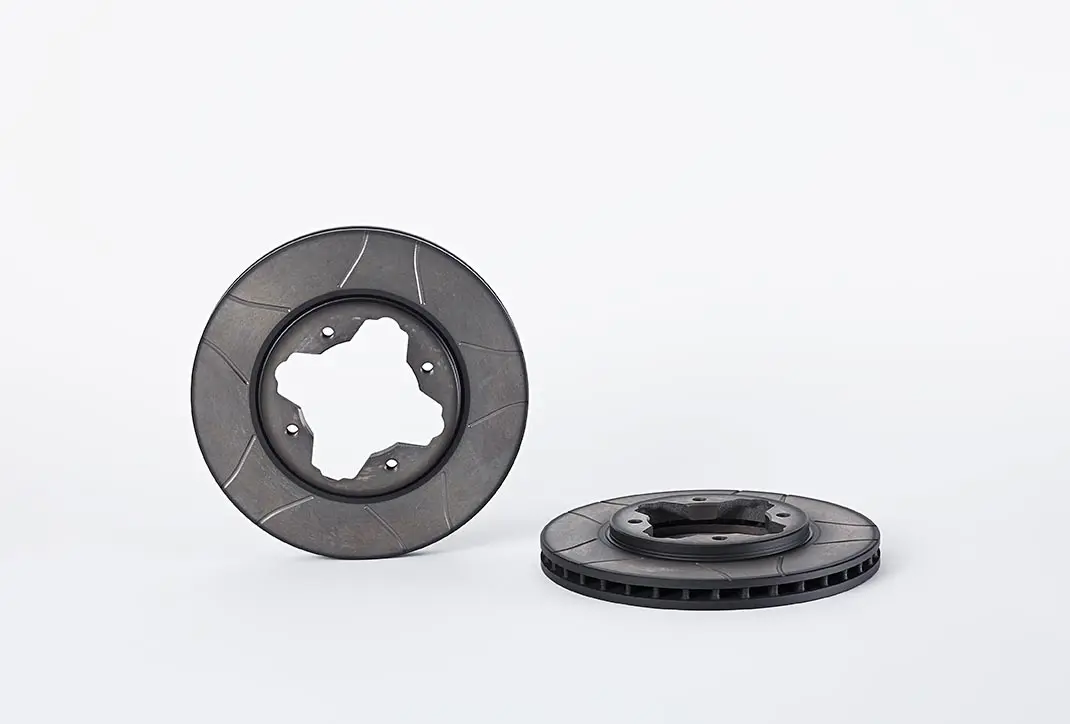

Brembo Max
Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
ACURA 45251SM4000
ACURA 45251SM4010
ACURA 45251SM4020
HONDA 45251SM4000
HONDA 45251SM4010
HONDA 45251SM4020
HONDA 45251SN7E40
