Catalogue Discs 09.5486.50

09.5486.50

Disc
Compare
In the comparator
Add to favourites
My Favourites
Products compared

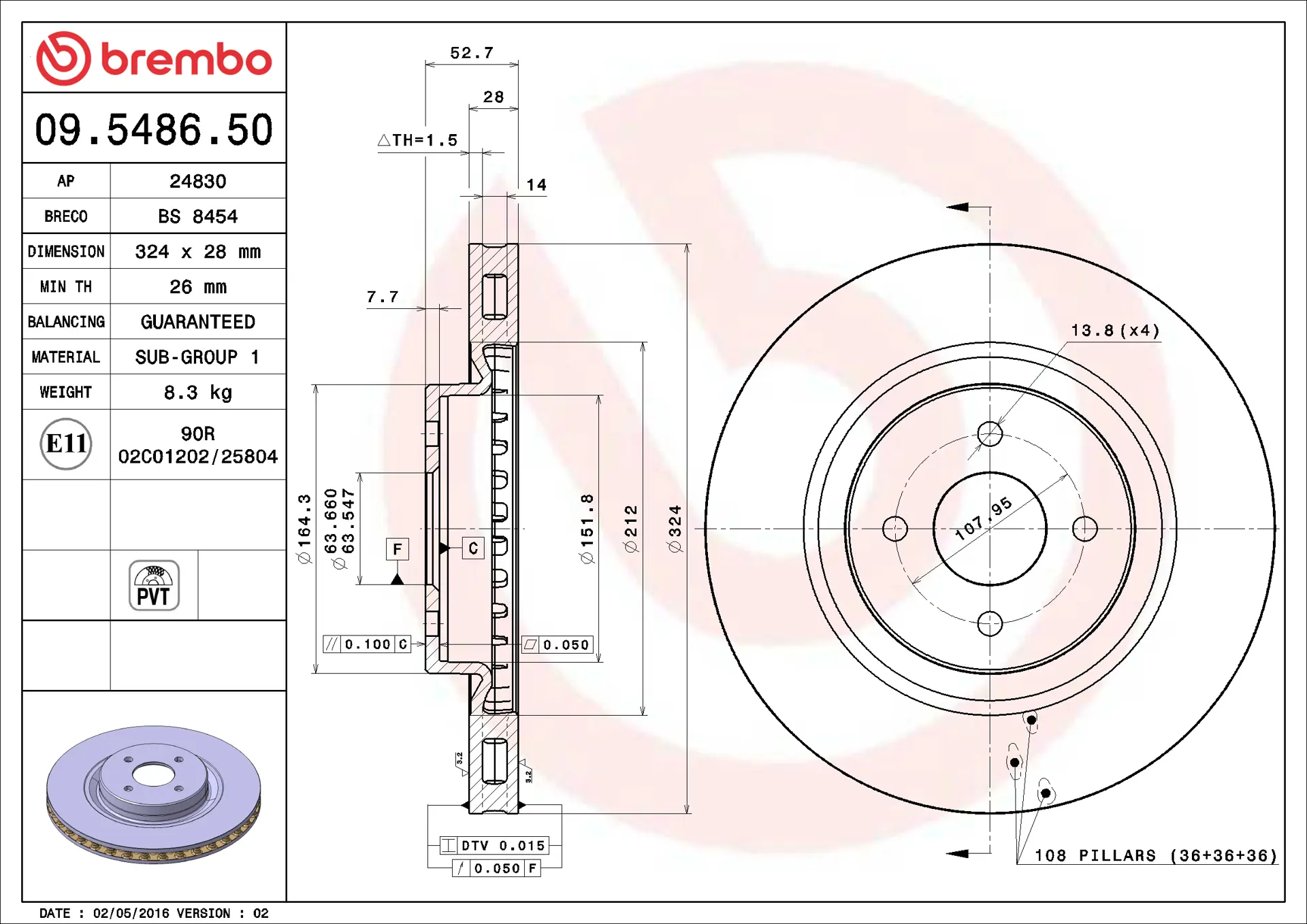

Disc technical data
Axle
Front
Diameter
324 mm
Overall height (A)
52,7 mm
Centring diameter (B)
63,6 mm
Number of holes (C)
4
Thickness (TH)
28 mm
Minimum thickness
26 mm
Tightening torque
130 Nm
Unit per box
2
EANCode
8020584548653
Discs
Brand part numbers
Brembo 09.5486.50
AP 24830
Breco BS 8454
Where to buy
Download data sheet
09.5486.50
09.5486.50
09.5486.50
Technical specifications
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
Compatible vehicles

FORD

Model Type Kw Year
ModelFOCUS (DAW, DBW) TypeRS Kw158 Year10/02 - 11/04
OE Part number
Compatible OE codes
FORD 1134864
