09.5509.75

Disc

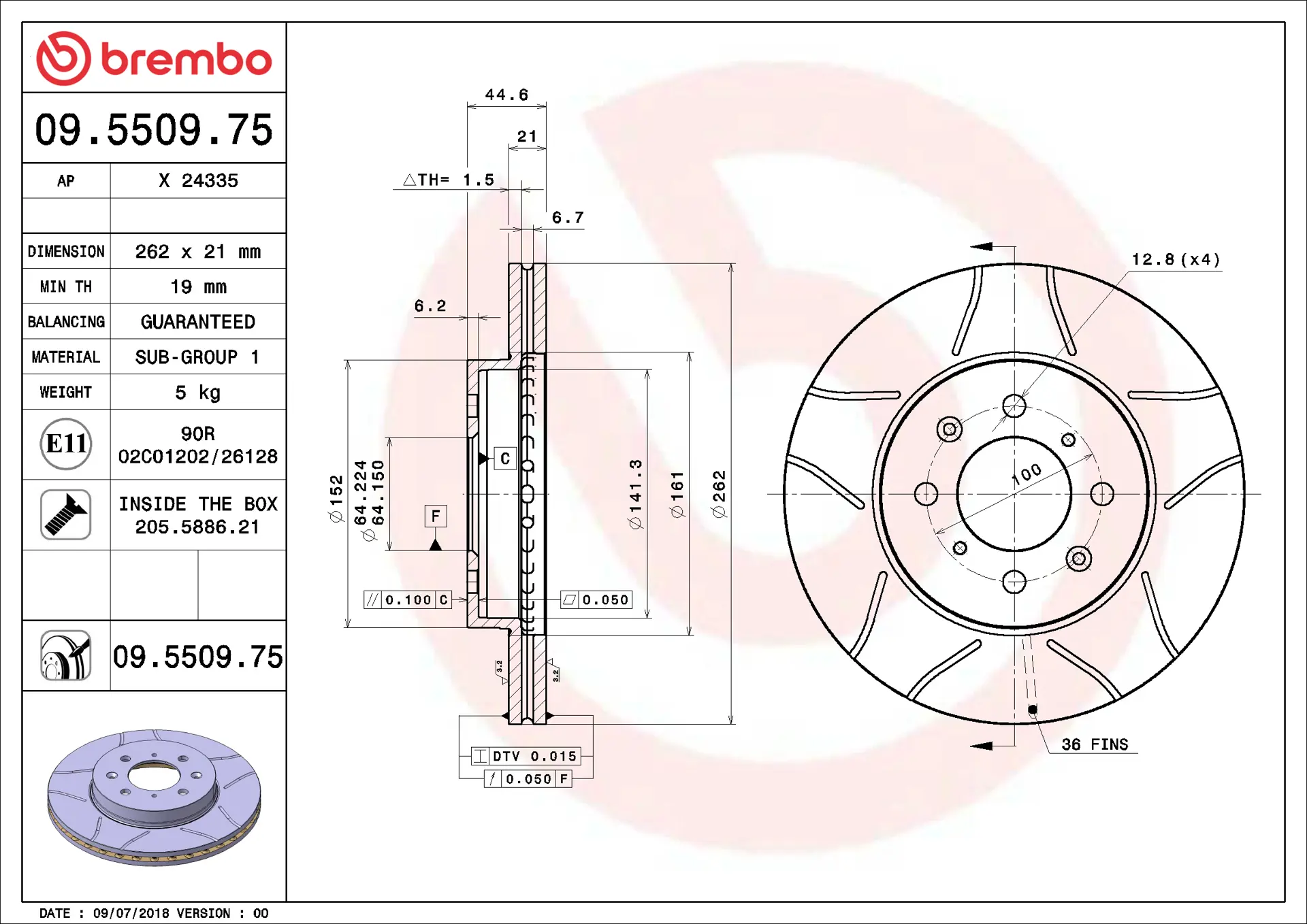

Disc technical data
Axle
Front
Diameter (Diameter)
262 mm
Overall height (A)
44,6 mm
Centring diameter (B)
64,2 mm
Number of holes (C)
4
Thickness (TH)
21 mm
Minimum thickness
19 mm
Tightening torque
108 Nm
Unit per box
2
EANCode
8020584011379
Discs
Brand part numbers
Brembo 09.5509.75
AP X 24335
Certification
UNECE R 90 homologation
The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications
Brembo Max
Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

EUROPESTAR

HONDA

HONDA (DONGFENG)

HONDA (GAC)

MG

ROVER

OE Part number
Compatible OE codes
ACURA 45251SK7000
ACURA 45251SK7A00
ACURA 45251SR0A00
ACURA 45251SR0A10
HONDA 45251SK7000
HONDA 45251SK7A00
HONDA 45251SK7A10
HONDA 45251SK7J00
HONDA 45251SR0A00
HONDA 45251SR0A10
HONDA 45251ST3E10
MG SDB000990
MG SDB000991
MG SDB100600
ROVER GBD90840
ROVER SDB100600
