09.6727.77

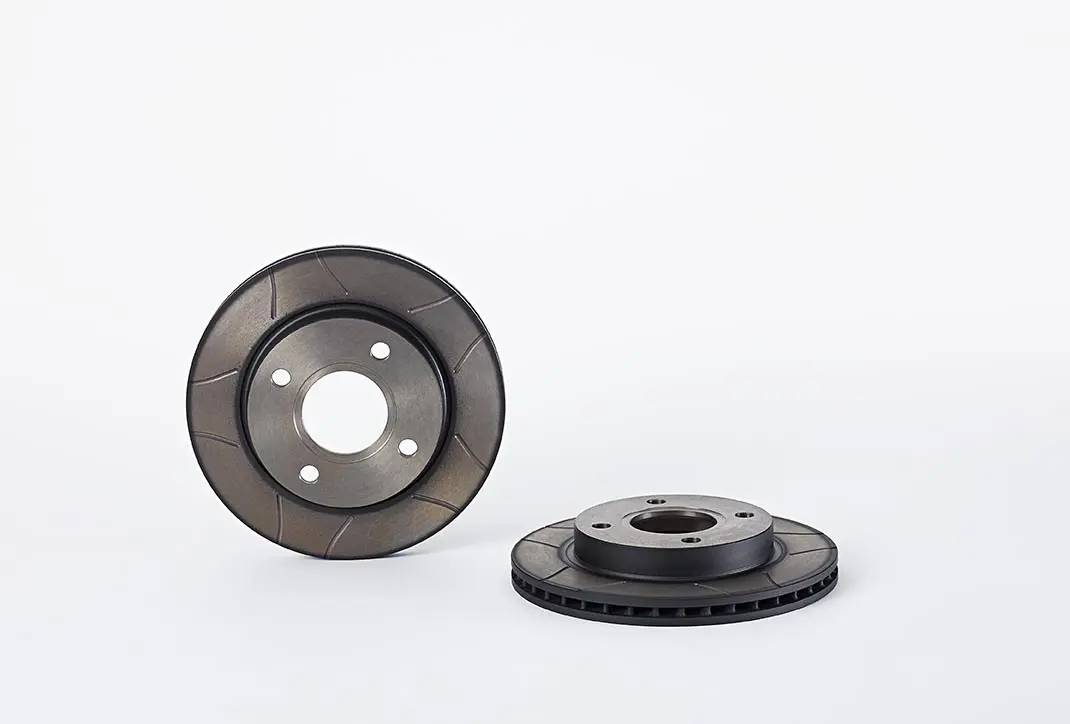

Disc

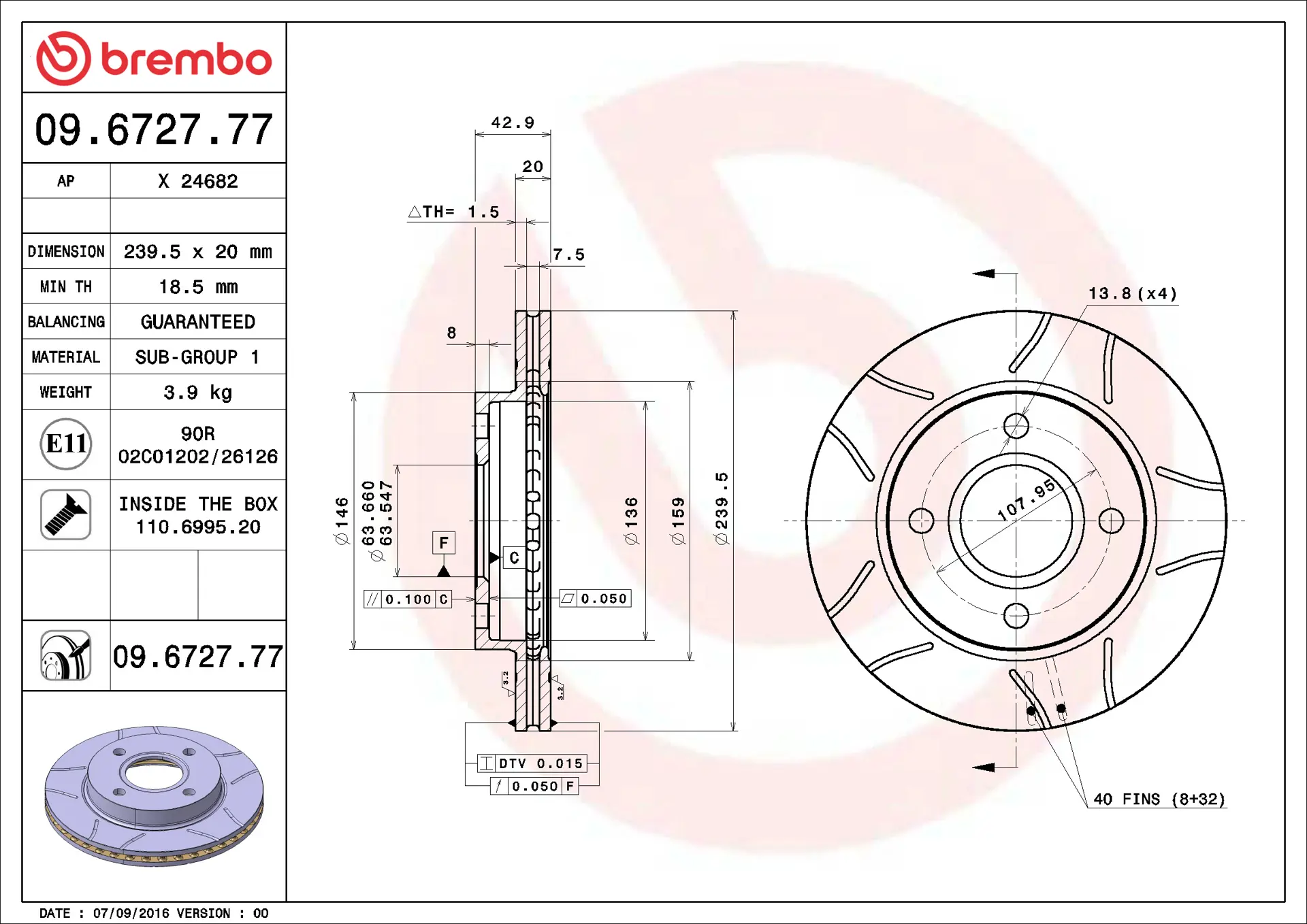

Disc technical data
Axle
Front
Diameter
239,5 mm
Overall height (A)
43 mm
Centring diameter (B)
63,6 mm
Number of holes (C)
4
Thickness (TH)
20 mm
Minimum thickness
18 mm
Unit per box
2
EANCode
8020584011416
Discs
Brand part numbers
Brembo 09.6727.77
AP X 24682
Certification
UNECE R 90 homologation
The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications
Brembo Max
Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

FORD

MAZDA

OE Part number
Compatible OE codes
FORD 1019604
FORD 1066271
FORD 1107768
FORD 1320581
FORD 1473005
FORD 1524589
FORD 4071714
FORD 4084226
FORD 5022654
FORD 5028281
FORD 6191064
MAZDA 1E0633251
