09.6803.10

Disc

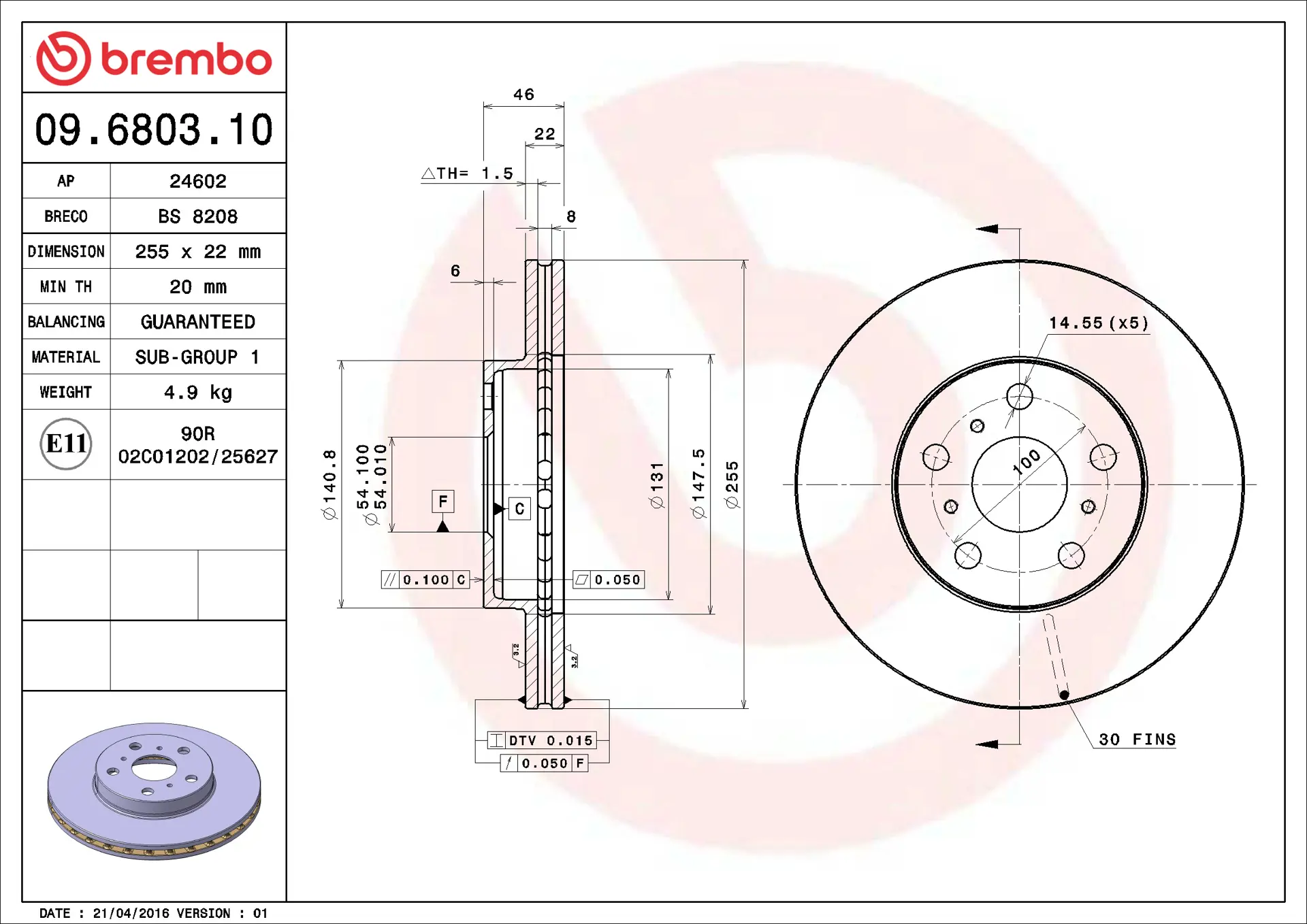

Disc technical data
Axle
Front
Diameter (Diameter)
255 mm
Overall height (A)
46 mm
Centring diameter (B)
54 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20 mm
Tightening torque
103 Nm
Unit per box
2
EANCode
8020584680315
Discs
Brand part numbers
Brembo 09.6803.10
AP 24602
Breco BS 8208
Compatible vehicles

TOYOTA

OE Part number
Compatible OE codes
TOYOTA 4351220360
TOYOTA 4351220380
