09.7680.10

Name: Disc 09.7680.10
Brand: Brembo

Disc

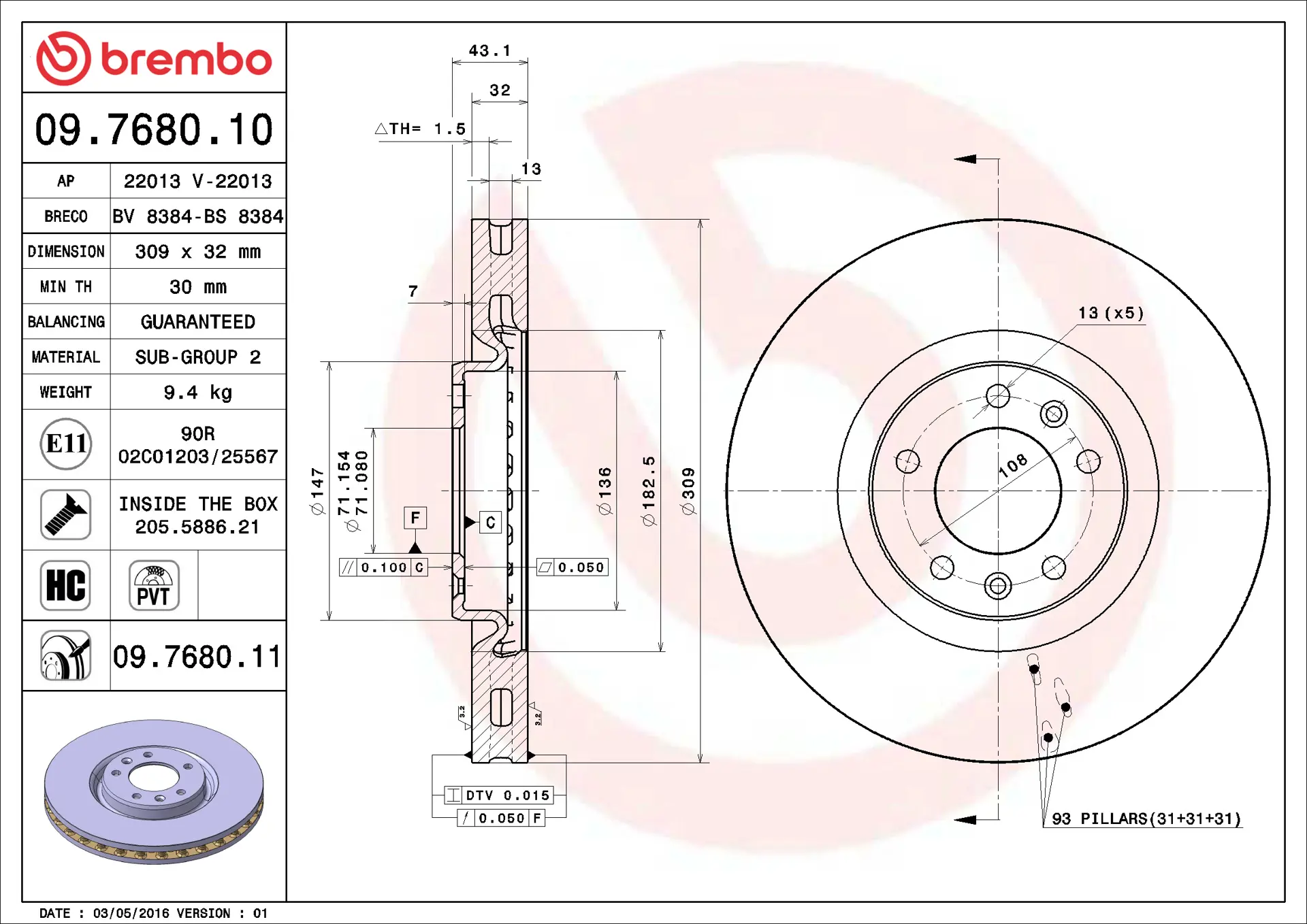

Disc technical data

Axle

Front

Diameter (Diameter)

309 mm

Overall height (A)

43 mm

Centring diameter (B)

71 mm

Number of holes (C)

Thickness (TH)

32 mm

Minimum thickness

30 mm

Tightening torque

90 Nm

Unit per box

EANCode

8020584768013

Brand part numbers

Brembo 09.7680.10

AP 22013

Breco BS 8384

Where to buy

Download data sheet

Technical specifications

High Carbon disc (HC)

Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.

Find out more

PVT vented disc

The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.

Find out more

Disc with fixing screw

By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.

Compatible vehicles

PEUGEOT

Model607 (9D, 9U) Type3.0 V6 24V Kw152 Year02/00 - 07/04

Model607 (9D, 9U) Type3.0 V6 24V Kw155 Year03/04 - 07/11

OE Part number

Compatible OE codes

PEUGEOT 4246V5
