09.7702.75

Name: Disc 09.7702.75
Brand: Brembo

Disc

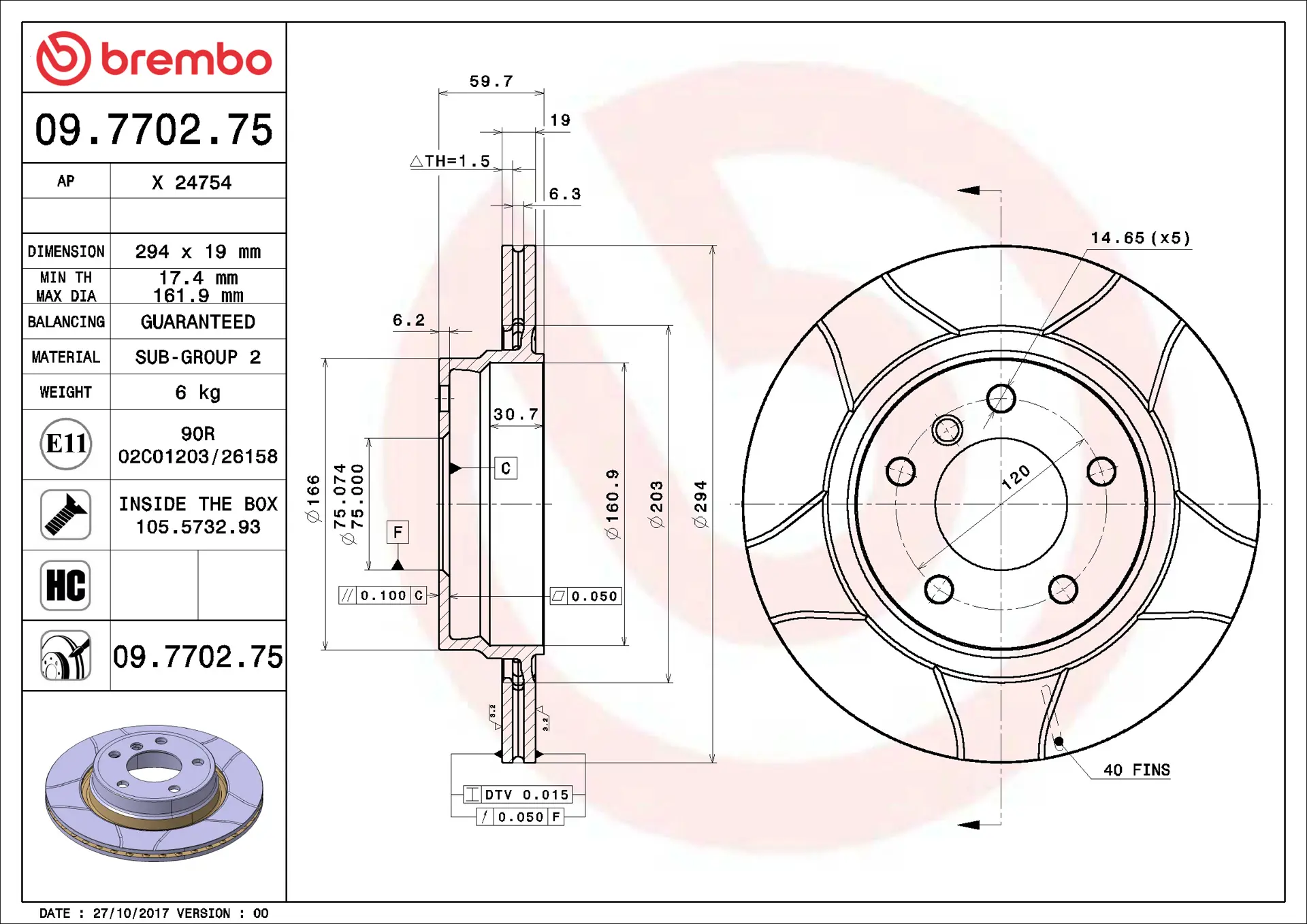

Disc technical data

Axle

Rear

Diameter (Diameter)

294 mm

Overall height (A)

59,2 mm

Centring diameter (B)

75 mm

Number of holes (C)

Thickness (TH)

19 mm

Minimum thickness

17,4 mm

Tightening torque

120 Nm

Unit per box

EANCode

8020584770276

Brand part numbers

Brembo 09.7702.75

AP X 24754

Where to buy

Download data sheet

Certification

UNECE R 90 homologation

The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.

E11 90R-02C01203-26158.pdf (864.1 KB)

If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here

Send any questions to information request

Technical specifications

Brembo Max

Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.

Find out more

High Carbon disc (HC)

Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.

Find out more

Disc with fixing screw

By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.

UV Disc

The UV coating process provides a superior corrosion resistance and full disc protection.

Find out more

Compatible vehicles
