09.7777.10

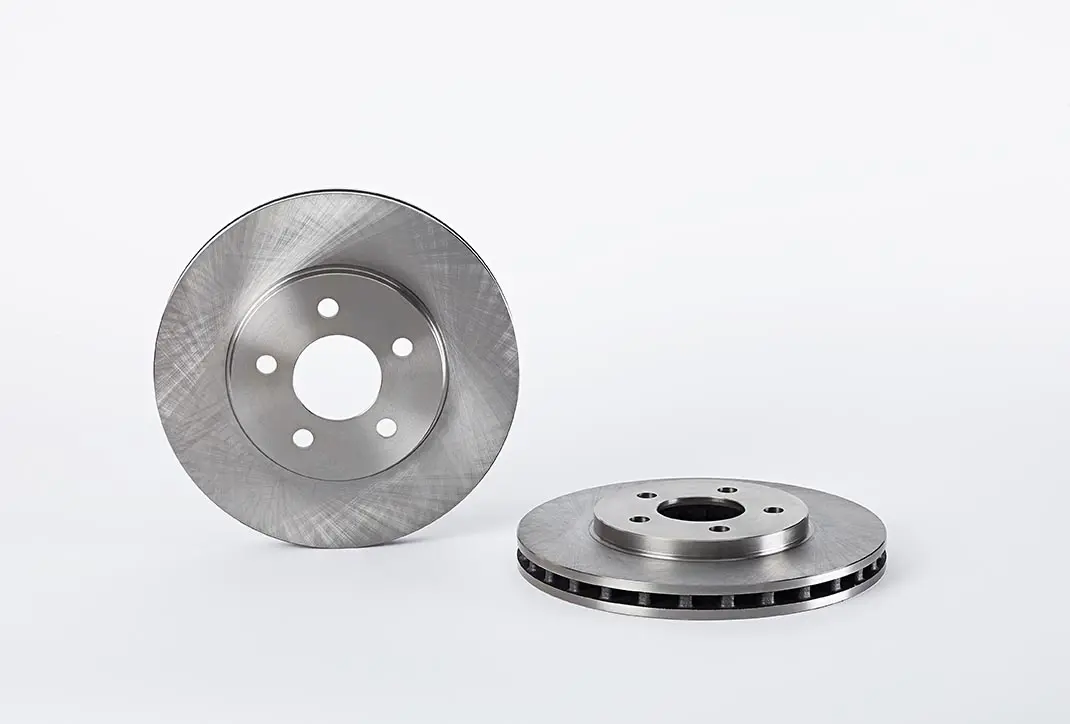

Disc

In the comparator

Add to favourites

Products compared

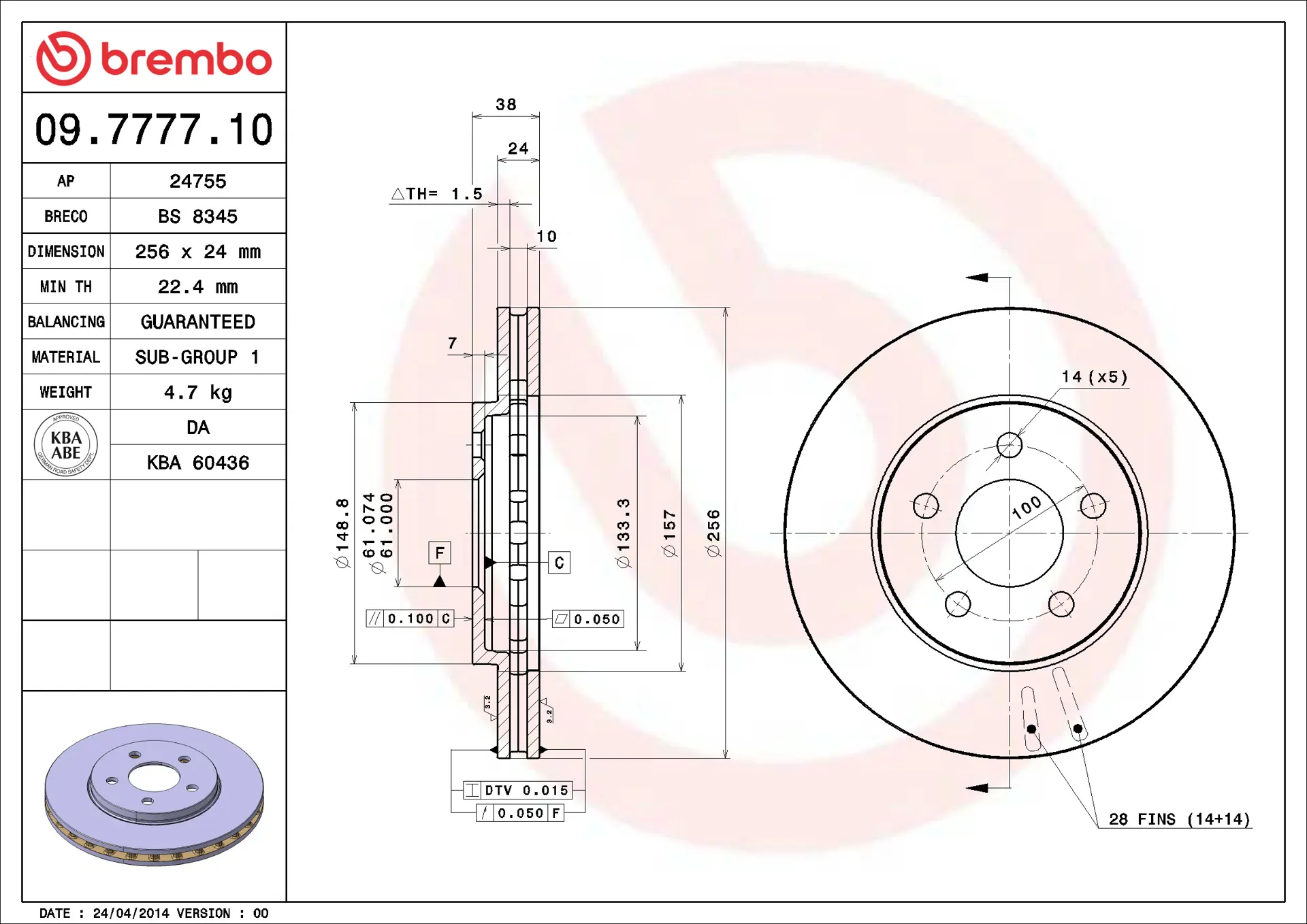

Disc technical data

Axle

Front

Diameter

256 mm

Overall height (A)

38 mm

Centring diameter (B)

61 mm

Number of holes (C)

5

Thickness (TH)

24 mm

Minimum thickness

22,4 mm

Tightening torque

129 Nm

Unit per box

2

EANCode

8020584777718

Discs

Brand part numbers

Brembo 09.7777.10

AP 24755

Breco BS 8345

Download data sheet

09.7777.10

09.7777.10

09.7777.10

Compatible vehicles

DODGE

ModelCARAVAN Type2.4 i kW111 CV151 Year01/95 - 03/01

ModelCARAVAN Type2.5 TD kW85 CV116 Year01/95 - 03/01

ModelCARAVAN Type3.0 kW112 CV152 Year01/95 - 06/00

ModelCARAVAN Type3.3 i kW116 CV158 Year01/95 - 03/01

ModelCARAVAN Type3.8 i kW122 CV166 Year01/95 - 03/01

ModelCARAVAN Type3.8 i kW131 CV178 Year01/95 - 03/01

ModelCARAVAN Type3.8 i AWD kW122 CV166 Year01/95 - 03/01

ModelCARAVAN Type3.8 i AWD kW131 CV178 Year01/95 - 03/01

PLYMOUTH

ModelVOYAGER / GRAND VOYAGER Type2.0 i kW98 CV133 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type2.4 i kW111 CV151 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type2.5 TD kW85 CV116 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type3.0 kW112 CV152 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type3.3 i kW116 CV158 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type3.8 i kW122 CV166 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type3.8 i kW131 CV178 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type3.8 i AWD kW122 CV166 Year01/95 - 03/01

ModelVOYAGER / GRAND VOYAGER Type3.8 i AWD kW131 CV178 Year01/95 - 03/01

OE Part number

Compatible OE codes

CHRYSLER 4683259

DODGE 4683259

PLYMOUTH 4683259
