09.7804.60

Disc
Replaces: 09.7804.10

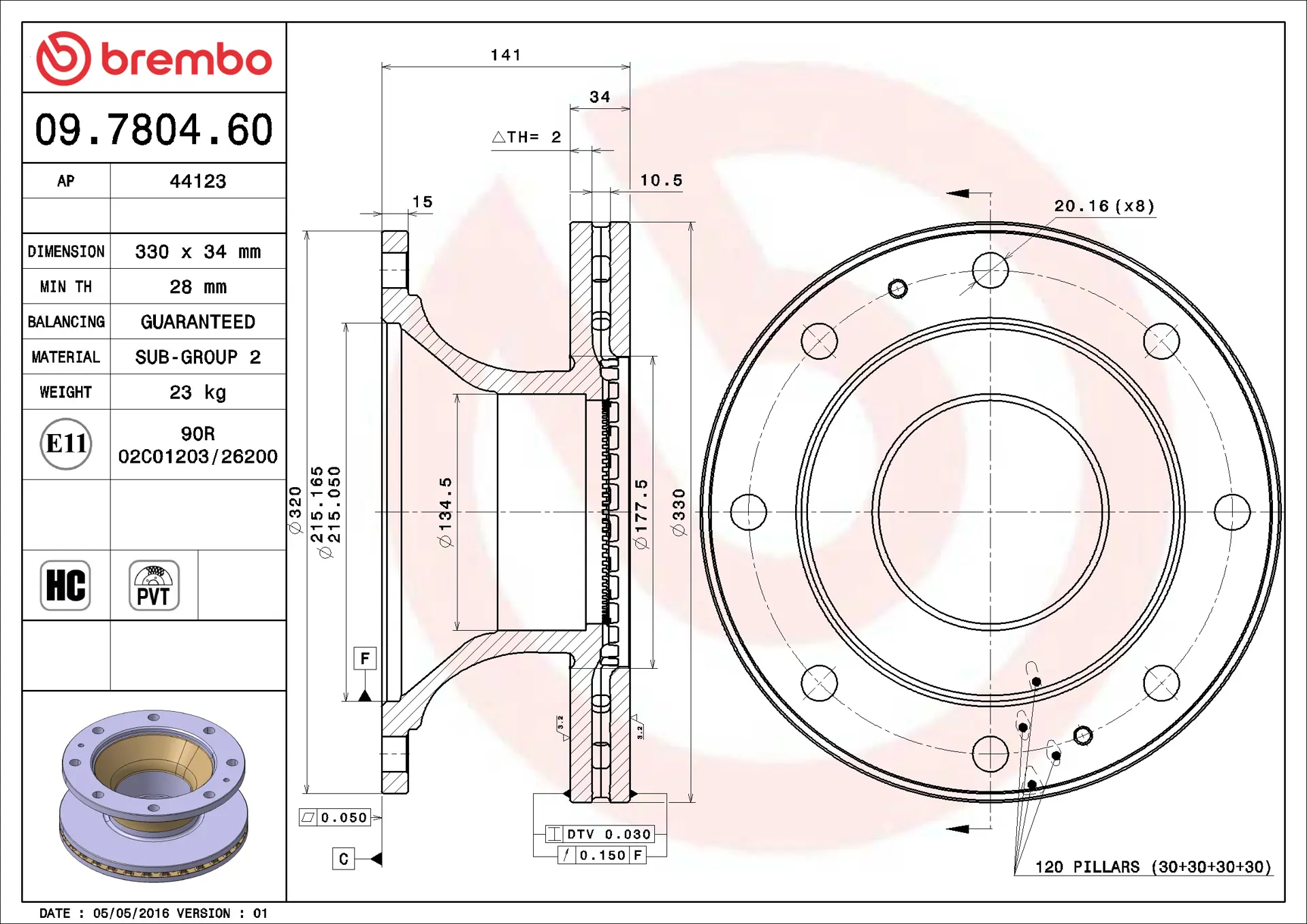

Disc technical data
Axle
Front, Rear
Diameter
330 mm
Overall height (A)
141 mm
Centring diameter (B)
215 mm
Number of holes (C)
8
Thickness (TH)
34 mm
Minimum thickness
28 mm
Unit per box
1
EANCode
8020584780466
Discs
Brand part numbers
Brembo 09.7804.60
AP 44123
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
OE Part number
Compatible OE codes
IVECO 1906466
IVECO 2997450
IVECO 7183632
