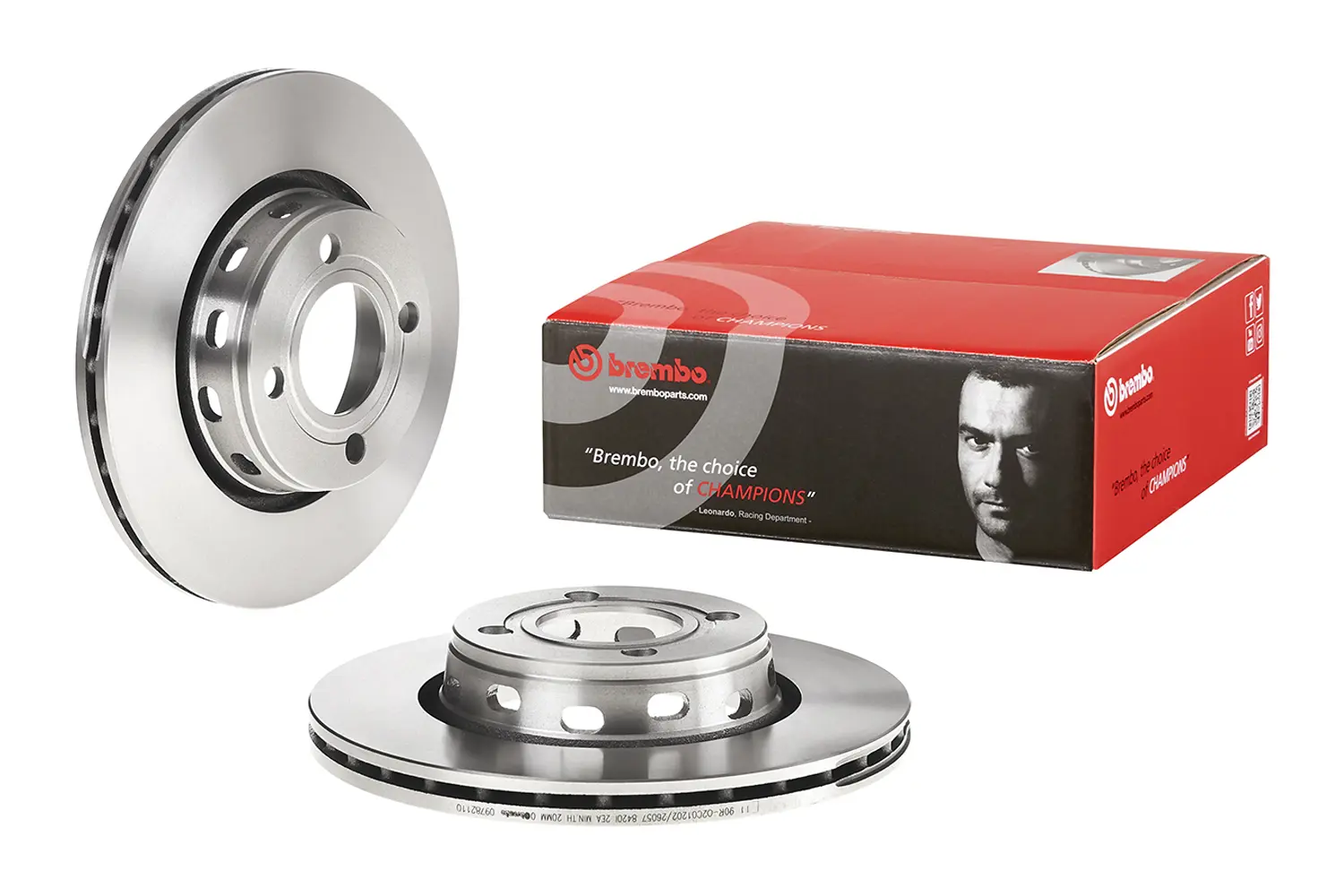

09.7821.10

Name: Disc 09.7821.10
Brand: Brembo

Disc

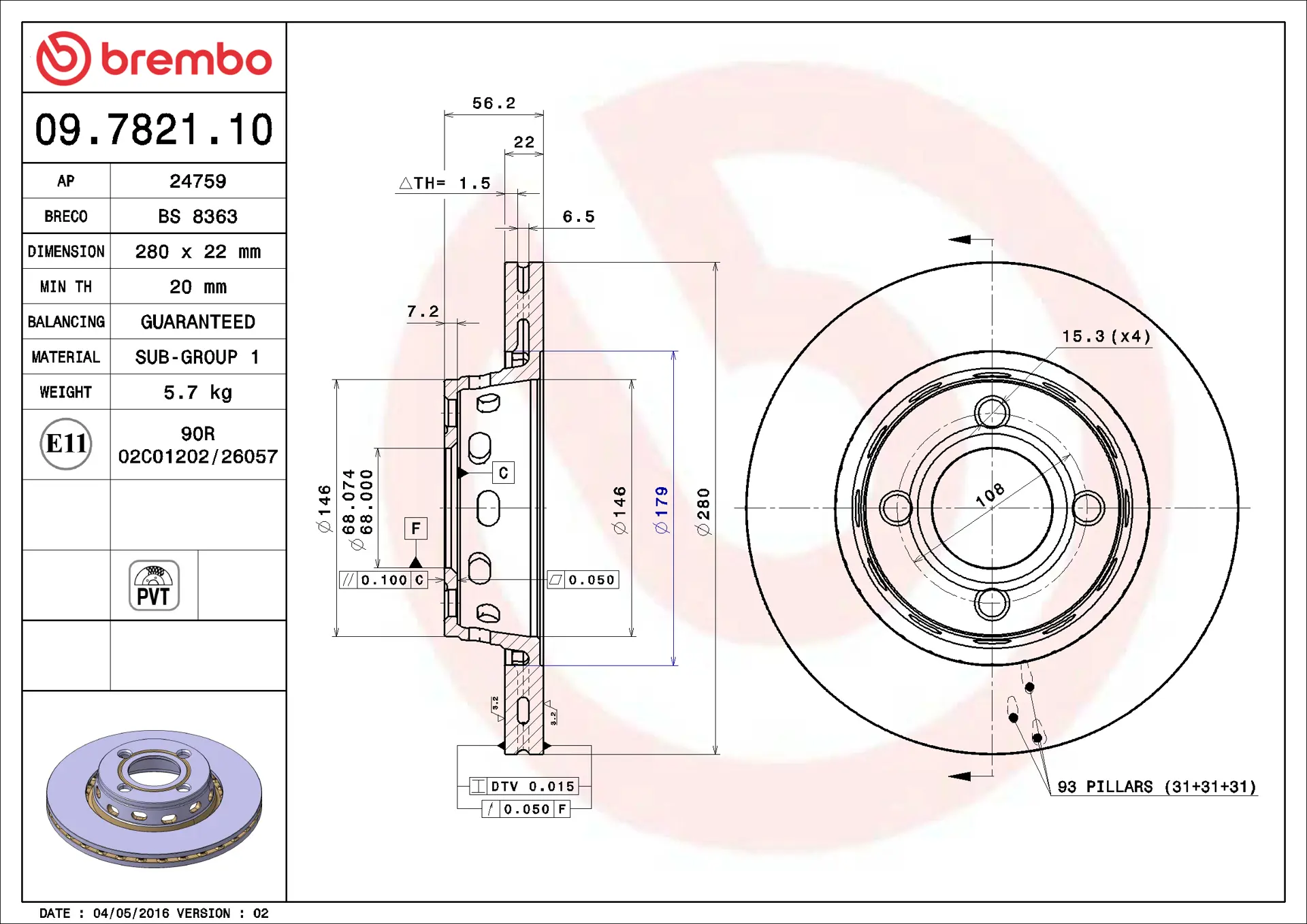

Disc technical data

Axle

Front

Diameter (Diameter)

280 mm

Overall height (A)

56,2 mm

Centring diameter (B)

68 mm

Number of holes (C)

Thickness (TH)

22 mm

Minimum thickness

20 mm

Tightening torque

120 Nm

Unit per box

EANCode

8020584782118

Brand part numbers

Brembo 09.7821.10

AP 24759

Breco BS 8363

Where to buy

Download data sheet

Technical specifications

PVT vented disc

The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.

Find out more

Compatible vehicles

AUDI

Model80 (8C2, B4) Type1.6 Kw52 Year09/91 - 12/94

Model80 (8C2, B4) Type1.6 E Kw74 Year06/93 - 12/94

Model80 (8C2, B4) Type1.9 TD Kw55 Year09/91 - 12/94

Model80 (8C2, B4) Type1.9 TDI Kw66 Year09/91 - 12/94

Model80 (8C2, B4) Type2.0 Kw66 Year09/91 - 12/94

Model80 (8C2, B4) Type2.0 E Kw85 Year09/91 - 12/94

Model80 (8C2, B4) Type2.0 E 16V Kw103 Year08/92 - 12/94

Model80 (8C2, B4) Type2.0 E 16V quattro Kw103 Year04/92 - 12/94

Model80 (8C2, B4) Type2.0 E quattro Kw85 Year09/91 - 12/94

Model80 (8C2, B4) Type2.3 E Kw98 Year09/91 - 12/94

Model80 (8C2, B4) Type2.3 E quattro Kw98 Year09/91 - 12/94

Model80 (8C2, B4) Type2.6 Kw110 Year07/92 - 12/94

Model80 (8C2, B4) Type2.6 quattro Kw110 Year06/92 - 12/94

Model80 Avant (8C5, B4) Type1.6 E Kw74 Year06/93 - 01/96

Model80 Avant (8C5, B4) Type1.9 TD Kw55 Year09/91 - 12/94

Model80 Avant (8C5, B4) Type1.9 TDI Kw66 Year07/92 - 01/96

Model80 Avant (8C5, B4) Type2.0 Kw66 Year07/92 - 01/96

Model80 Avant (8C5, B4) Type2.0 E Kw85 Year07/92 - 01/96

Model80 Avant (8C5, B4) Type2.0 E 16V Kw103 Year02/93 - 01/96

Model80 Avant (8C5, B4) Type2.0 E 16V quattro Kw103 Year12/92 - 07/95

Model80 Avant (8C5, B4) Type2.0 quattro Kw79 Year11/93 - 01/96

Model80 Avant (8C5, B4) Type2.3 E Kw98 Year07/92 - 01/96

Model80 Avant (8C5, B4) Type2.3 E quattro Kw98 Year09/91 - 11/94

Model80 Avant (8C5, B4) Type2.6 Kw110 Year07/92 - 01/96

Model80 Avant (8C5, B4) Type2.6 quattro Kw110 Year07/92 - 07/95

Model80 Avant (8C5, B4) Type2.8 Kw128 Year09/91 - 01/96

ModelCABRIOLET (8G7, B4) Type1.8 Kw92 Year01/97 - 08/00

ModelCABRIOLET (8G7, B4) Type1.9 TDI Kw66 Year06/95 - 08/00

ModelCABRIOLET (8G7, B4) Type2.0 16V Kw103 Year06/95 - 07/96

ModelCABRIOLET (8G7, B4) Type2.0 E Kw85 Year01/93 - 07/98

ModelCABRIOLET (8G7, B4) Type2.3 E Kw98 Year05/91 - 07/94

ModelCABRIOLET (8G7, B4) Type2.6 Kw110 Year06/93 - 08/00

ModelCOUPE (89, 8B) Type2.0 Kw85 Year05/89 - 12/96

ModelCOUPE (89, 8B) Type2.0 16 V Kw103 Year08/92 - 12/96

ModelCOUPE (89, 8B) Type2.3 Kw98 Year03/90 - 12/96

ModelCOUPE (89, 8B) Type2.3 Kw100 Year10/88 - 07/94

ModelCOUPE (89, 8B) Type2.3 quattro Kw98 Year05/90 - 12/96

ModelCOUPE (89, 8B) Type2.3 quattro Kw100 Year11/88 - 12/92

ModelCOUPE (89, 8B) Type2.6 quattro Kw110 Year08/92 - 12/96

ZHONGHUA(BRILLIANCE)

ModelJUNJIE Saloon (M2) Type1.6 Kw74 Year03/06 - 07/10

ModelJUNJIE Saloon (M2) Type1.6 Kw87 Year07/10 - 12/15

ModelJUNJIE Saloon (M2) Type1.8 Kw100 Year02/06 - 07/10

ModelJUNJIE Saloon (M2) Type1.8 Kw95 Year07/10 - 12/15

ModelJUNJIE Saloon (M2) Type1.8 Turbo Kw125 Year01/07 - 12/15

ModelJUNJIE Saloon (M2) Type2.0 Kw95 Year02/06 - 12/08

ModelJUNJIE WAGON Type1.8 Kw100 Year12/08 - 12/11

ModelJUNJIE WAGON Type1.8 T Kw125 Year12/08 - 12/15

ModelJUNJIE WAGON Type2.0 Kw102 Year08/10 - 12/15

ModelJUNJIE WAGON Type2.0 Kw95 Year12/08 - 12/15

ModelKUBAO Coupe (M3) Type1.8 Kw100 Year09/07 - 12/10

ModelKUBAO Coupe (M3) Type1.8 Turbo Kw125 Year09/07 - 12/14

ModelZUNCHI (M1) Type1.8 T Kw125 Year03/07 - 12/15

ModelZUNCHI (M1) Type2.0 Kw108 Year07/09 - 12/12

ModelZUNCHI (M1) Type2.0 Kw102 Year07/10 - 12/15

OE Part number

Compatible OE codes

AUDI 8A0615301A

AUDI 8A0615301E
