09.7825.75

Disc
No longer available

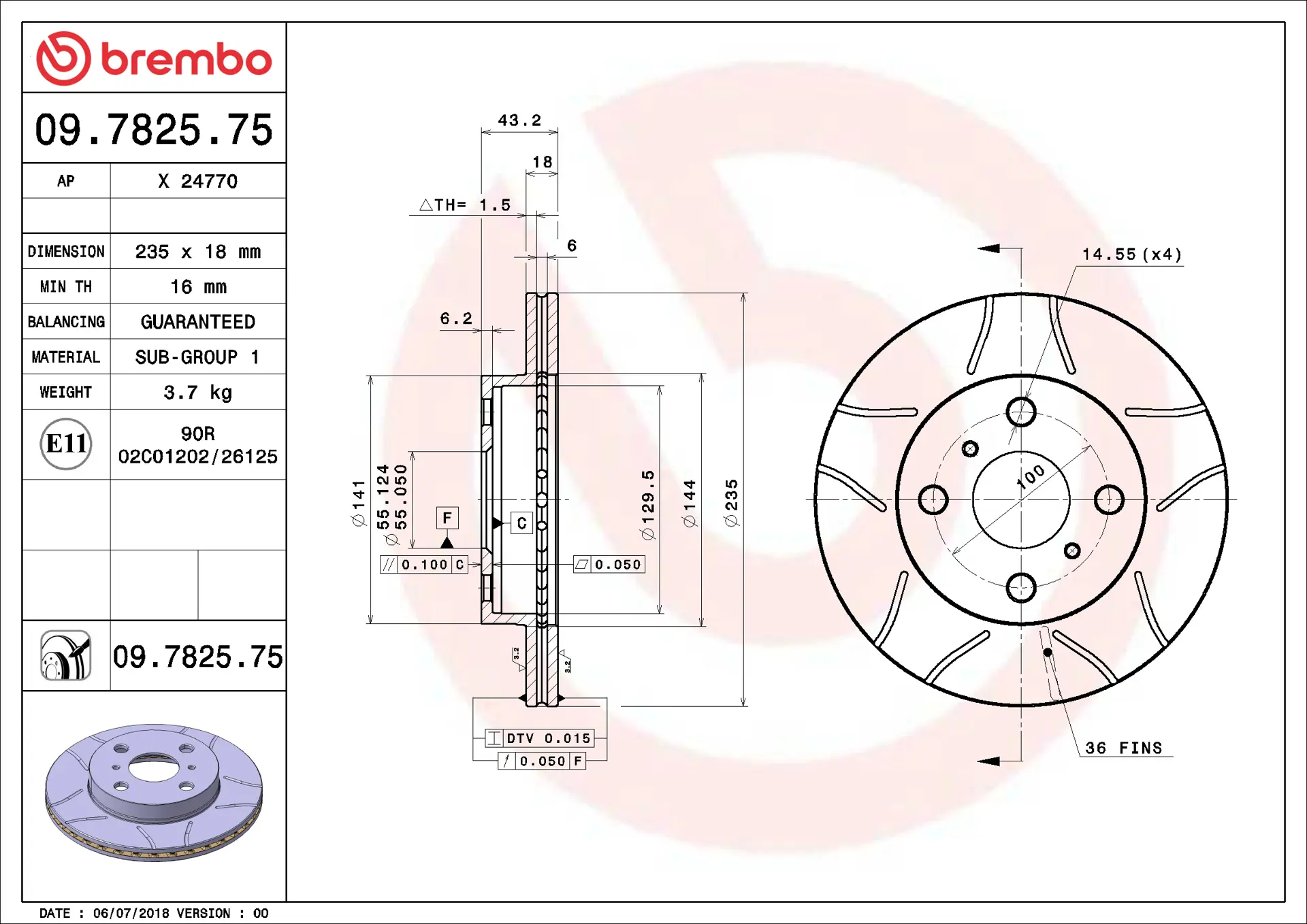

Disc technical data
Axle
Front
Diameter (Diameter)
235 mm
Overall height (A)
43,2 mm
Centring diameter (B)
55 mm
Number of holes (C)
4
Thickness (TH)
18 mm
Minimum thickness
16 mm
Tightening torque
103 Nm
Unit per box
2
EANCode
8020584012185
Discs
Brand part numbers
Brembo 09.7825.75
AP X 24770
Certification
UNECE R 90 homologation
The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications

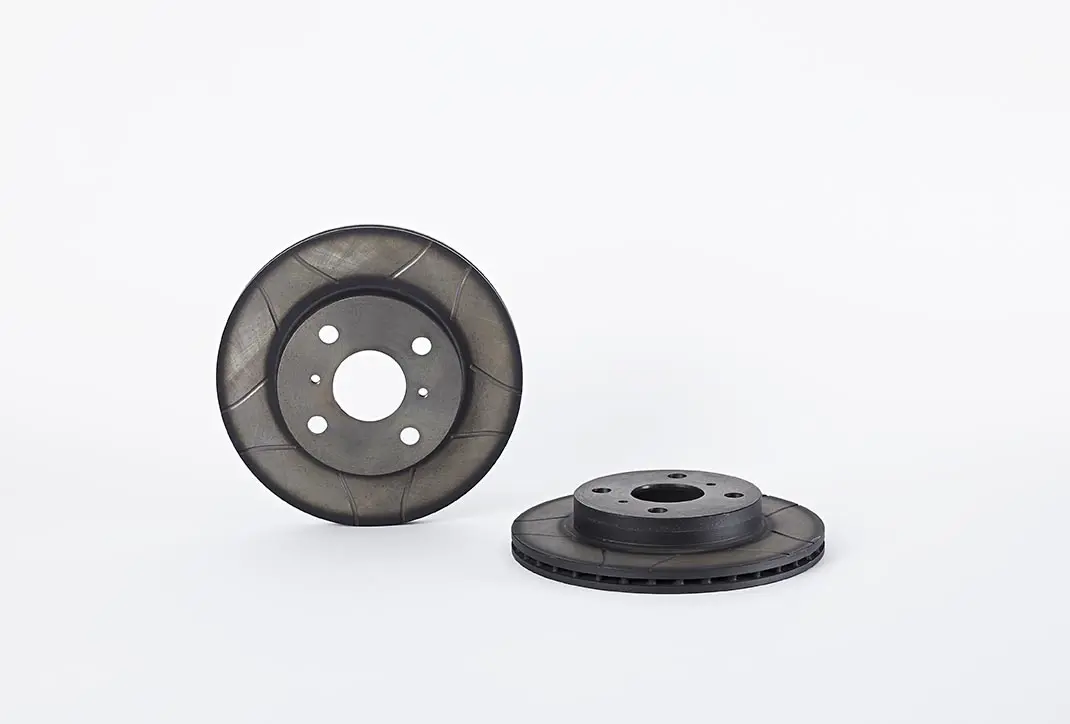

Brembo Max
Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
TOYOTA 4351252010
TOYOTA 4351252020
TOYOTA 4351252050
