09.8483.11

Disc

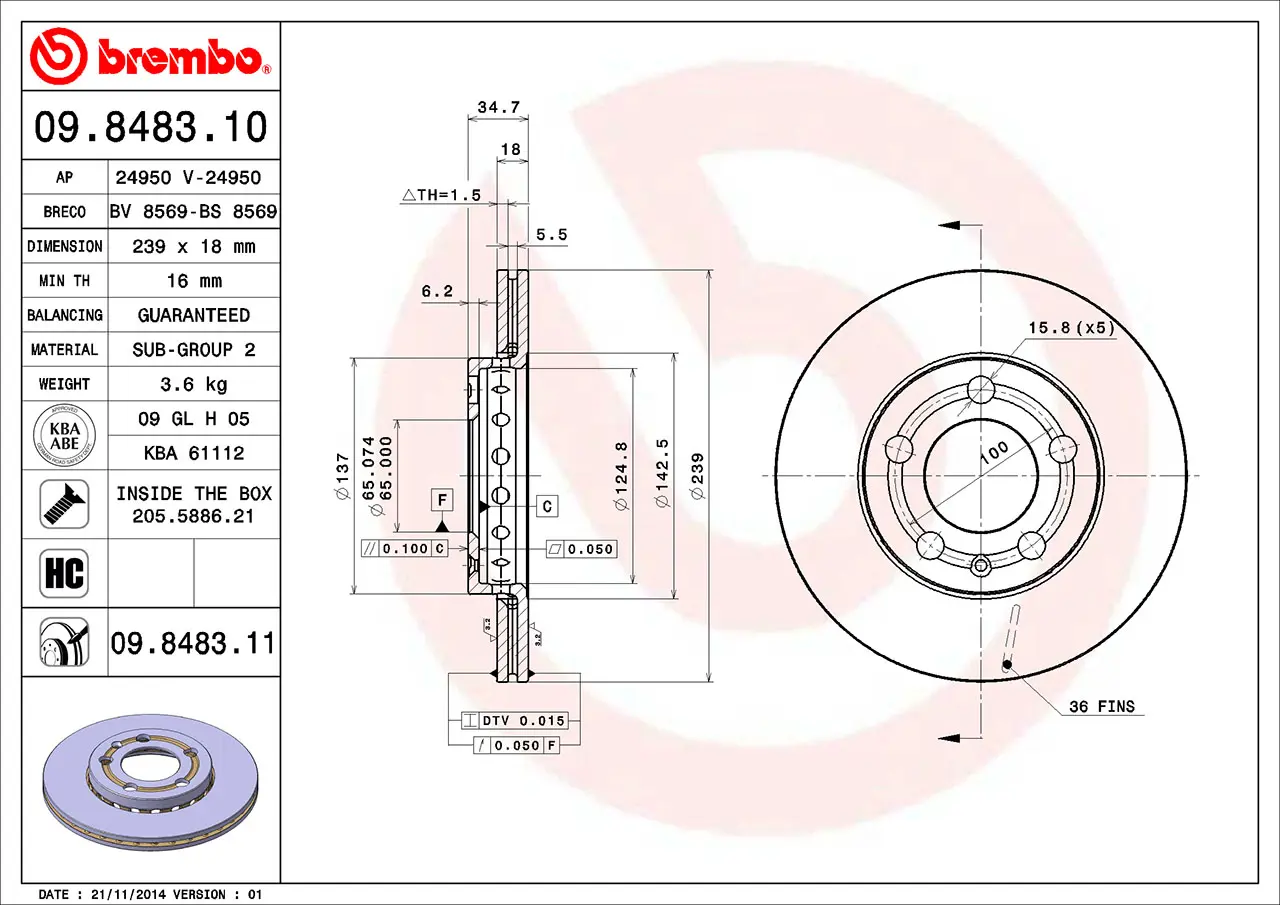

Disc technical data
Axle
Front
Diameter
239 mm
Overall height (A)
34,6 mm
Centring diameter (B)
65 mm
Number of holes (C)
5
Thickness (TH)
18 mm
Minimum thickness
16 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584216408
Discs
Brand part numbers
Brembo 09.8483.11
AP 24950 V
Breco BV 8569
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
SKODA 6Q0615301
SKODA 6Q0615301A
VW 6Q0615301
VW 6Q0615301A
