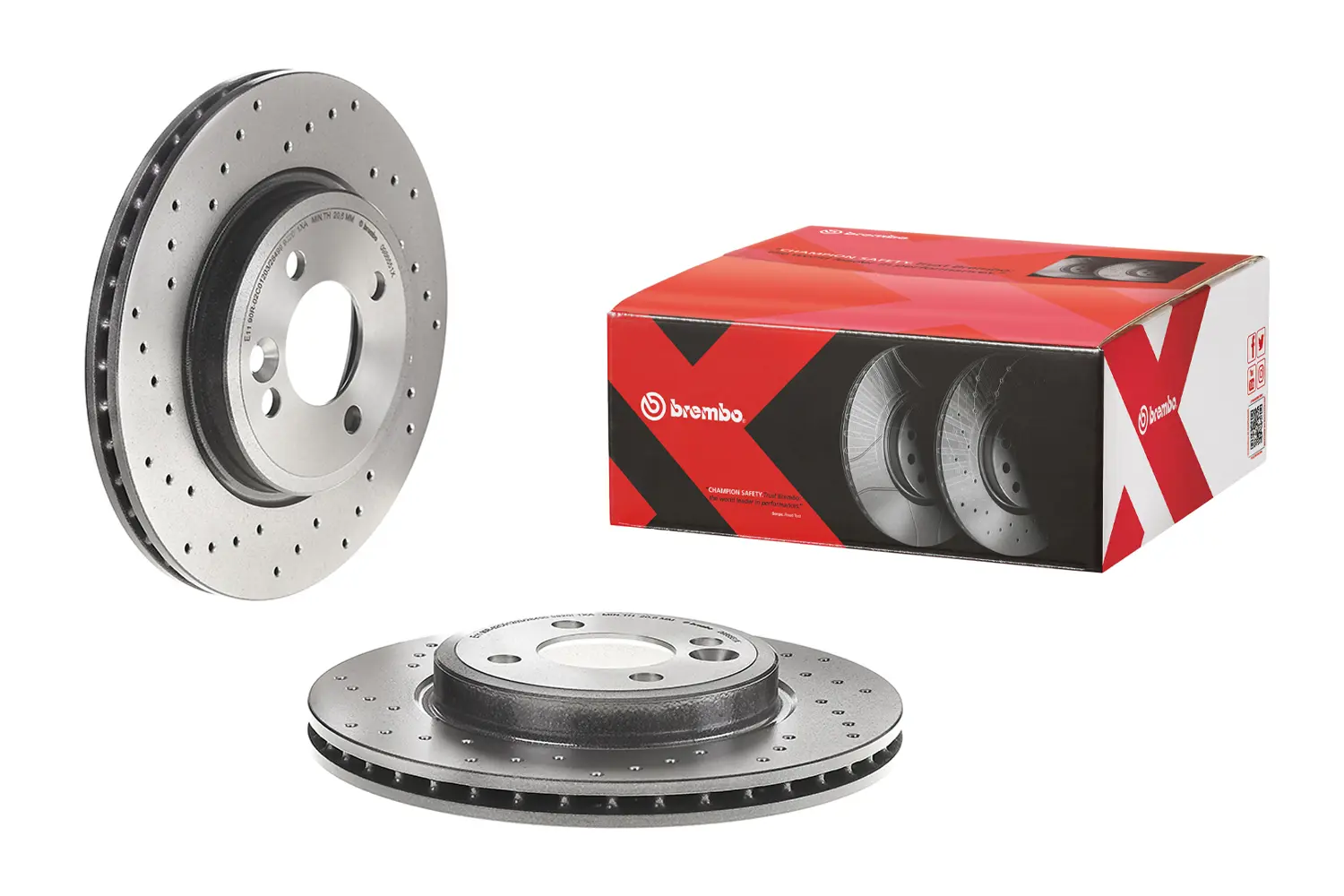

09.8655.1X

Disc

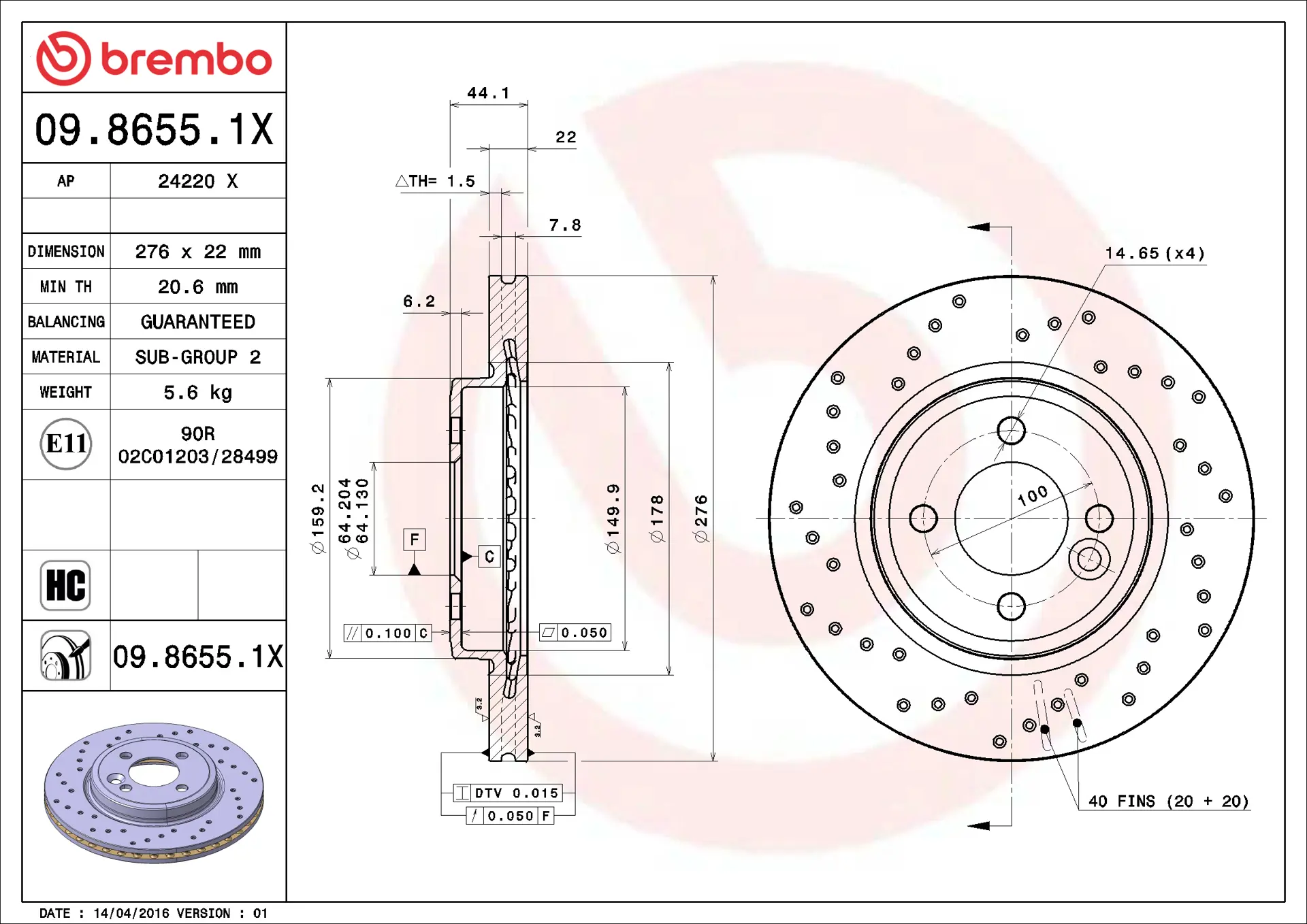

Disc technical data

Axle

Front

Diameter

276 mm

Overall height (A)

44 mm

Centring diameter (B)

64 mm

Number of holes (C)

Thickness (TH)

22 mm

Minimum thickness

20,6 mm

Tightening torque

120 Nm

Unit per box

EANCode

8020584217382

Brand part numbers

Brembo 09.8655.1X

AP 24220 X

Where to buy

Download data sheet

Certification

UNECE R 90 homologation for the entire range of Brembo Xtra brake discs

The entire range of Brembo Xtra brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Xtra disc using the following link.

E11 90R-02C01203-28499.pdf (1.1 MB)

If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here

Send any questions to information request

Technical specifications

Brembo Xtra

Brembo Xtra discs have holes on the braking surface that optimise performance in wet conditions, ensure constant renewal of the friction material and prompt braking in all conditions.

Find out more

High Carbon disc (HC)

Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.

Find out more

UV Disc

The UV coating process provides a superior corrosion resistance and full disc protection.

Find out more

Compatible vehicles
