09.8655.75

Disc

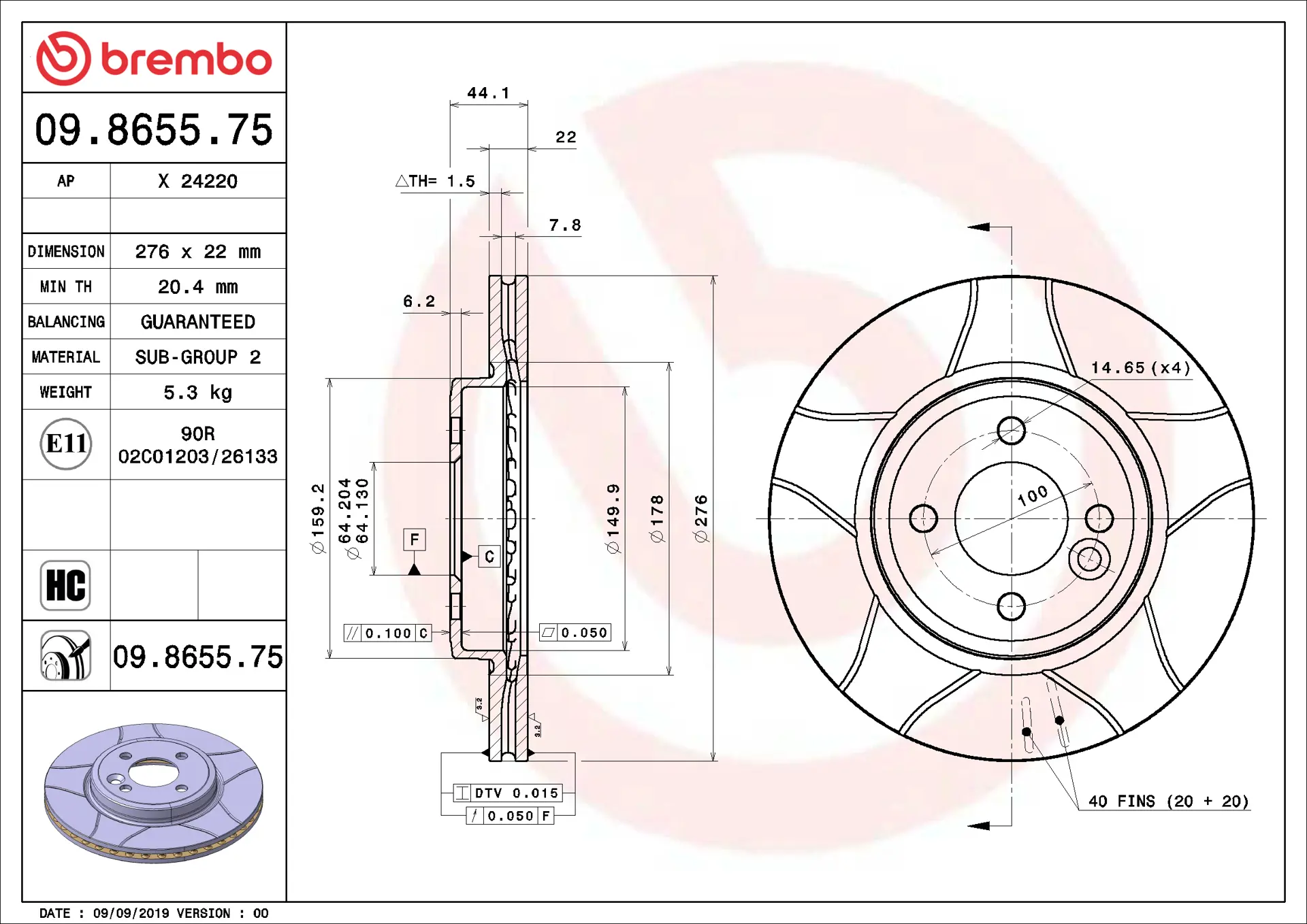

Disc technical data
Axle
Front
Diameter
276 mm
Overall height (A)
44 mm
Centring diameter (B)
64 mm
Number of holes (C)
4
Thickness (TH)
22 mm
Minimum thickness
20,4 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584013618
Discs
Brand part numbers
Brembo 09.8655.75
AP X 24220
Certification
UNECE R 90 homologation
The entire range of Brembo Max brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Max disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications
Brembo Max

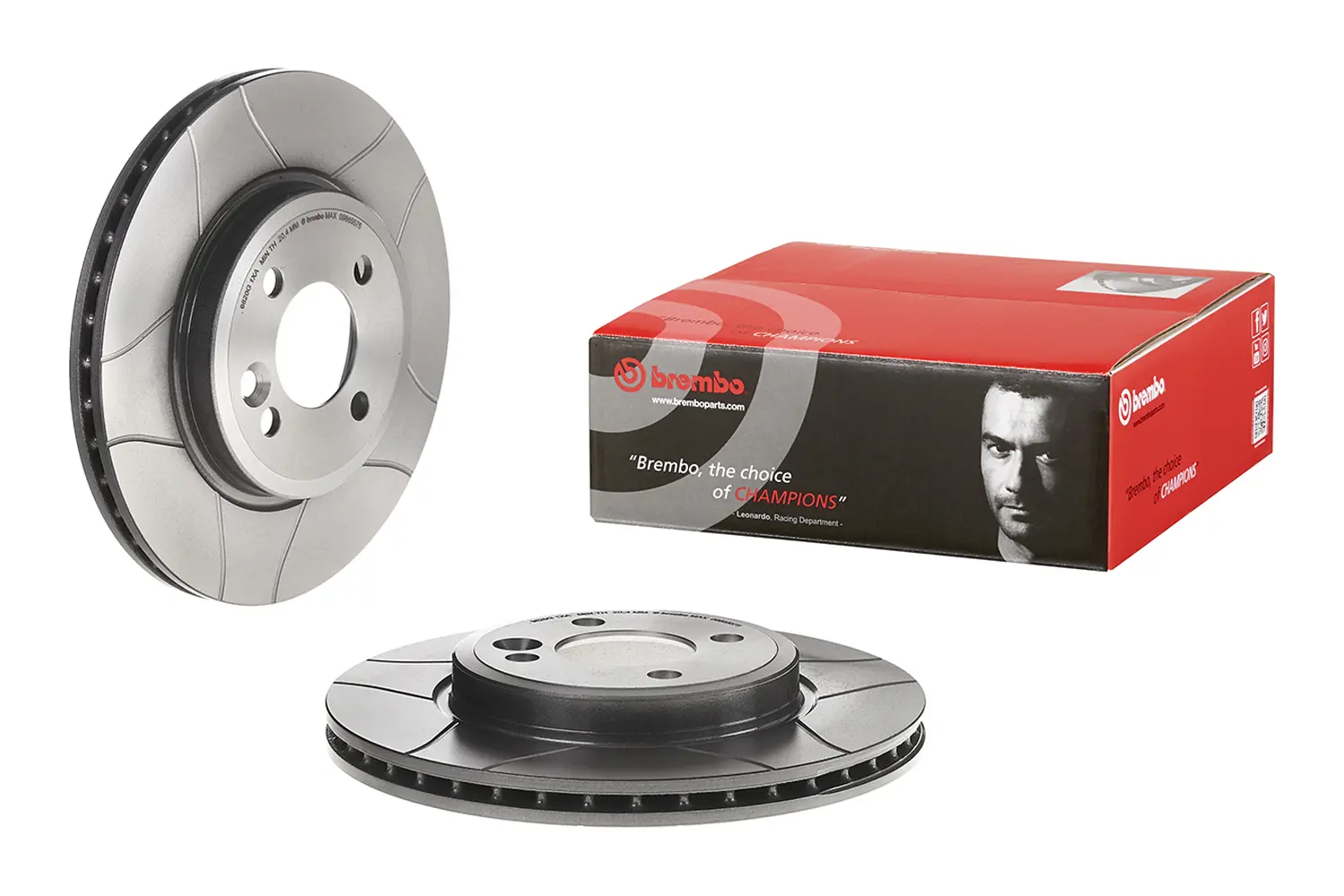

Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
MINI 34111502891
