09.8842.21

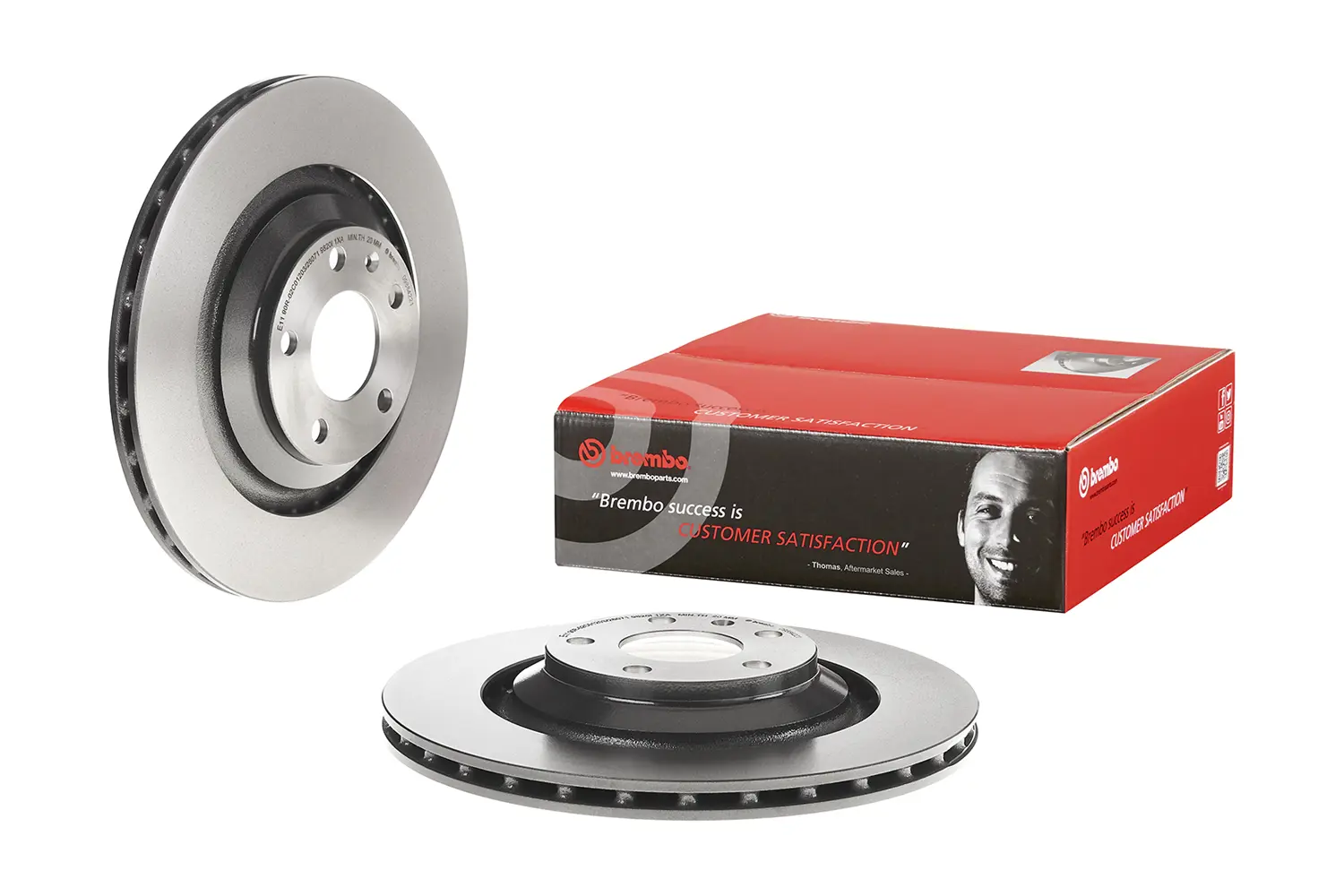

Disc

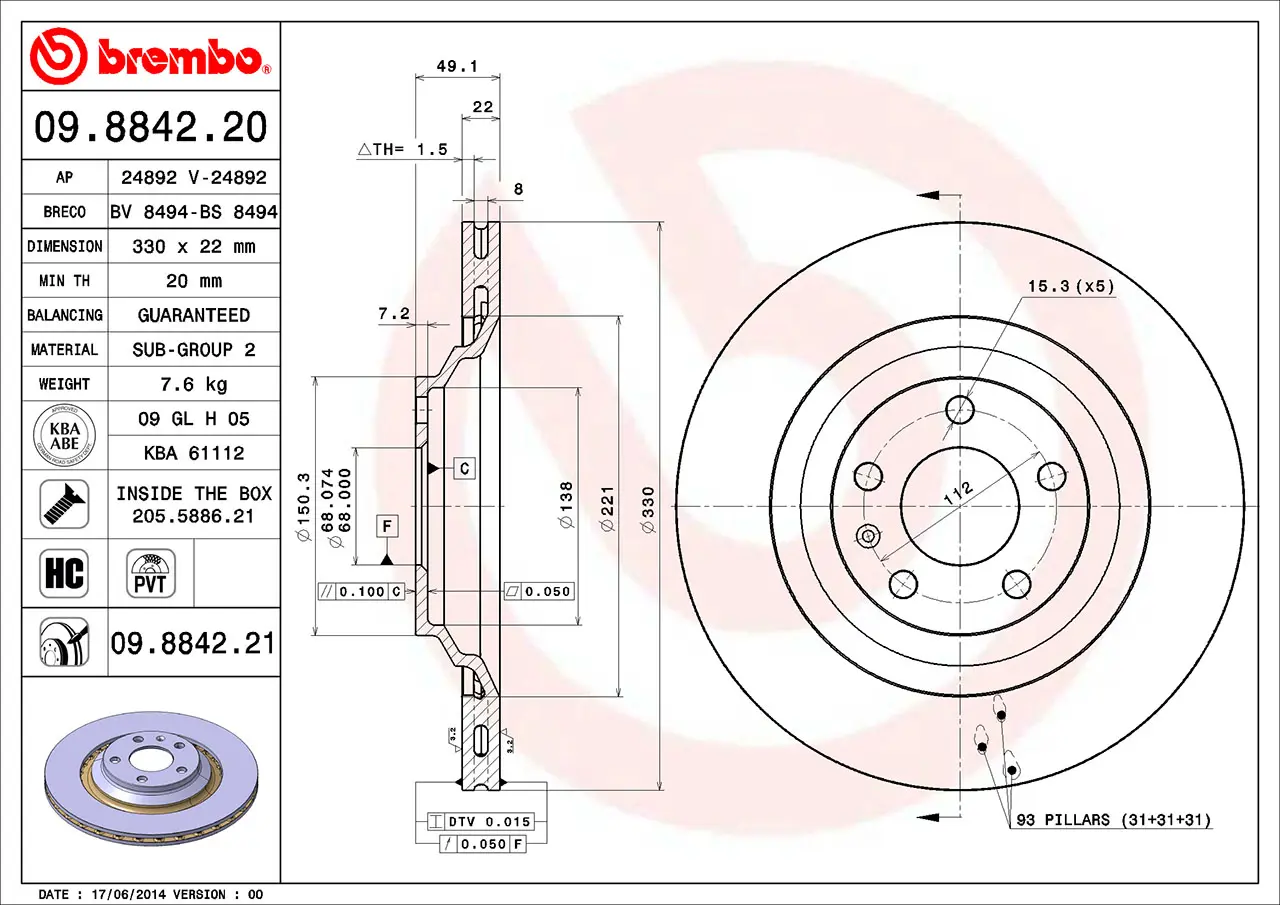

Disc technical data
Axle
Rear
Diameter
330 mm
Overall height (A)
49,2 mm
Centring diameter (B)
68 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20 mm
Tightening torque
120 Nm
Unit per box
1
EANCode
8020584026571
Discs
Brand part numbers
Brembo 09.8842.21
AP 24892 V
Breco BV 8494
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

AUDI

OE Part number
Compatible OE codes
AUDI 4F0615601D
AUDI 4F0615601F
