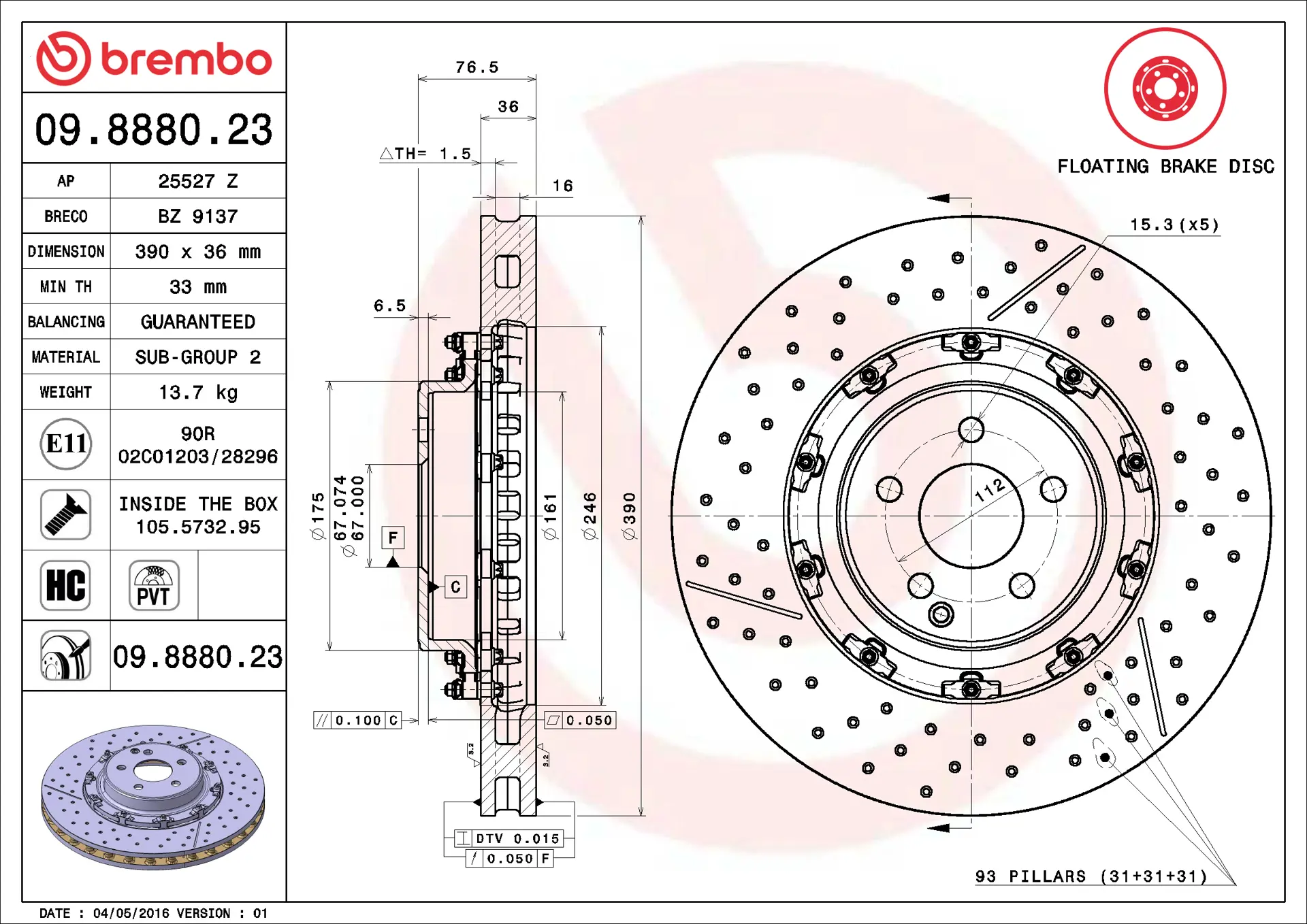

Disc technical data
390 mm
Overall height (A)
76,5 mm
Centring diameter (B)
67 mm
Number of holes (C)
Thickness (TH)
36 mm
Minimum thickness
33 mm
Unit per box
Brand part numbers
Brembo 09.8880.23
AP 25527 Z
Breco BZ 9137
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Floating disc
The aluminium hat is joined to the brake surface in special cast iron by locking bushings, so the brake surface can expand without deforming.
Find out more
OE Part number
Compatible OE codes
MERCEDES-BENZ 2204212612
