09.9264.10

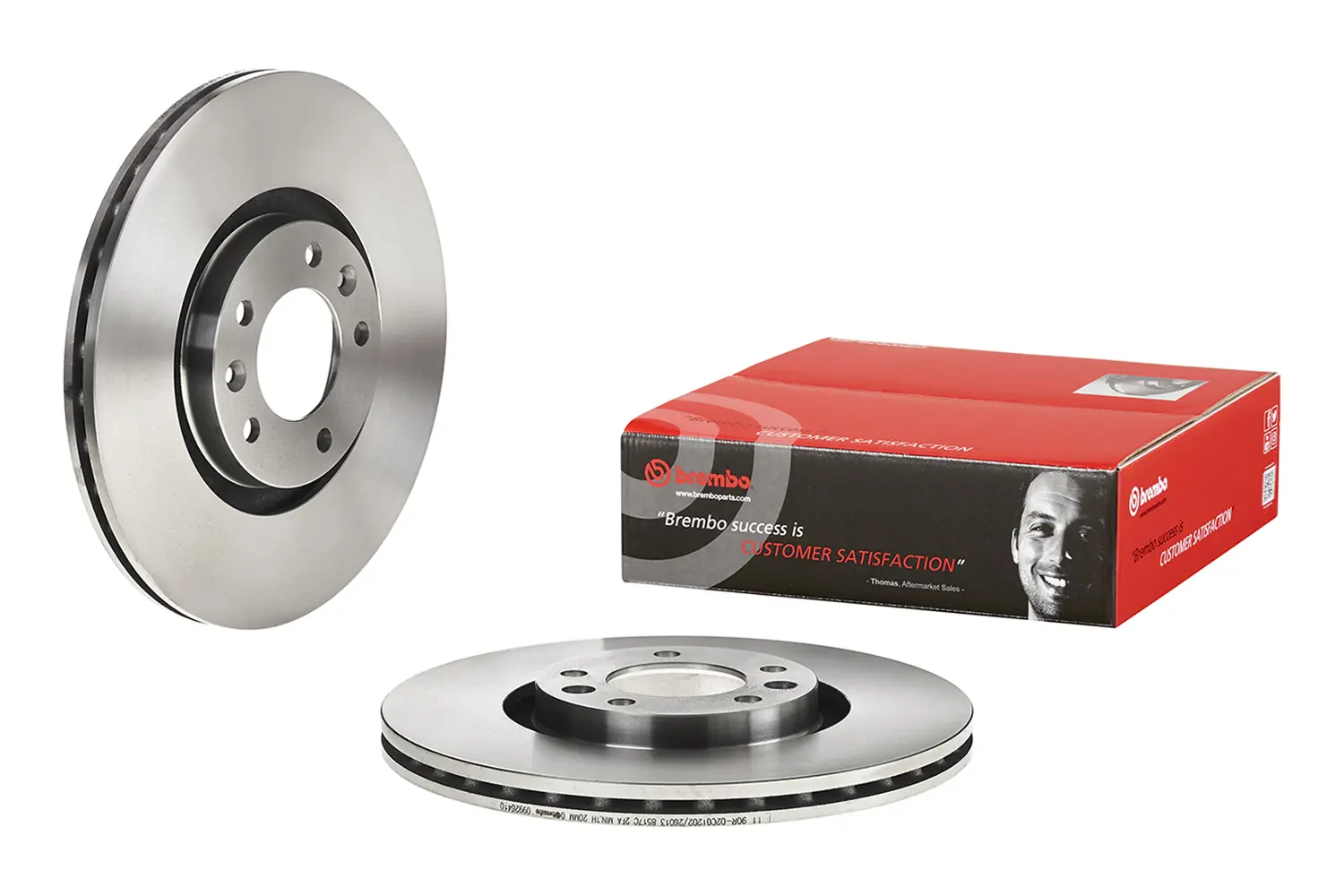

Disc

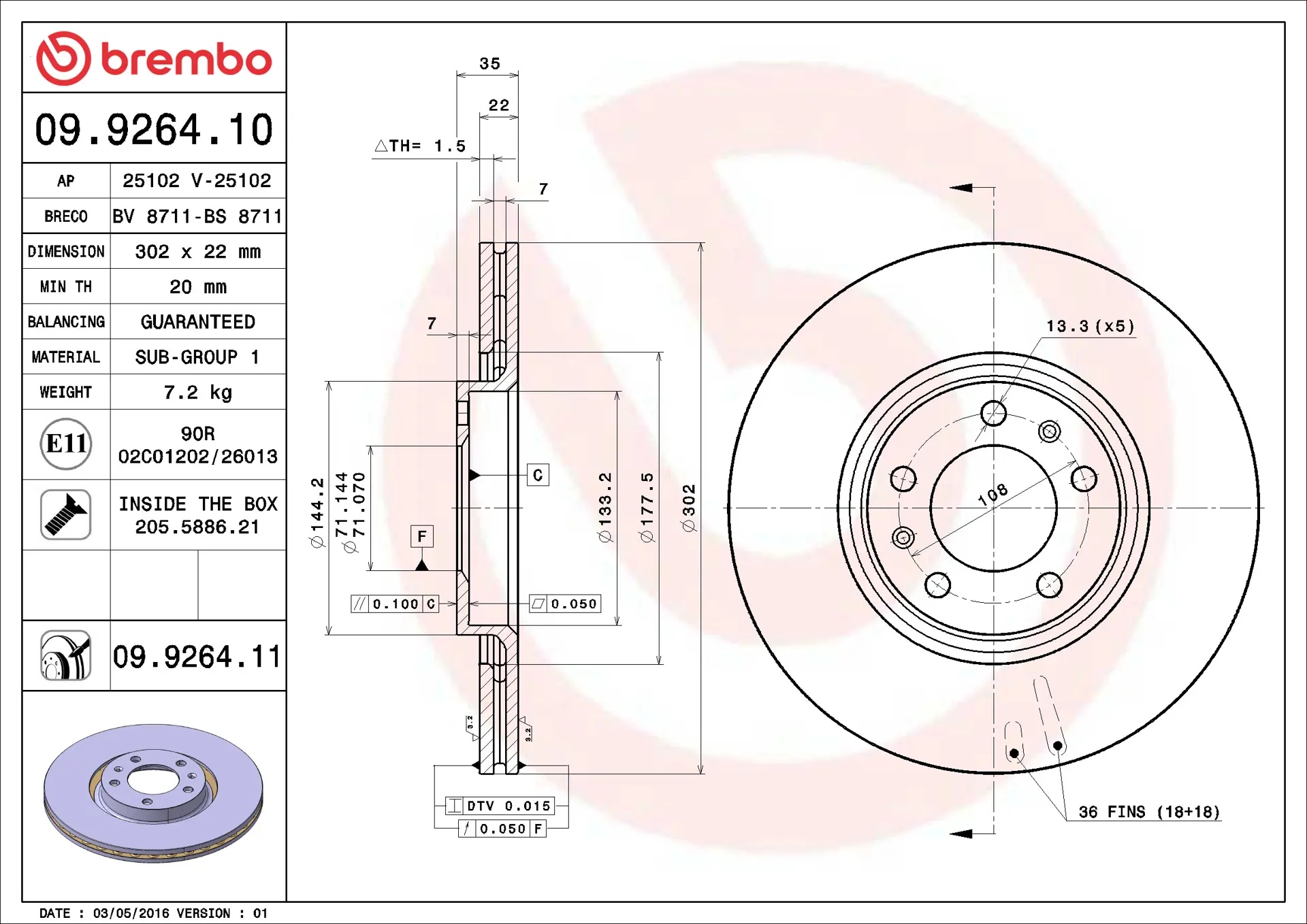

Disc technical data
Axle
Rear
Diameter (Diameter)
302 mm
Overall height (A)
35 mm
Centring diameter (B)
71 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20 mm
Tightening torque
90 Nm
Unit per box
2
EANCode
8020584926413
Discs
Brand part numbers
Brembo 09.9264.10
AP 25102
Breco BS 8711
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
CITROËN 424911
CITROËN 9687990780
