09.9468.76

Disc

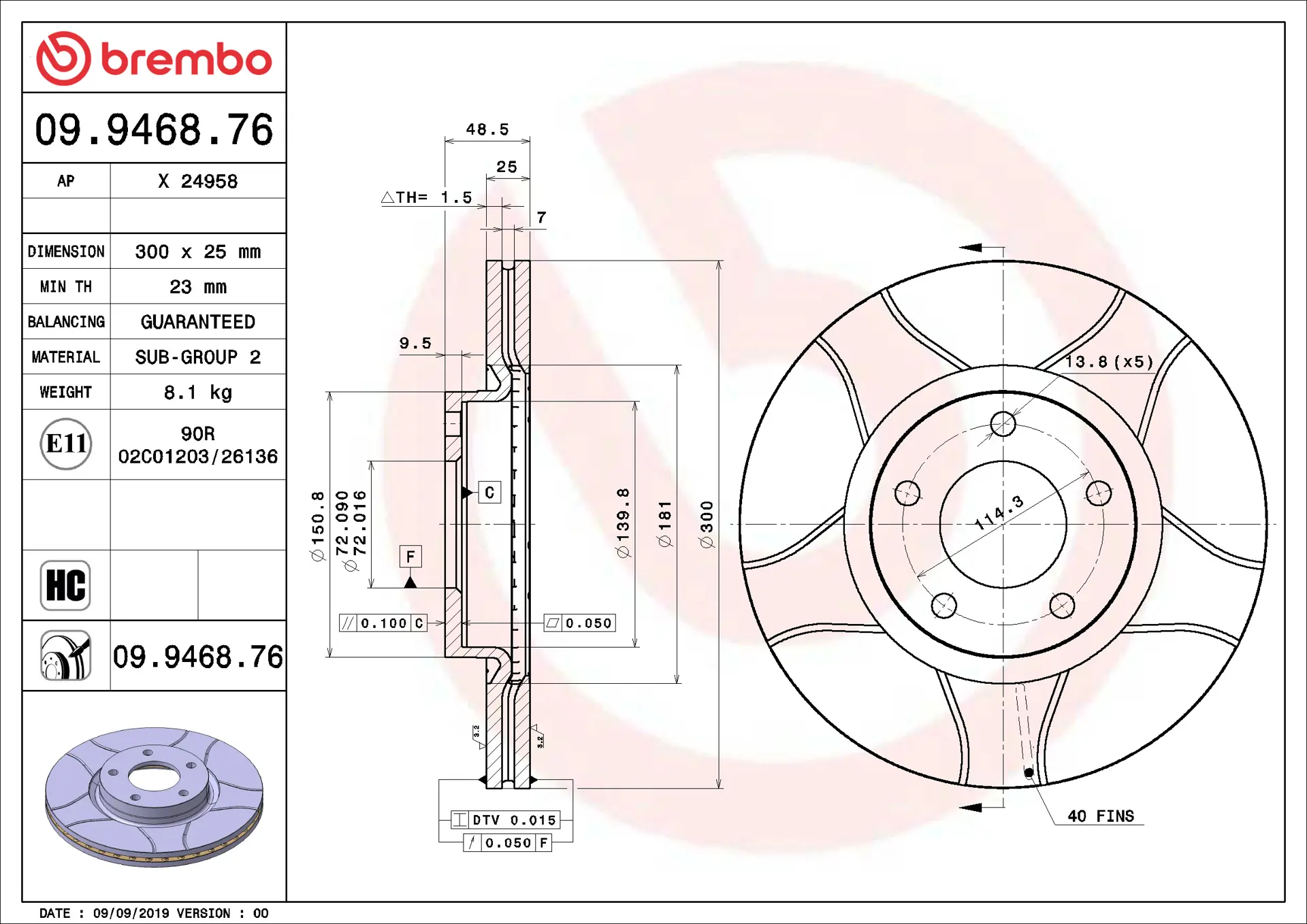

Disc technical data
Axle
Front
Diameter (Diameter)
300 mm
Overall height (A)
48,5 mm
Centring diameter (B)
72 mm
Number of holes (C)
5
Thickness (TH)
25 mm
Minimum thickness
23 mm
Tightening torque
103 Nm
Unit per box
2
EANCode
8020584031315
Discs
Brand part numbers
Brembo 09.9468.76
AP X 24958
Certification
OE Quality products
The entire range of Brembo brake discs obtained ABE approval, issued by the German Federal Authority for Road Transport (KBA) certified TÜV of Monaco. Download the KBA certificate of your Brembo Max disc at the following link and see if your car is listed on the certificate.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications
Brembo Max
Grooved and painted, Brembo Max discs ensure excellent performance in all conditions, guaranteeing a prompt response especially in the first phase of braking. They optimise performances when driving and ensure constant renewal of the friction material.
Find out more
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

MAZDA

OE Part number
Compatible OE codes
MAZDA BP6Y3325XD
MAZDA BP6Y3325XE
MAZDA BP6Y3325XF
MAZDA C26Y3325XA
MAZDA C26Y3325XB
MAZDA C26Y3325XC
