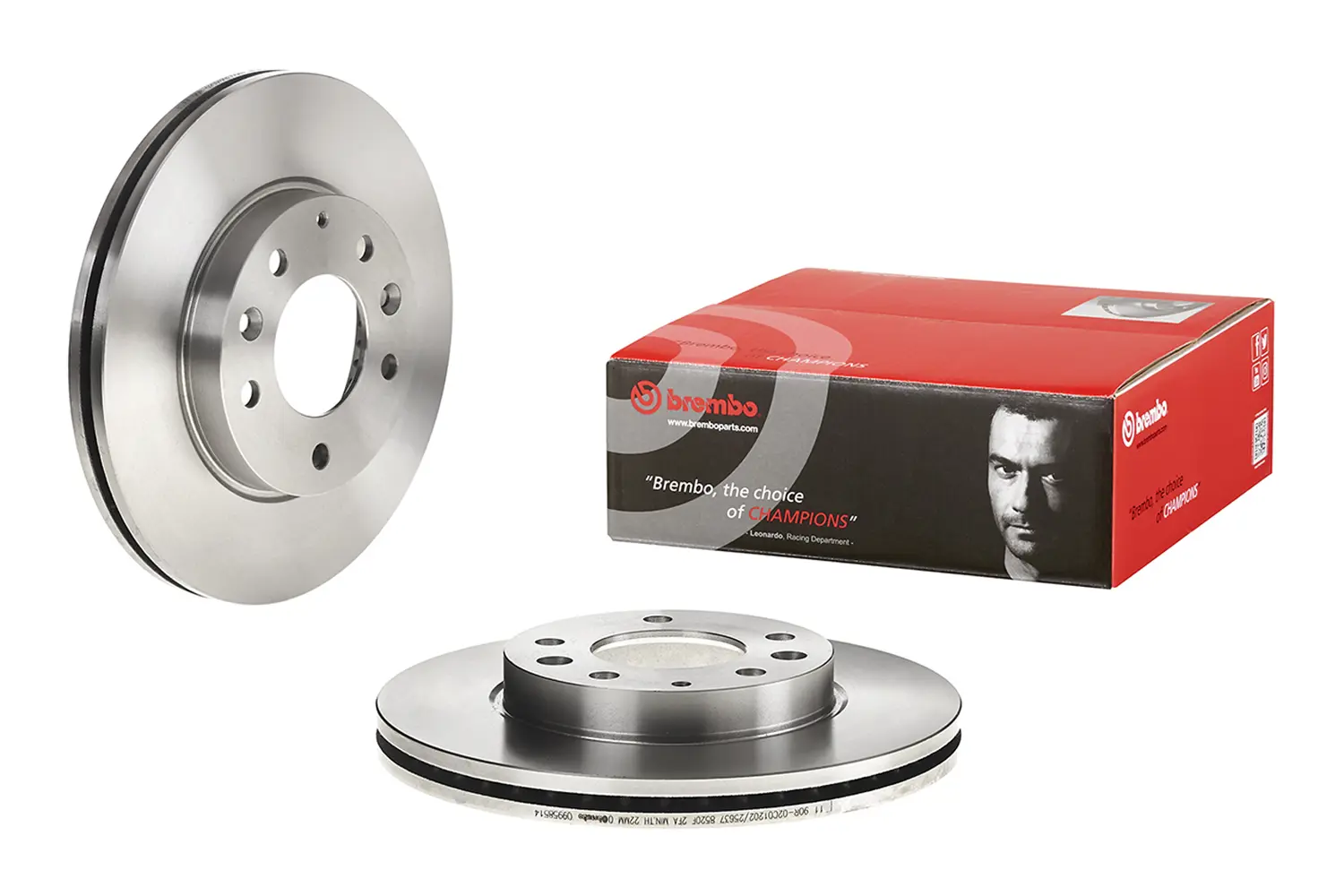

09.9585.14

Disc

In the comparator

Add to favourites

Products compared

Disc technical data

Axle

Front

Diameter

273,5 mm

Overall height (A)

47,5 mm

Centring diameter (B)

72 mm

Number of holes (C)

5

Thickness (TH)

24 mm

Minimum thickness

22 mm

Tightening torque

103 Nm

Unit per box

2

EANCode

8020584958513

Discs

Brand part numbers

Brembo 09.9585.14

AP 24935 E

Breco BS 8554

Download data sheet

09.9585.14

09.9585.14

09.9585.14

Compatible vehicles

MAZDA

Model323 F VI (BJ) Type2.0 Kw96 CV131 Year01/01 - 05/04

Model323 S VI (BJ) Type2.0 Kw96 CV131 Year01/01 - 05/04

Model6 Hatchback (GG) Type1.8 Kw88 CV120 Year08/02 - 08/07

Model6 Saloon (GG) Type1.8 Kw88 CV120 Year08/02 - 08/07

Model6 Station Wagon (GY) Type1.8 Kw88 CV120 Year08/02 - 08/07

Model626 V Station Wagon (GW) Type1.8 Kw74 CV100 Year01/00 - 10/02

Model626 V Station Wagon (GW) Type2.0 Kw85 CV116 Year02/98 - 10/02

Model626 V Station Wagon (GW) Type2.0 DITD Kw66 CV90 Year09/99 - 10/02

Model626 V Station Wagon (GW) Type2.0 H.P. Kw100 CV136 Year02/98 - 10/02

Model626 V Station Wagon (GW) Type2.0 TD Kw81 CV110 Year10/00 - 10/02

Model626 V Station Wagon (GW) Type2.0 Turbo DI Kw74 CV101 Year04/98 - 10/02

ModelPREMACY (CP) Type1.9 Kw74 CV100 Year07/99 - 03/05

ModelPREMACY (CP) Type2.0 Kw96 CV131 Year11/01 - 03/05

ModelPREMACY (CP) Type2.0 TD Kw74 CV101 Year07/00 - 03/05

OE Part number

Compatible OE codes

MAZDA GF3Y3325X

MAZDA GF3Y3325XA
