09.9750.14

Disc

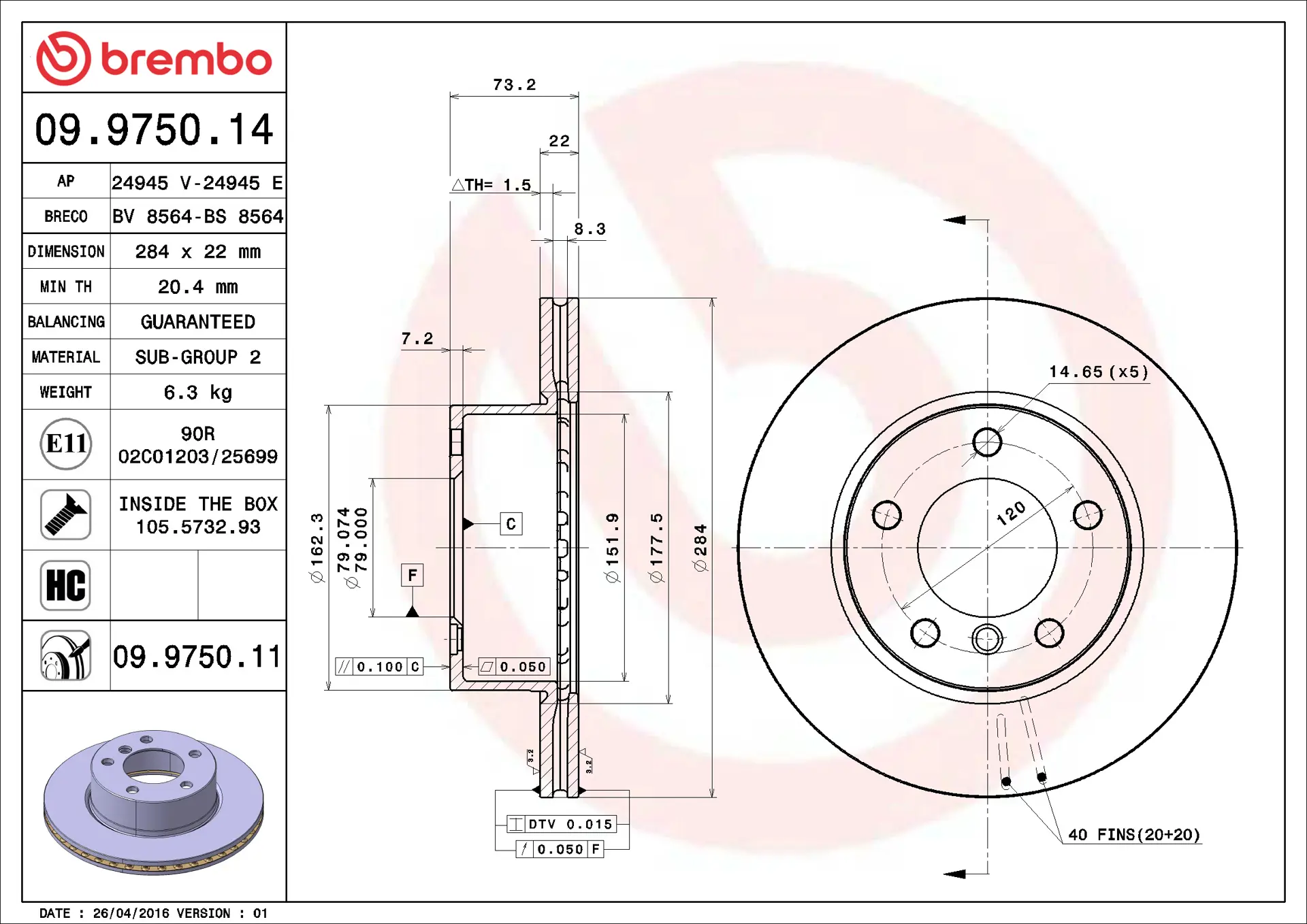

Disc technical data
Axle
Front
Diameter (Diameter)
284 mm
Overall height (A)
73 mm
Centring diameter (B)
79 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20,4 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584975015
Discs
Brand part numbers
Brembo 09.9750.14
AP 24945 E
Breco BS 8564
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
BMW 34116764629
BMW 34116854996
