09.9768.10

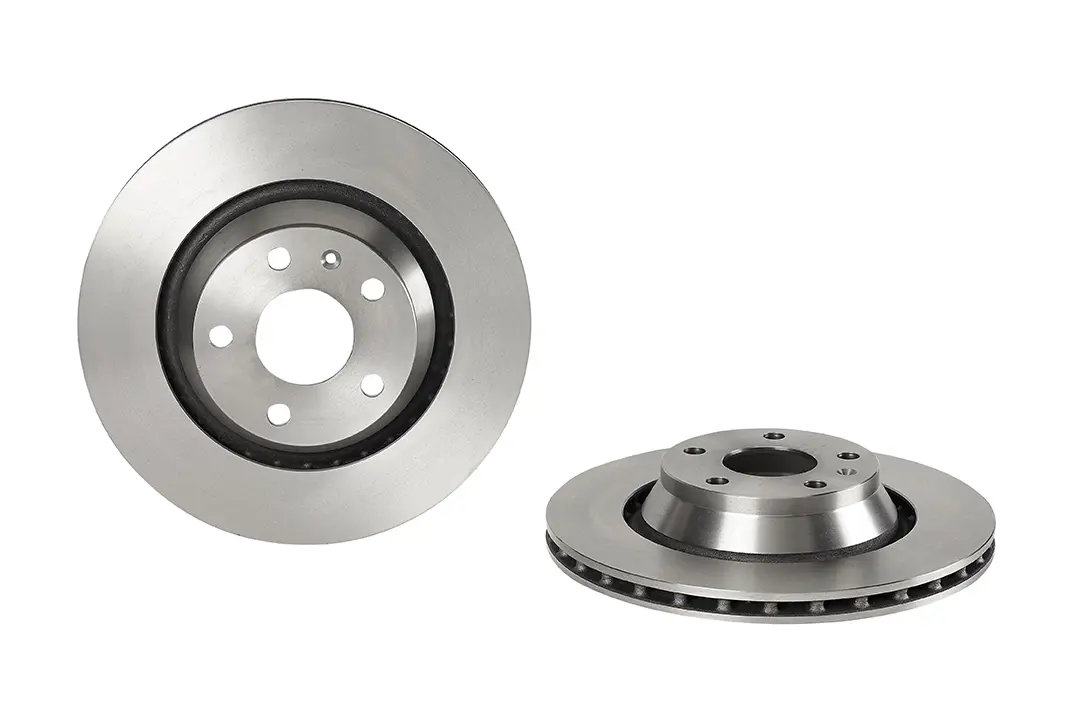

Disc

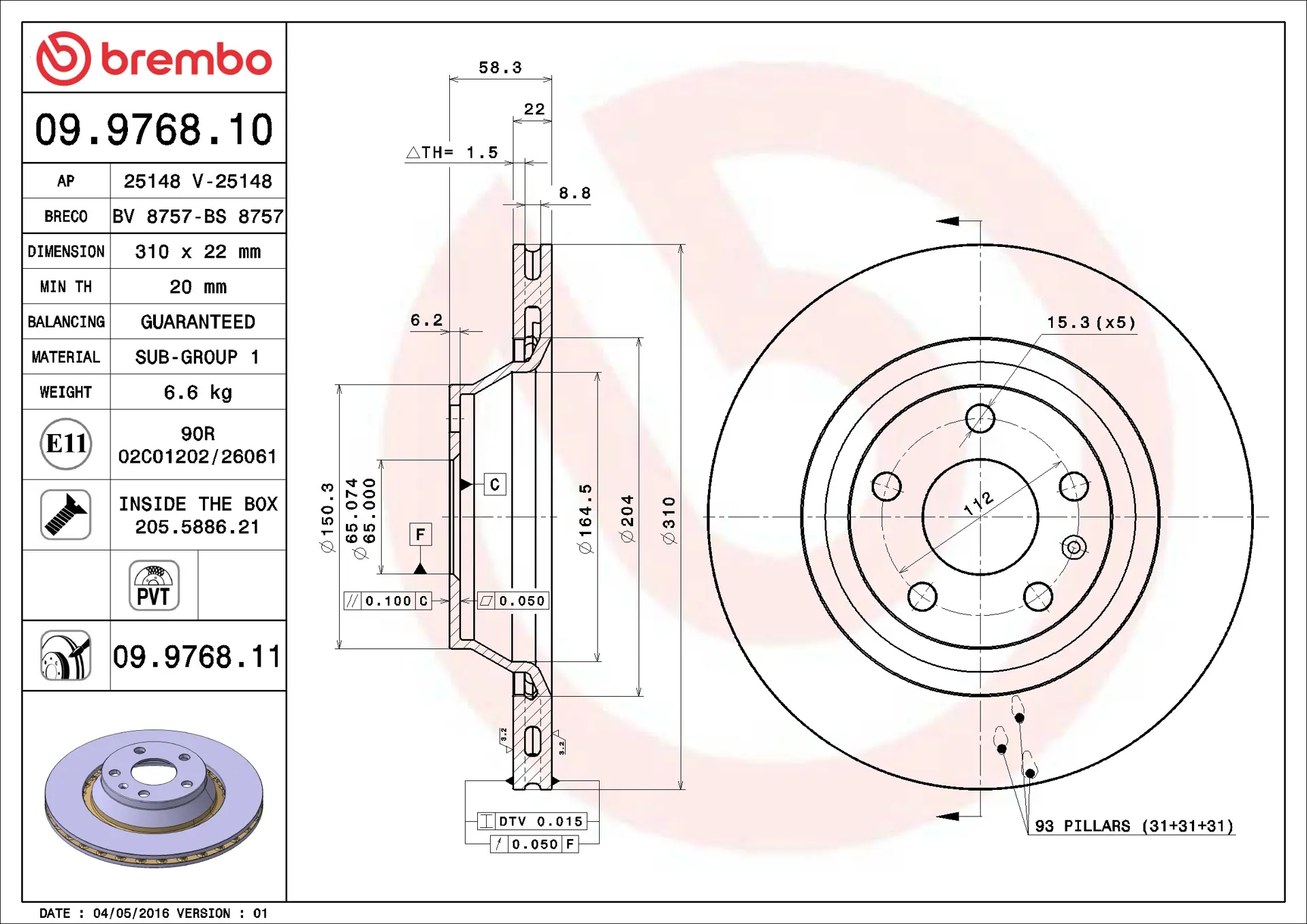

Disc technical data
Axle
Rear
Diameter
310 mm
Overall height (A)
58,2 mm
Centring diameter (B)
65 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584976814
Discs
Brand part numbers
Brembo 09.9768.10
AP 25148
Breco BS 8757
Technical specifications
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
AUDI 8J0615601A
