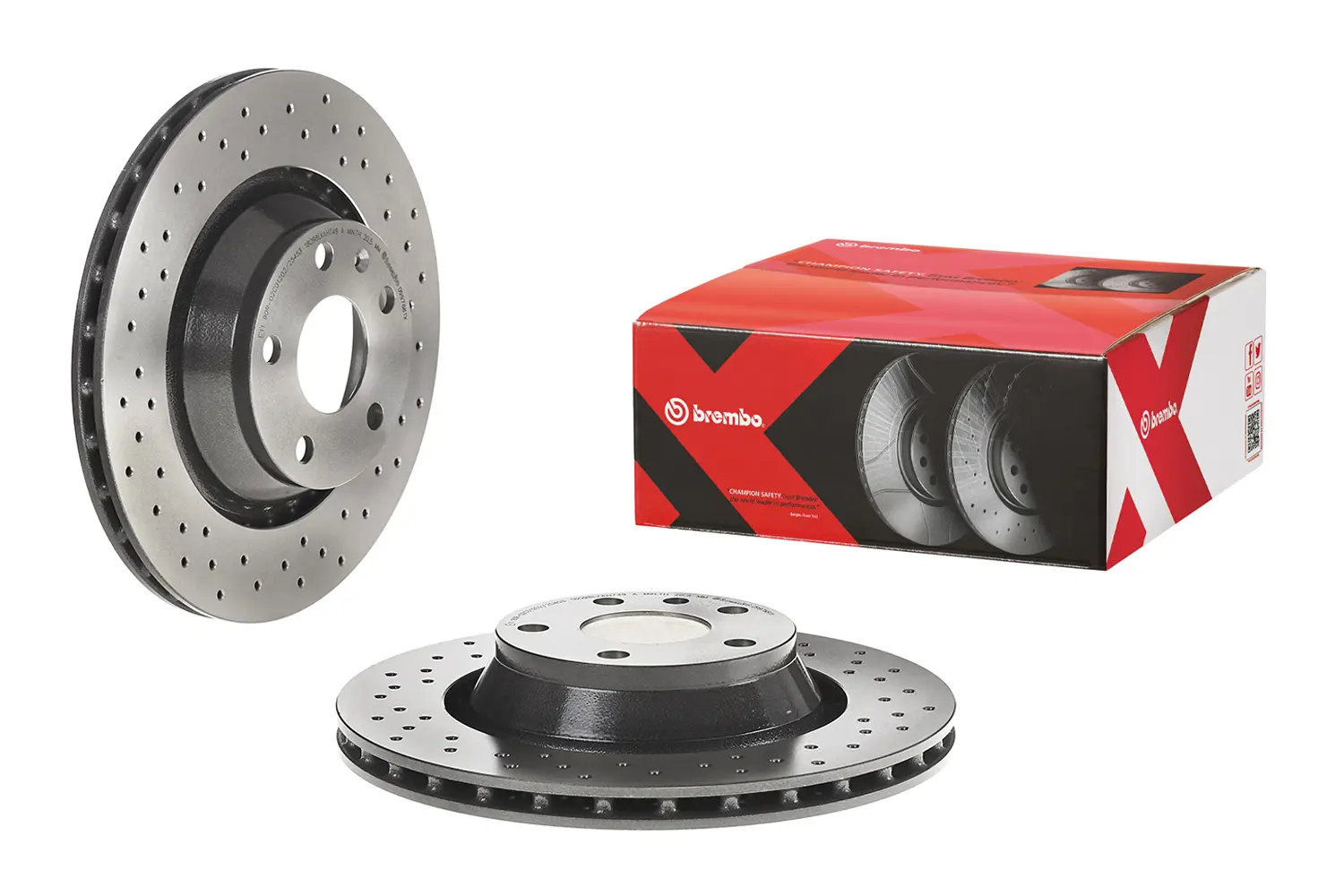

09.9768.1X

Disc

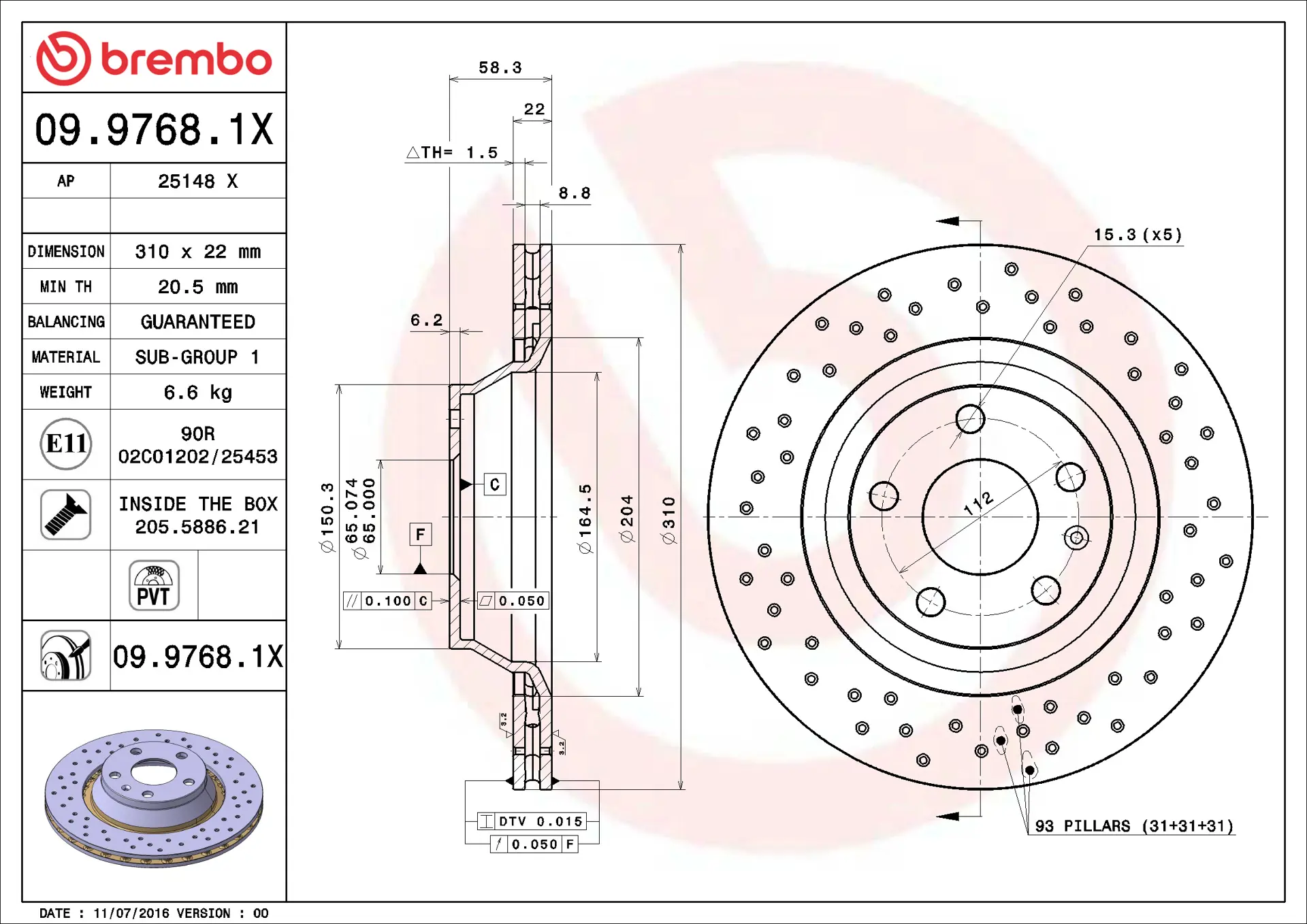

Disc technical data
Axle
Rear
Diameter
310 mm
Overall height (A)
58,2 mm
Centring diameter (B)
65 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20,5 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584032749
Discs
Brand part numbers
Brembo 09.9768.1X
AP 25148 X
Certification
UNECE R 90 homologation for the entire range of Brembo Xtra brake discs
The entire range of Brembo Xtra brake discs has obtained the new UNECE R 90 homologation. Download the UNECE R90 certificate for your Brembo Xtra disc using the following link.
If you can't find the certificate for the Brembo Max o Brembo Xtra part number you have selected or if you live in Switzerland, please contact us. Click here
Send any questions to information request
Technical specifications
Brembo Xtra
Brembo Xtra discs have holes on the braking surface that optimise performance in wet conditions, ensure constant renewal of the friction material and prompt braking in all conditions.
Find out more
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
AUDI 8J0615601A
