09.9825.10

Disc

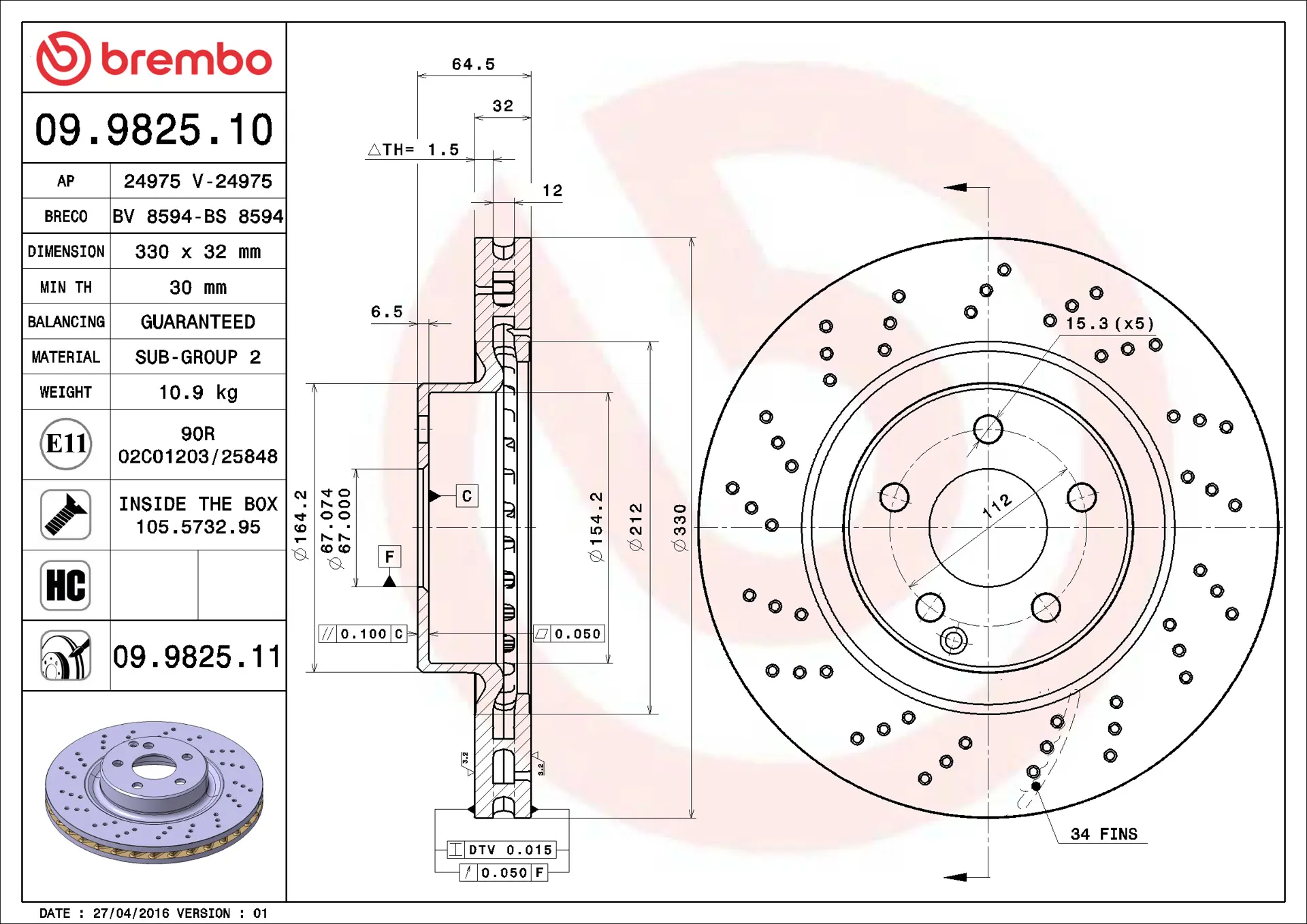

Disc technical data
Axle
Front
Diameter
330 mm
Overall height (A)
64,5 mm
Centring diameter (B)
67 mm
Number of holes (C)
5
Thickness (TH)
32 mm
Minimum thickness
30 mm
Tightening torque
130 Nm
Unit per box
1
EANCode
8020584982518
Discs
Brand part numbers
Brembo 09.9825.10
AP 24975
Breco BS 8594
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
MERCEDES-BENZ 2304210512
MERCEDES-BENZ 2304210812
MERCEDES-BENZ A2304210512
MERCEDES-BENZ A2304210812
