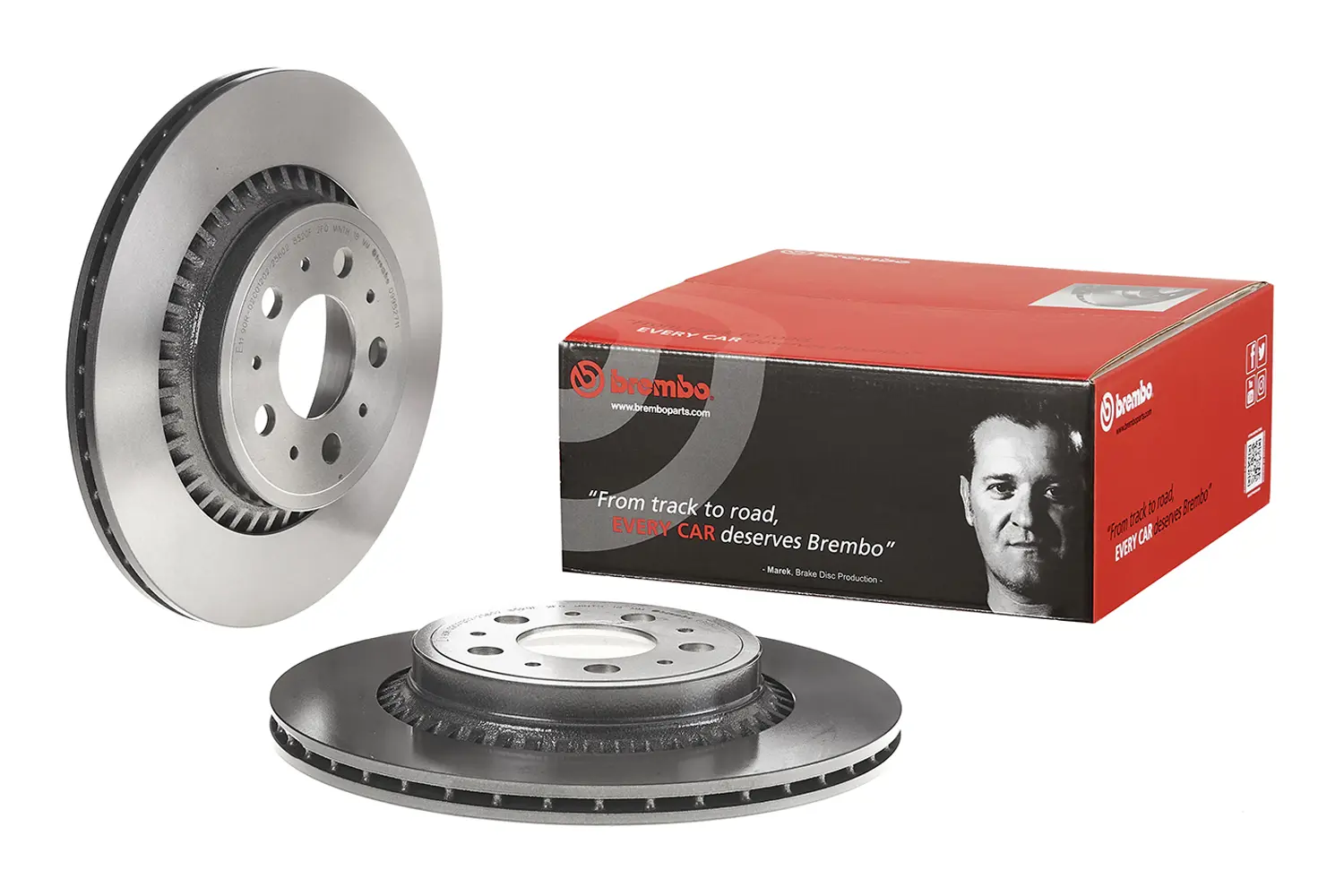

09.9827.11

Name: Disc 09.9827.11
Brand: Brembo

Disc

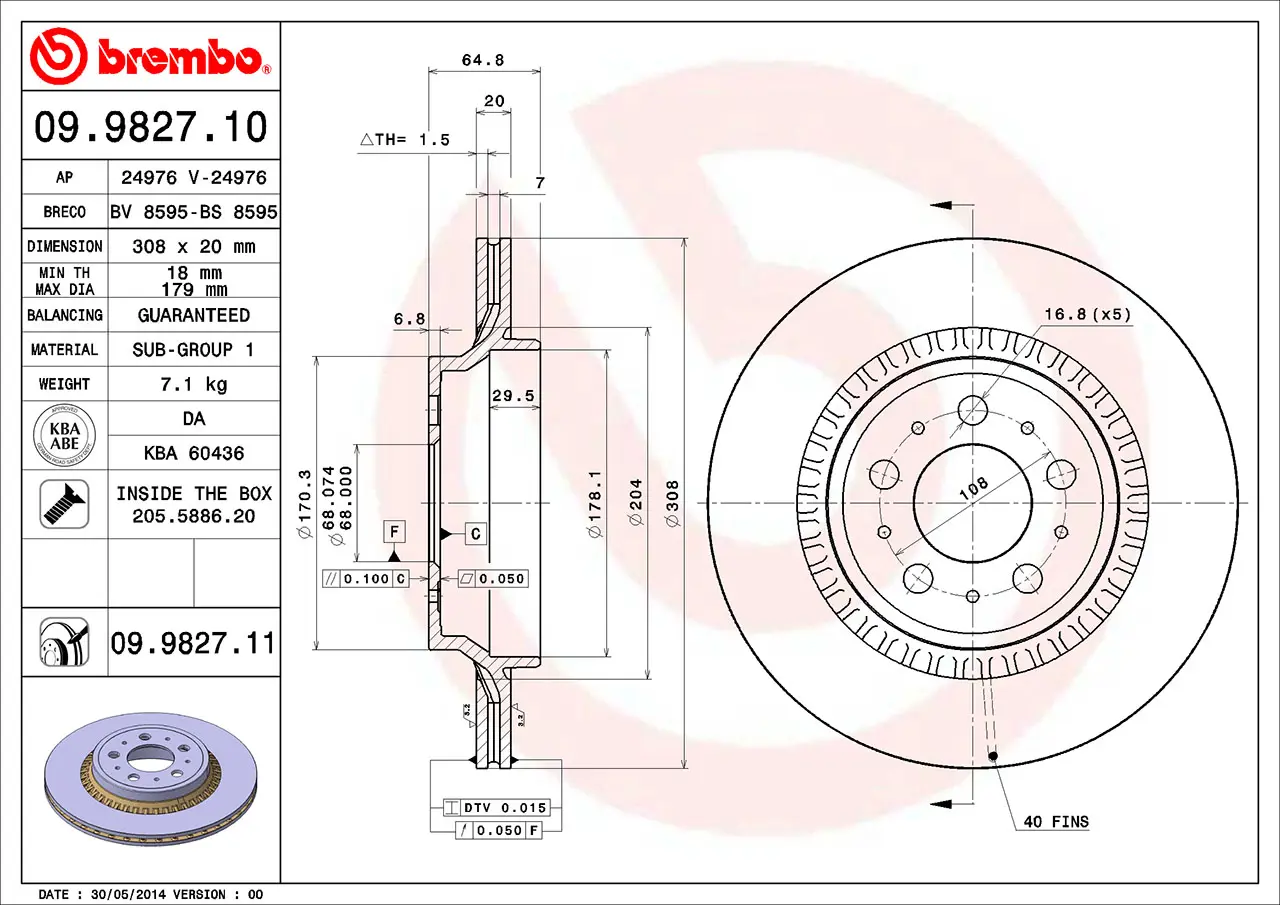

Disc technical data

Axle

Rear

Diameter (Diameter)

308 mm

Overall height (A)

64,8 mm

Centring diameter (B)

68 mm

Number of holes (C)

Thickness (TH)

20 mm

Minimum thickness

18 mm

Tightening torque

140 Nm

Unit per box

EANCode

8020584025581

Brand part numbers

Brembo 09.9827.11

AP 24976 V

Breco BV 8595

Where to buy

Download data sheet

Technical specifications

Disc with fixing screw

By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.

UV Disc

The UV coating process provides a superior corrosion resistance and full disc protection.

Find out more

Compatible vehicles

VOLVO

ModelXC90 I (275) Type2.5 T AWD Kw154 Year10/02 - 09/14

ModelXC90 I (275) Type2.5 T AWD Kw154 Year10/12 - 09/14

ModelXC90 I (275) Type3.2 AWD Kw175 Year03/06 - 12/10

ModelXC90 I (275) Type3.2 AWD Kw179 Year04/10 - 12/12

ModelXC90 I (275) TypeD3 / D5 Kw120 Year04/09 - 12/14

ModelXC90 I (275) TypeD5 AWD Kw147 Year01/11 - 12/14

ModelXC90 I (275) TypeD5 AWD Kw136 Year04/05 - 12/10

ModelXC90 I (275) TypeD5 AWD Kw120 Year10/02 - 12/06

ModelXC90 I (275) TypeD5 AWD Kw120 Year10/07 - 12/10

ModelXC90 I (275) TypeT6 AWD Kw200 Year10/02 - 12/06

ModelXC90 I (275) TypeV8 AWD Kw232 Year01/05 - 12/10

OE Part number

Compatible OE codes

VOLVO 31423152

VOLVO 31471824

VOLVO 8624926

VOLVO 86249260

VOLVO 86249265
