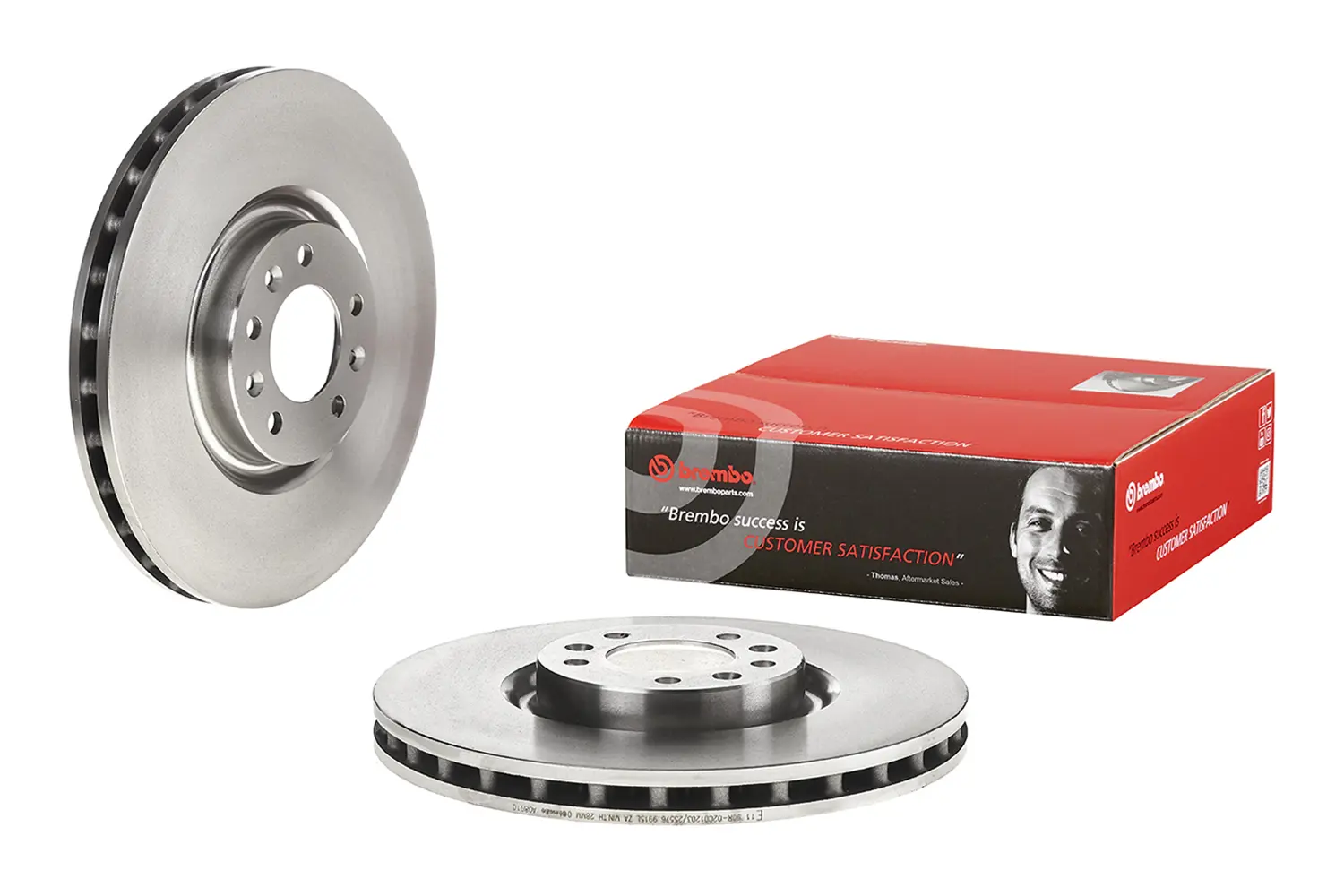

09.A089.10

Disc

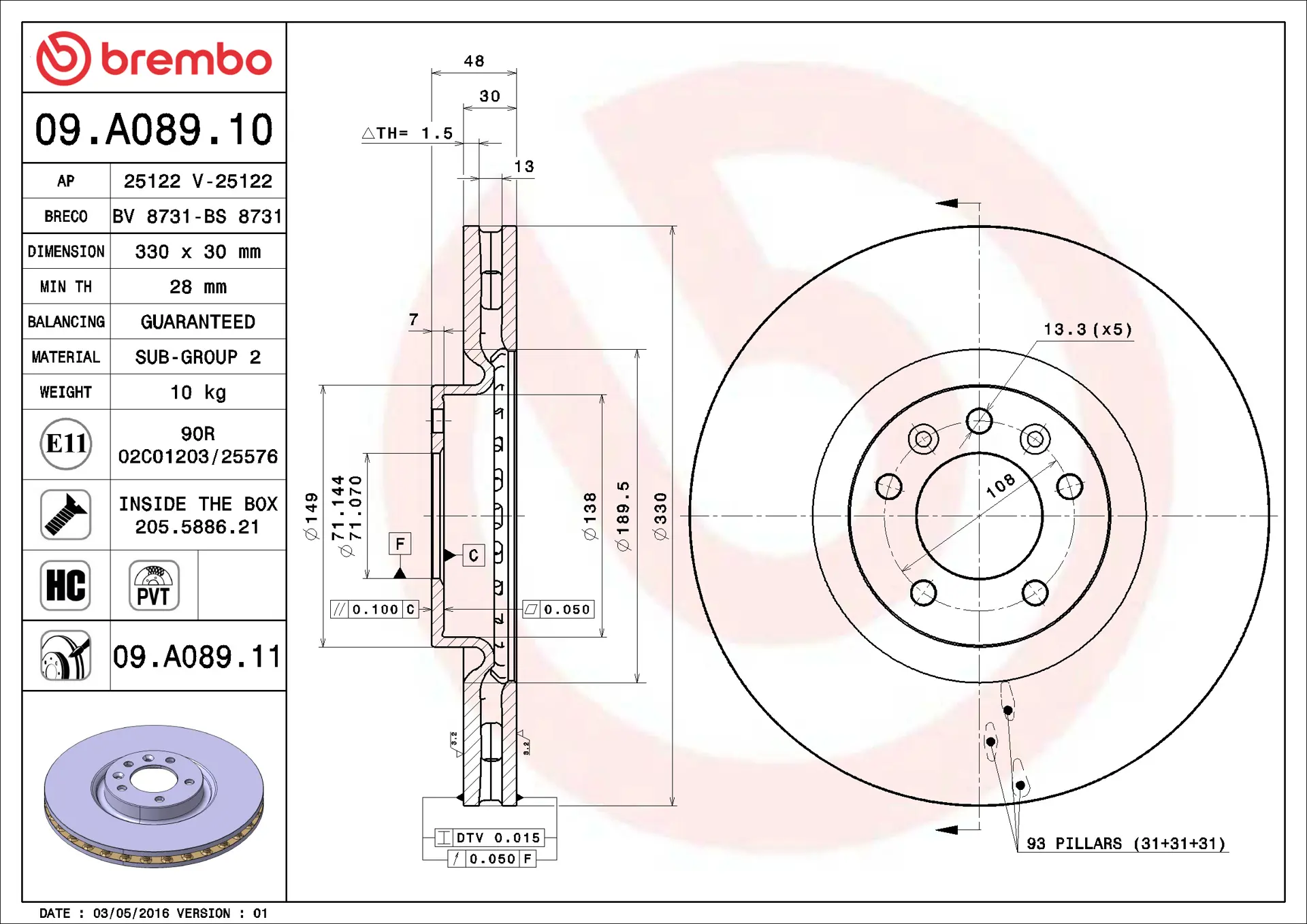

Disc technical data
Axle
Front
Diameter (Diameter)
330 mm
Overall height (A)
48 mm
Centring diameter (B)
71 mm
Number of holes (C)
5
Thickness (TH)
30 mm
Minimum thickness
28 mm
Tightening torque
90 Nm
Unit per box
1
EANCode
8020584017852
Discs
Brand part numbers
Brembo 09.A089.10
AP 25122
Breco BS 8731
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
Compatible vehicles

CITROËN

CITROËN (DF-PSA)

PEUGEOT

OE Part number
Compatible OE codes
CITROËN 424970
CITROËN 4249A7
PEUGEOT 424970
PEUGEOT 4249A7
