09.A293.10

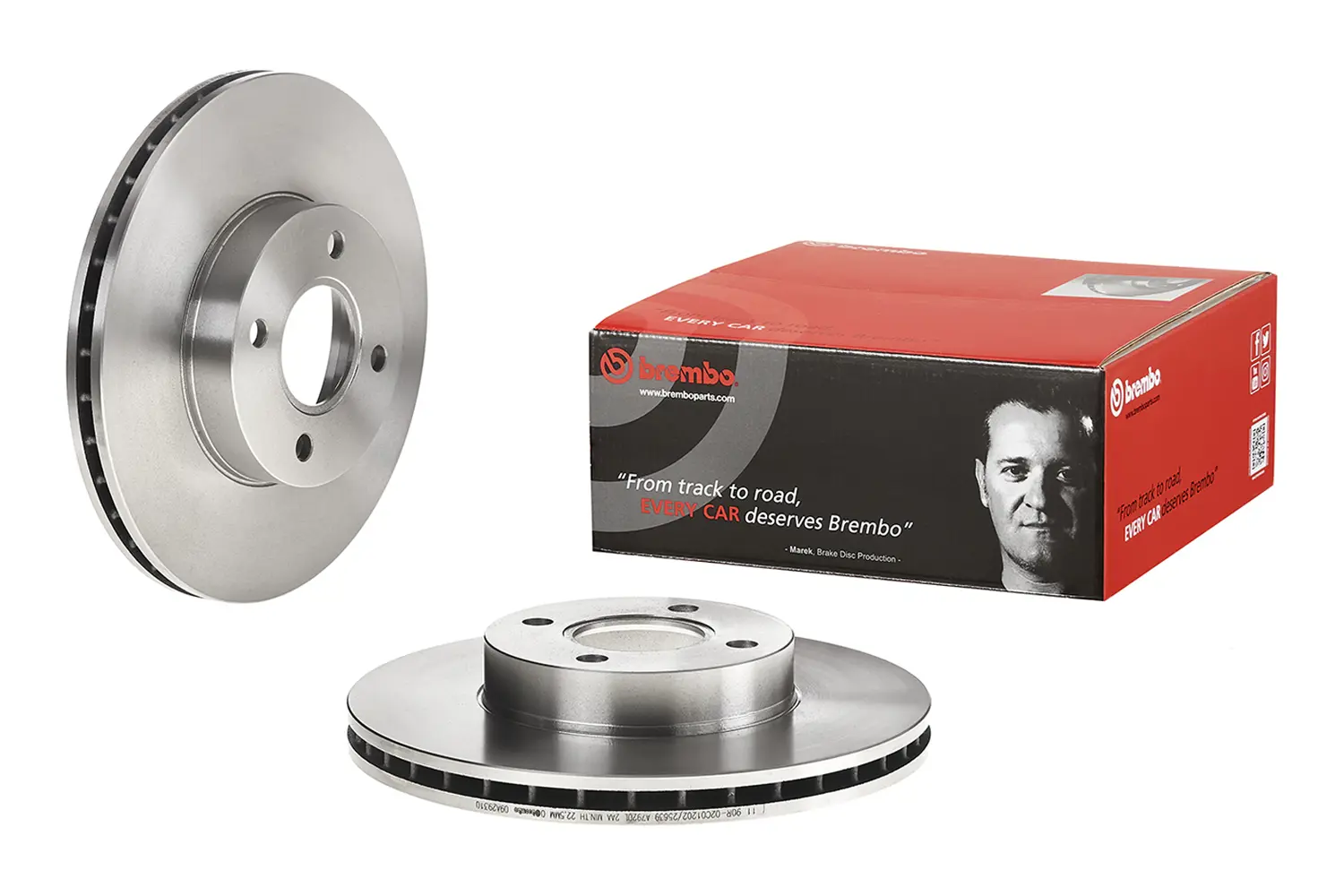

Disc
Replaces: 09.9898.52

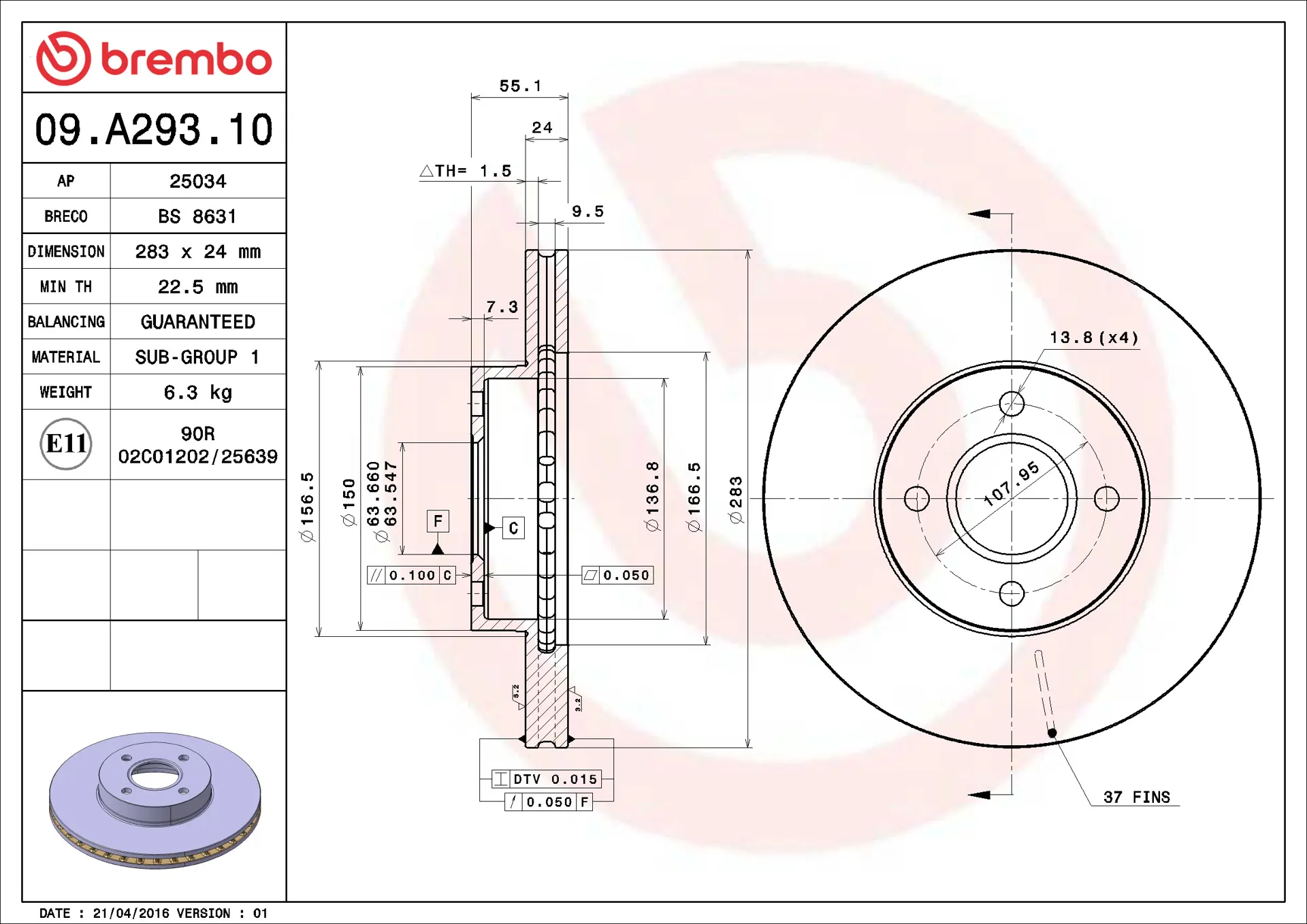

Disc technical data
Axle
Front
Diameter
283 mm
Overall height (A)
55,1 mm
Centring diameter (B)
63,6 mm
Number of holes (C)
4
Thickness (TH)
24 mm
Minimum thickness
22,5 mm
Tightening torque
100 Nm
Unit per box
2
EANCode
8020584015339
Discs
Brand part numbers
Brembo 09.A293.10
AP 25034
Breco BS 8631
OE Part number
Compatible OE codes
FORD 1637618
FORD 1648717
FORD 5022665
FORD 5023482
