09.A295.11

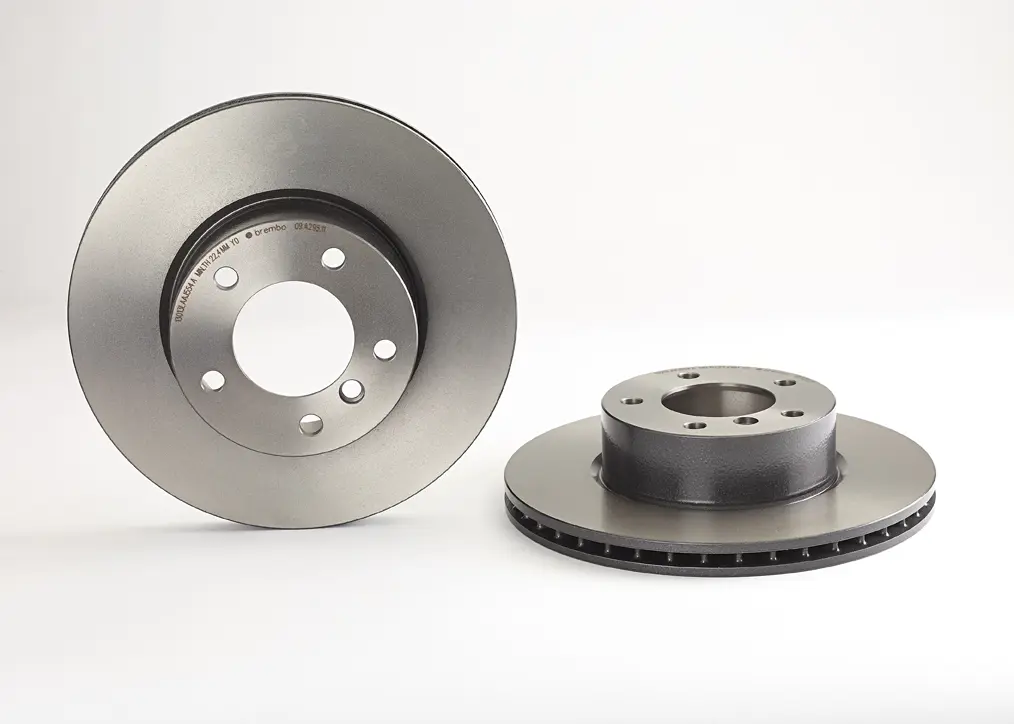

Disc
No longer available
This product has been replaced by: 09.C649.11

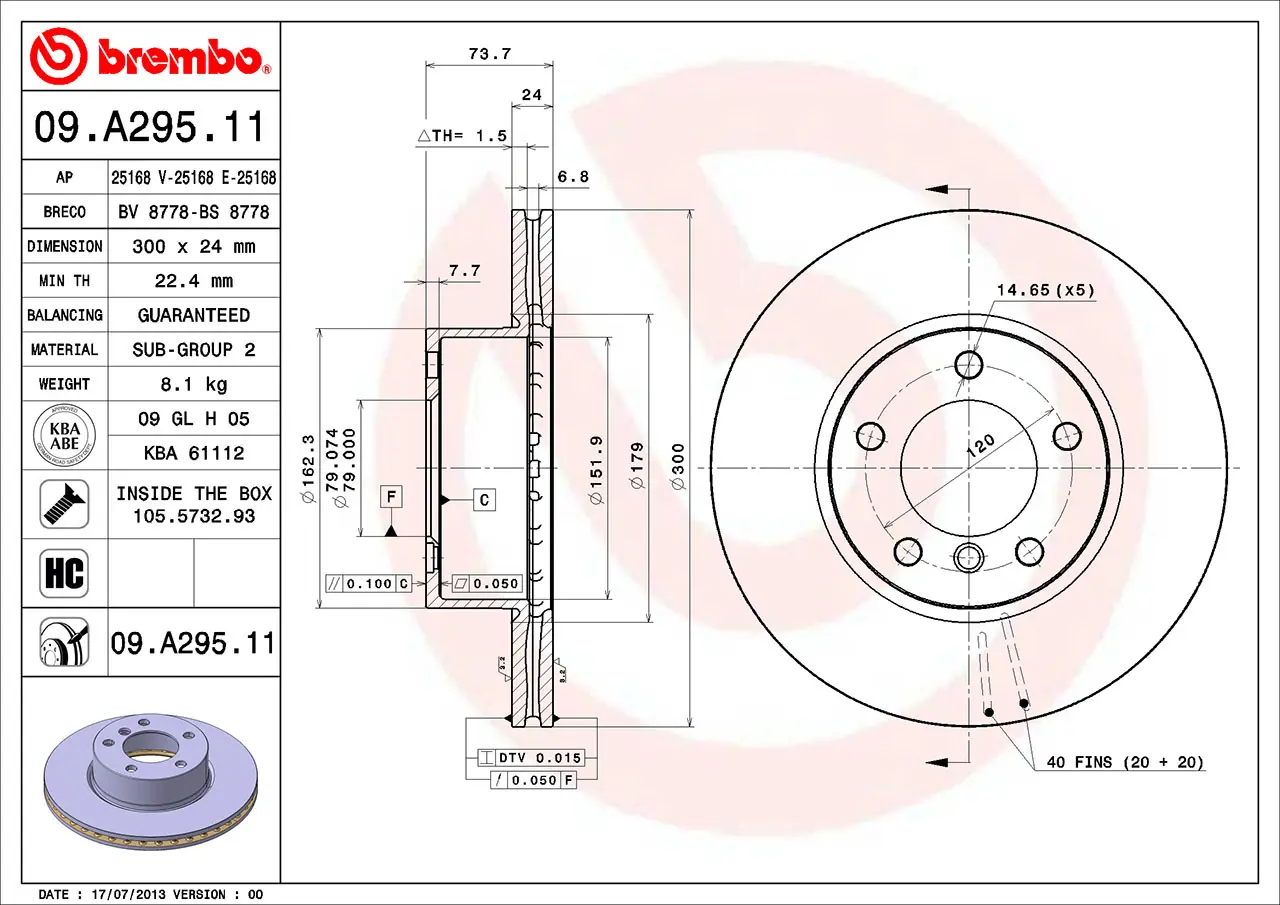

Disc technical data
Axle
Front
Diameter (Diameter)
300 mm
Overall height (A)
73,7 mm
Centring diameter (B)
79 mm
Number of holes (C)
5
Thickness (TH)
24 mm
Minimum thickness
22,4 mm
Tightening torque
120 Nm
Unit per box
2
EANCode
8020584030677
Discs
Brand part numbers
Brembo 09.A295.11
AP 25168 V
Breco BV 8778
Certification
Send any questions to information request
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Replacement info
Compatible vehicles

BMW

BMW (BRILLIANCE)

OE Part number
Compatible OE codes
BMW 34116764643
BMW 34116772669
BMW 34116783752
BMW 34116854998
