09.A500.11

Disc

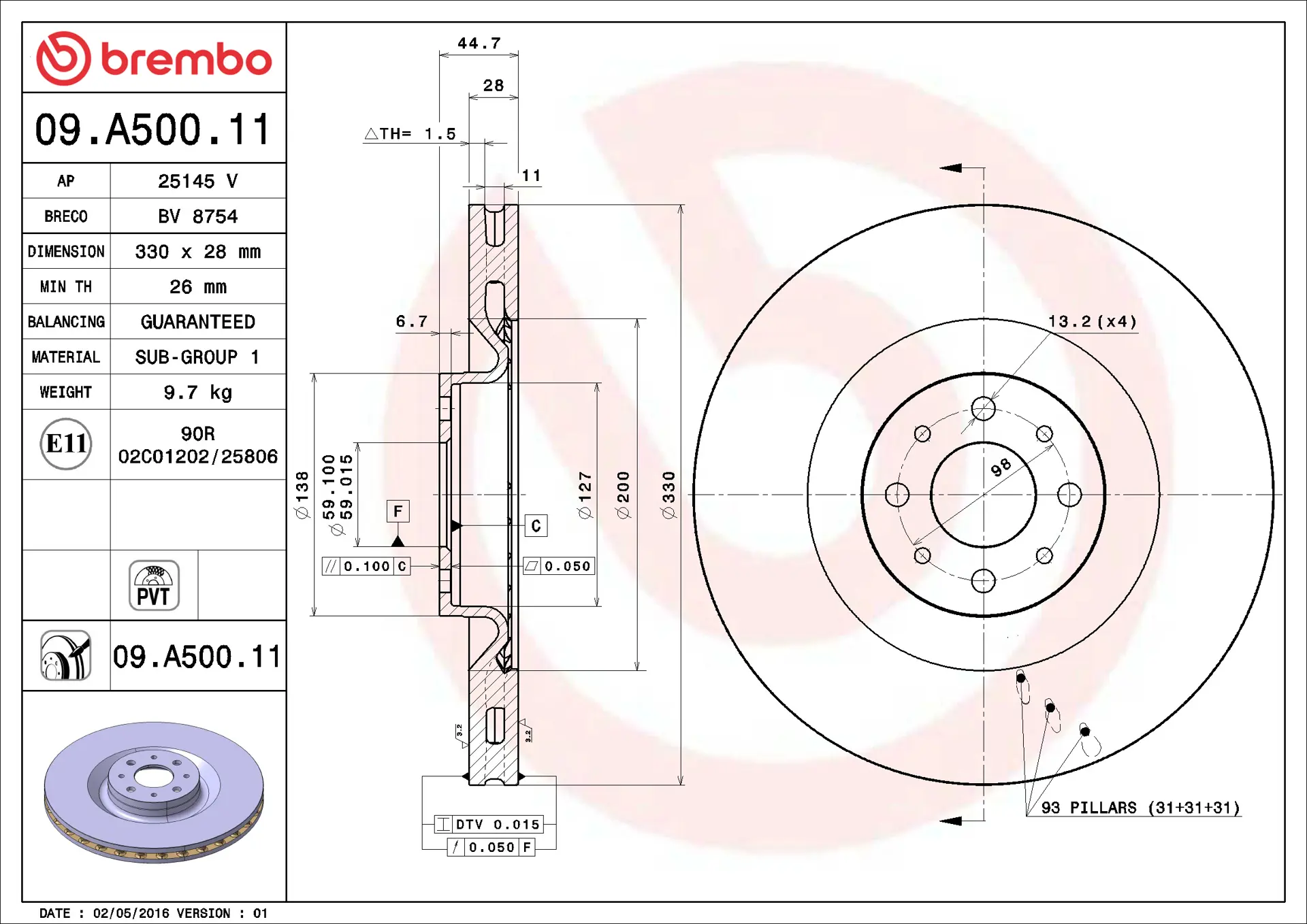

Disc technical data
Axle
Front
Diameter (Diameter)
330 mm
Overall height (A)
44,7 mm
Centring diameter (B)
59 mm
Number of holes (C)
4
Thickness (TH)
28 mm
Minimum thickness
26 mm
Tightening torque
98 Nm
Unit per box
2
EANCode
8020584018439
Discs
Brand part numbers
Brembo 09.A500.11
AP 25145 V
Breco BV 8754
Technical specifications
PVT vented disc
The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.
Find out more
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

LANCIA

OE Part number
Compatible OE codes
LANCIA 51827474
