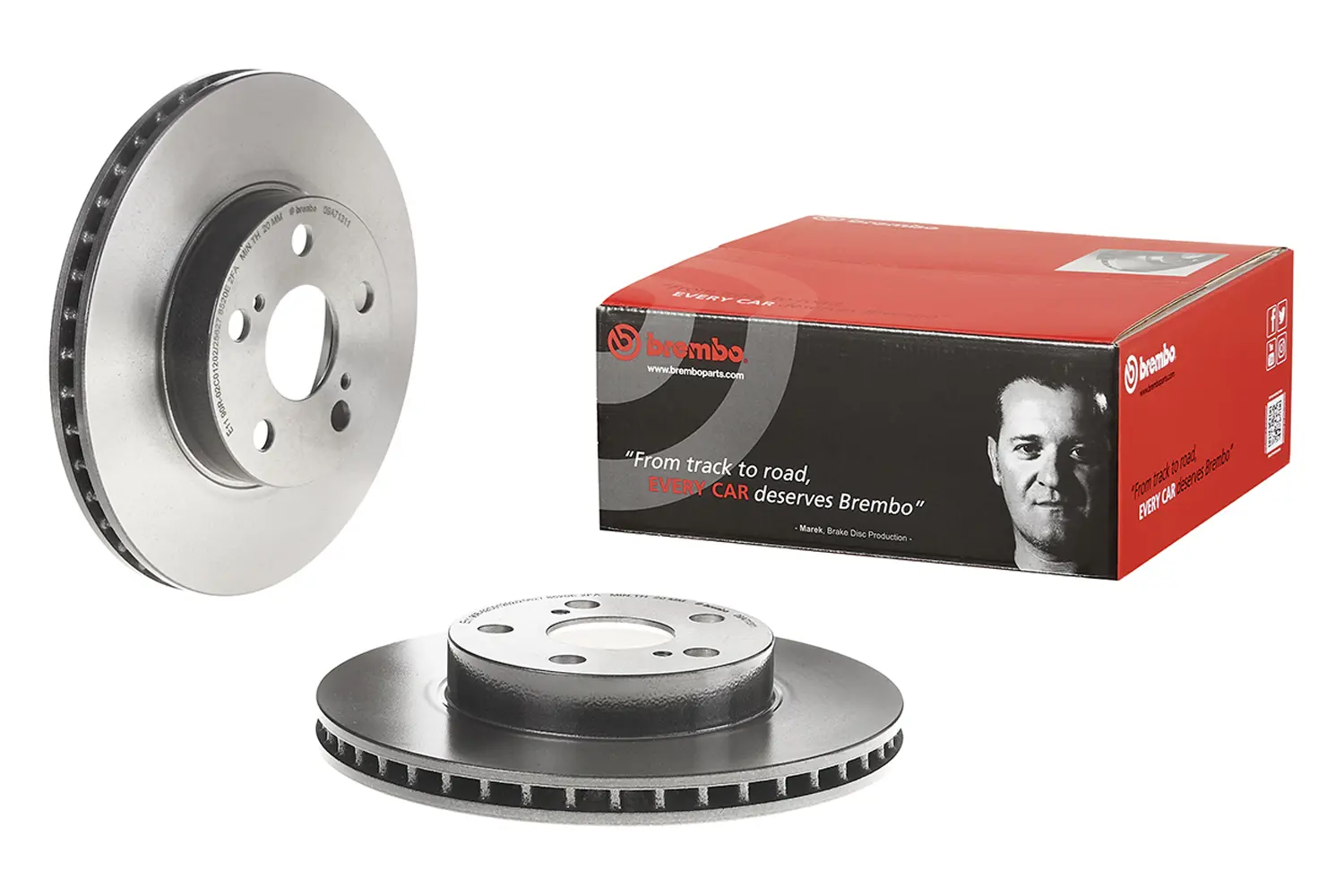

09.A713.11

Disc

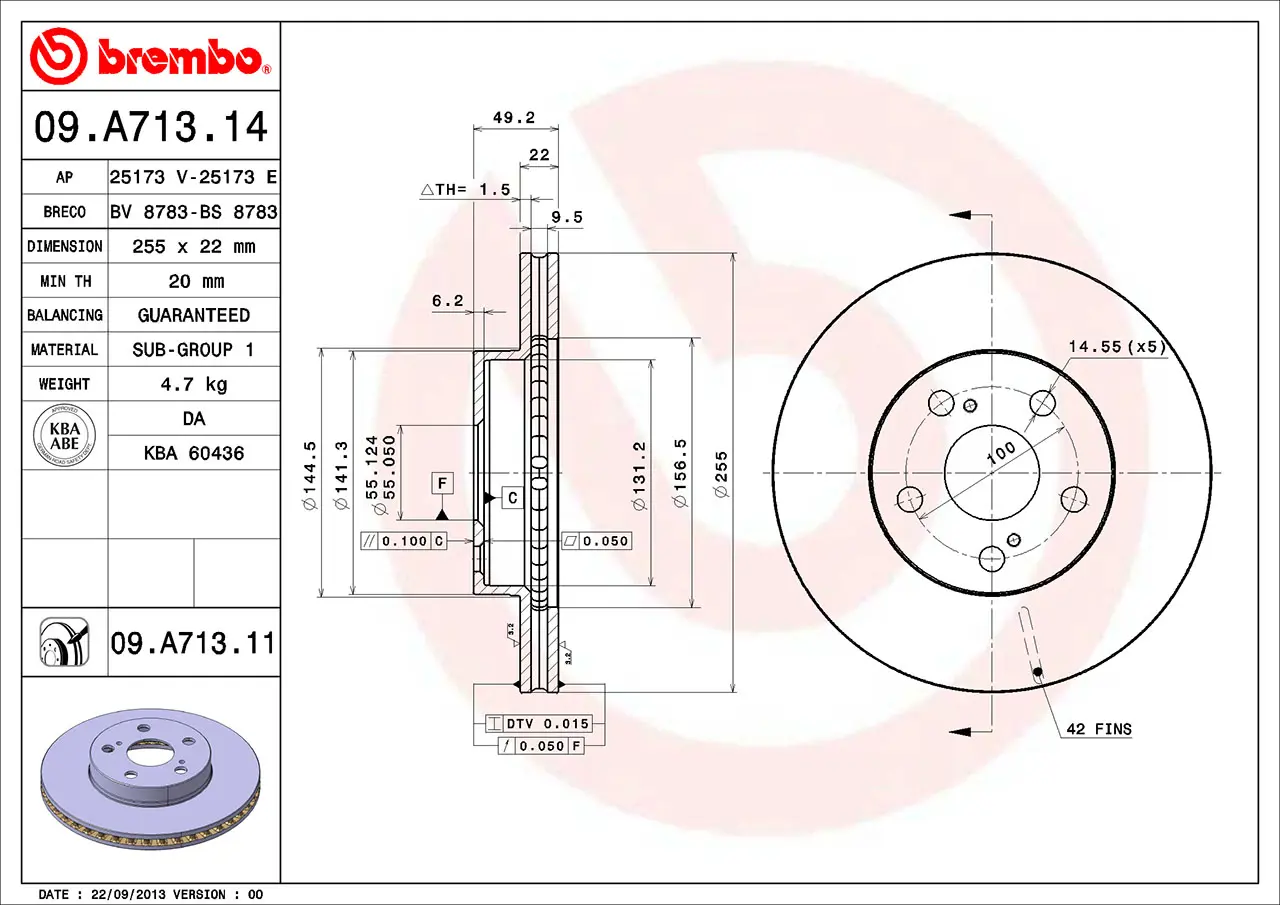

Disc technical data
Axle
Front
Diameter (Diameter)
255 mm
Overall height (A)
49,2 mm
Centring diameter (B)
55 mm
Number of holes (C)
5
Thickness (TH)
22 mm
Minimum thickness
20 mm
Tightening torque
103 Nm
Unit per box
2
EANCode
8020584032923
Discs
Brand part numbers
Brembo 09.A713.11
AP 25173 V
Breco BV 8783
OE Part number
Compatible OE codes
TOYOTA 4351247030
