09.B269.11

Disc

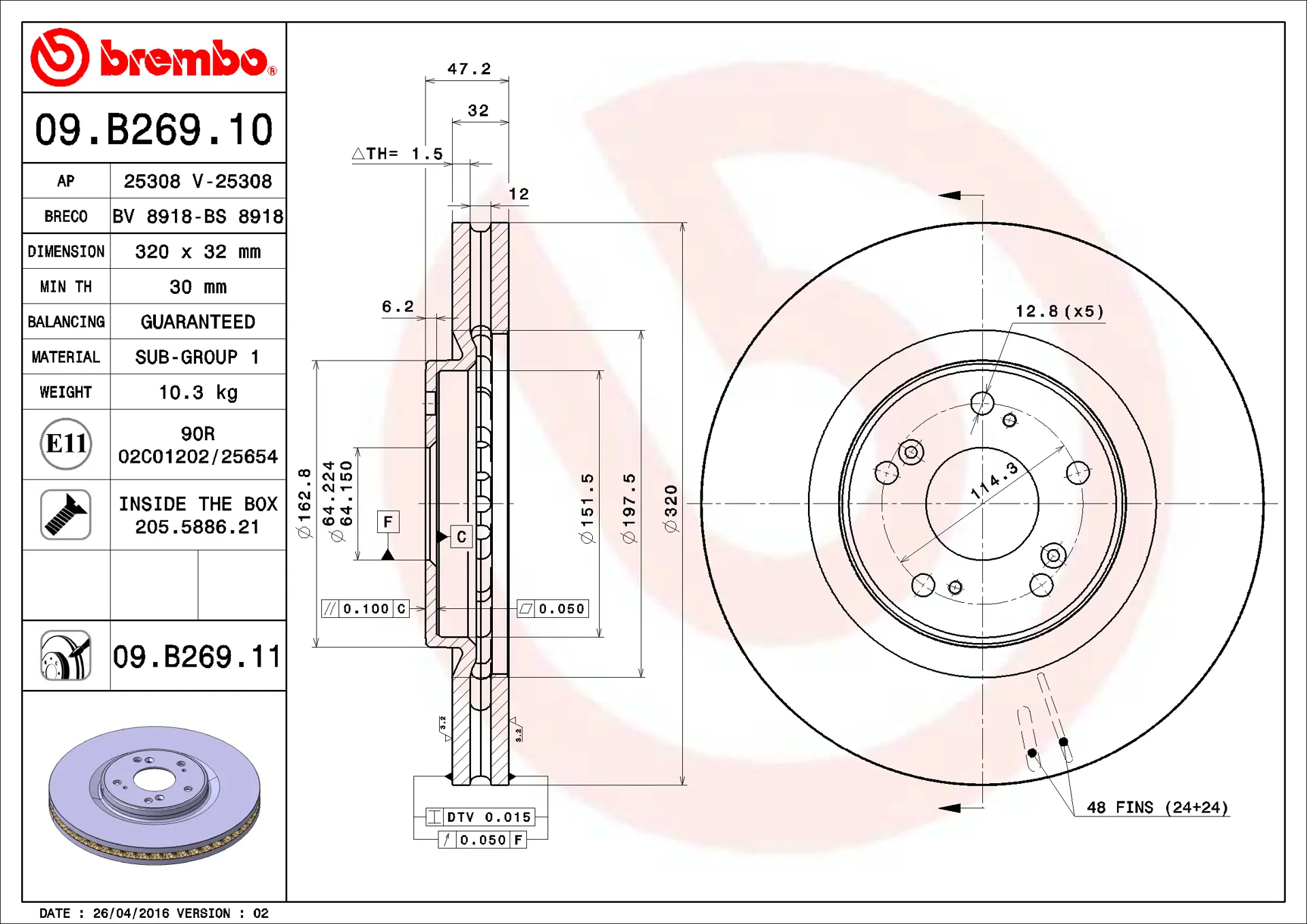

Disc technical data
Axle
Front
Diameter (Diameter)
320 mm
Overall height (A)
47,2 mm
Centring diameter (B)
64,2 mm
Number of holes (C)
5
Thickness (TH)
32 mm
Minimum thickness
30 mm
Tightening torque
108 Nm
Unit per box
1
EANCode
8020584222263
Discs
Brand part numbers
Brembo 09.B269.11
AP 25308 V
Breco BV 8918
Technical specifications
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
OE Part number
Compatible OE codes
HONDA 45251TL0G50
HONDA 45251TL0G51
