09.B280.41

Disc
Replaces: 09.A613.40

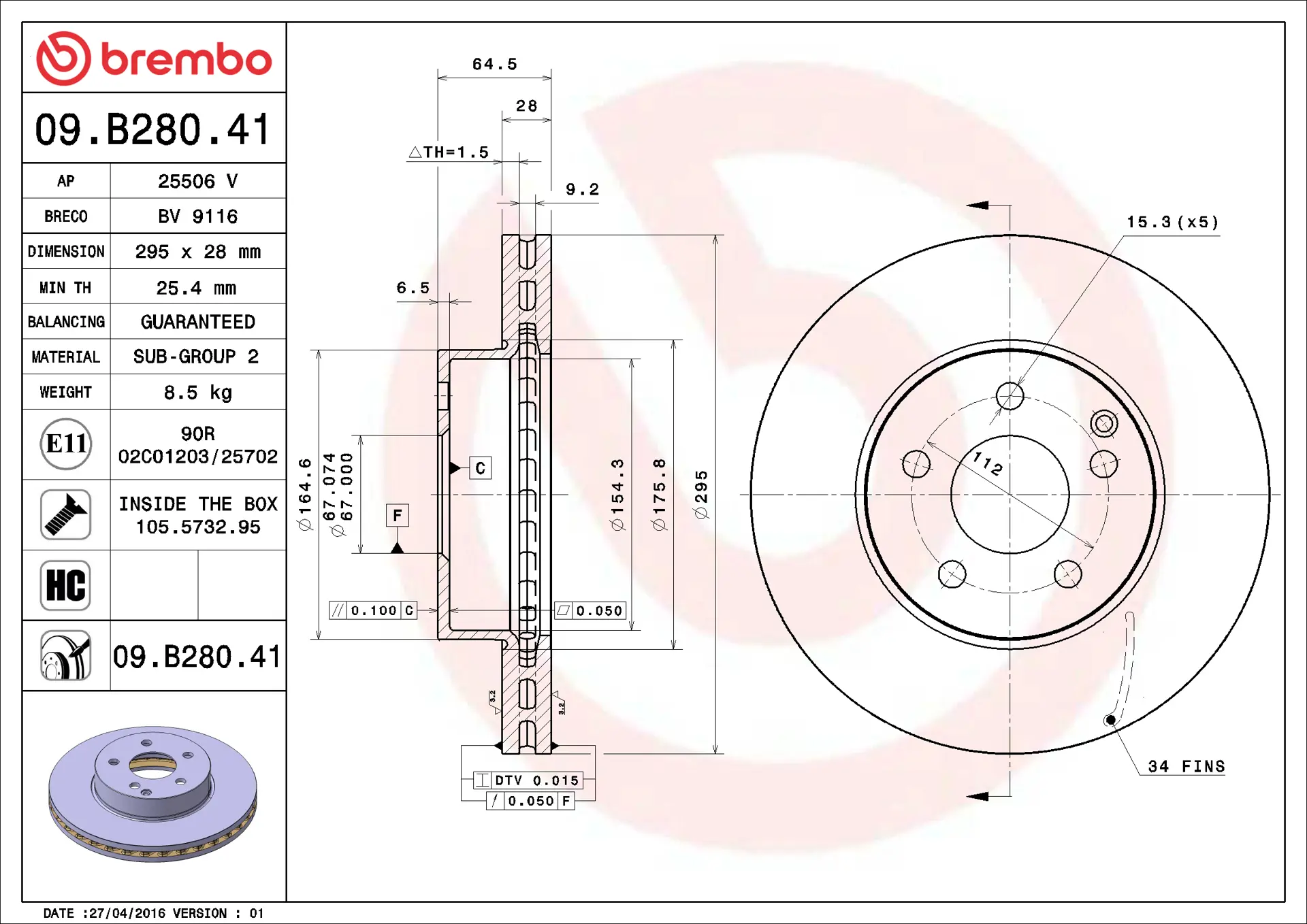

Disc technical data
Axle
Front
Diameter
295 mm
Overall height (A)
64,5 mm
Centring diameter (B)
67 mm
Number of holes (C)
5
Thickness (TH)
28 mm
Minimum thickness
25,4 mm
Tightening torque
130 Nm
Unit per box
2
EANCode
8020584219843
Discs
Brand part numbers
Brembo 09.B280.41
AP 25506 V
Breco BV 9116
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more
Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
UV Disc
The UV coating process provides a superior corrosion resistance and full disc protection.
Find out more
Compatible vehicles

MERCEDES-BENZ

OE Part number
Compatible OE codes
MERCEDES-BENZ 2044210712
MERCEDES-BENZ 2044211612
MERCEDES-BENZ 2044212412
MERCEDES-BENZ 2044212512
MERCEDES-BENZ 2124211212
MERCEDES-BENZ 2124211312
MERCEDES-BENZ A2044210712
MERCEDES-BENZ A2044211612
MERCEDES-BENZ A2044212412
MERCEDES-BENZ A2044212512
MERCEDES-BENZ A2124211212
MERCEDES-BENZ A2124211312
