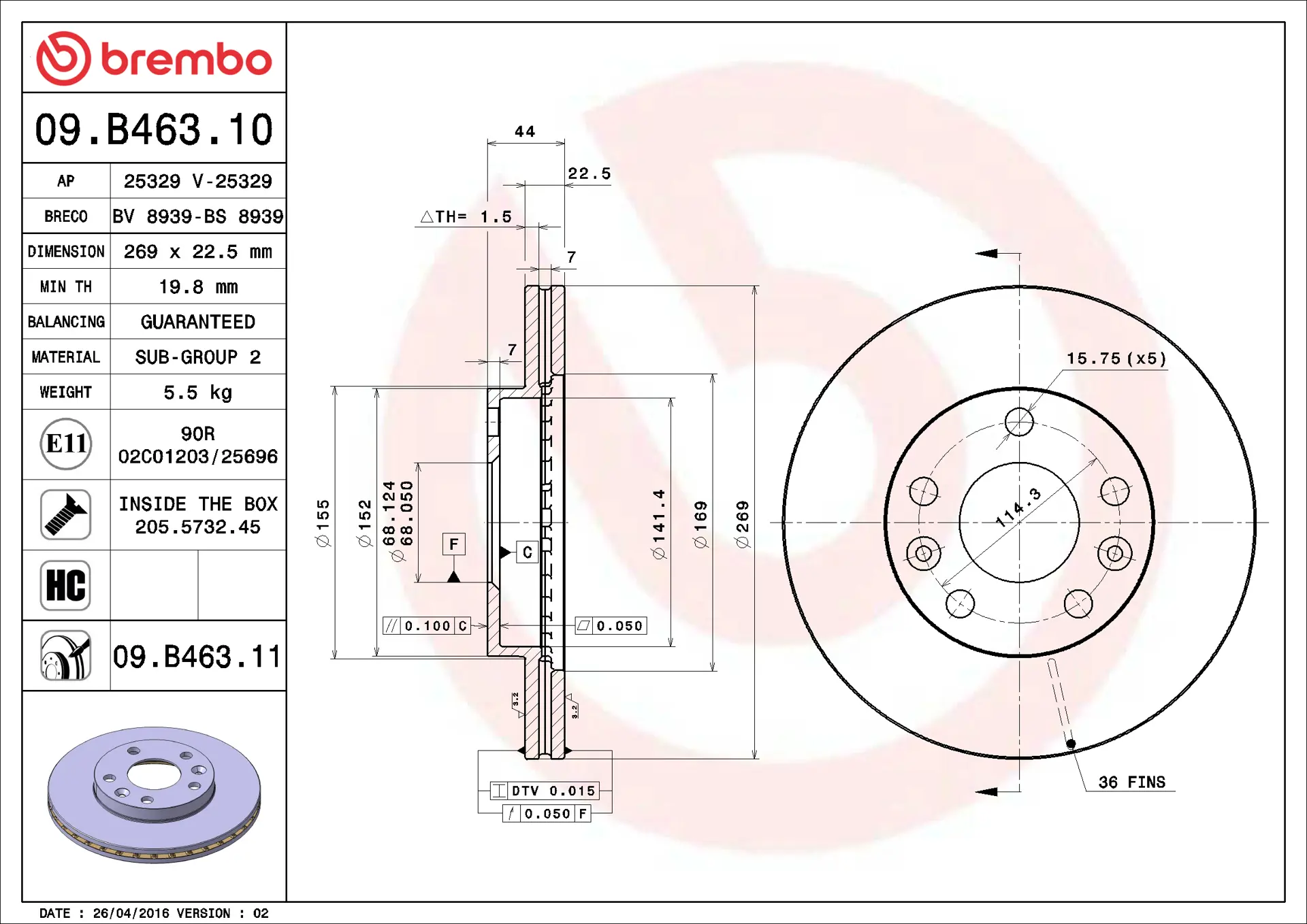

Disc technical data
Diameter (Diameter)
269 mm
Overall height (A)
44 mm
Centring diameter (B)
68 mm
Number of holes (C)
Thickness (TH)
22,5 mm
Minimum thickness
19,8 mm
Tightening torque
120 Nm
Unit per box
Brand part numbers
Brembo 09.B463.10
AP 25329
Breco BS 8939
Technical specifications
High Carbon disc (HC)
Thanks to the high percentage of carbon in the chemical composition of the cast iron, the HC disc provides greater damping coefficient, able to reduce vibration and noise while driving.
Find out more

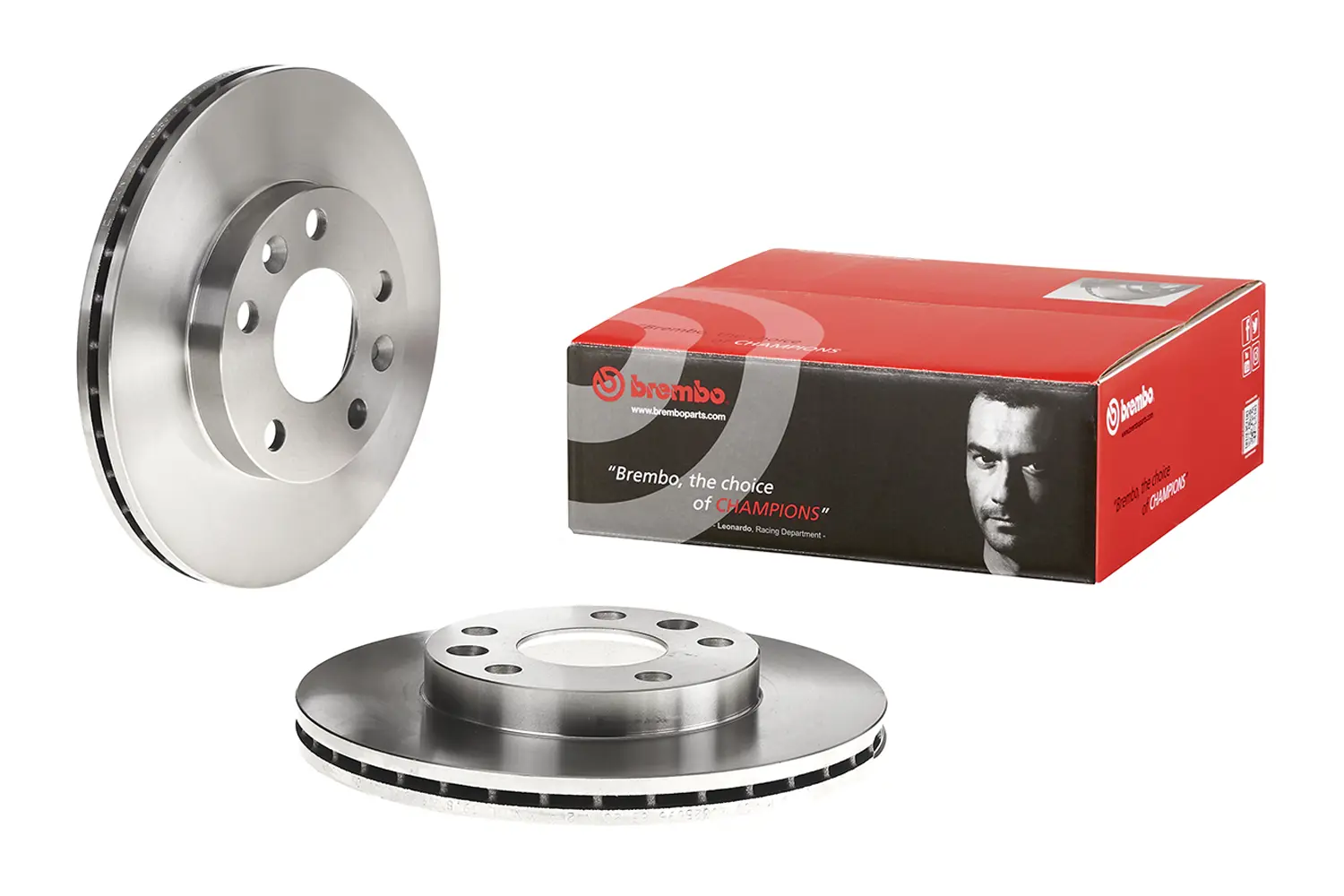

Disc with fixing screw
By supplying the fixing screw in the disc box, Brembo provides extra help to the mechanic if the original screw is rusty or worn to such an extent as to prevent or make it difficult to reuse.
OE Part number
Compatible OE codes
DACIA 402066300R
NISSAN 4020600Q0M
NISSAN 4020600Q1A
NISSAN 402066300R
RENAULT 402066300R
